Metal Sheet Systems Co., Ltd.
Most recent update: 2023-05-17
Manufacturer and distributor of spiral pipes, round pipes, seam along the length, welded pipes
PR message

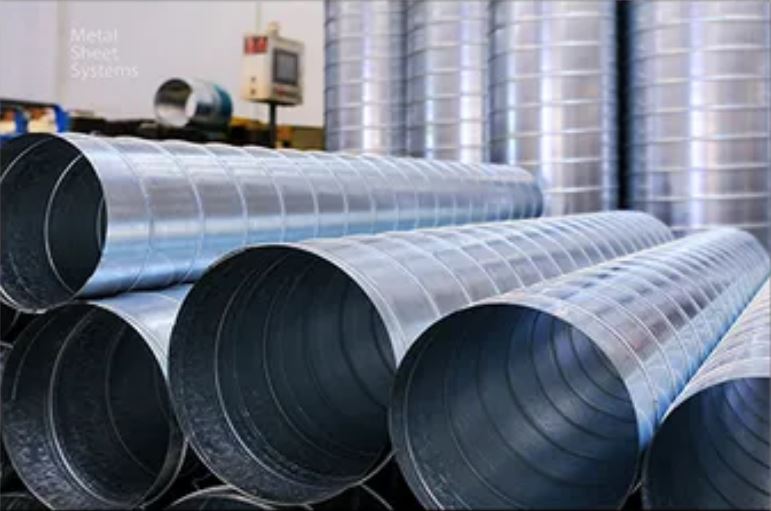

Manufactures and sells round air ducts in the form of Spiral duct, Stitch weld duct, Longitudinal seam duct, Weld duct, including square pipe, material, galvanized, stainless steel and iron
Screwed flanged pipes are round pipes with threaded connections that enhance their strength. They are manufactured using either galvanized steel or stainless steel 304. The pipe sizes range from 80mm to 1300mm in diameter, with lengths of 3 meters and 2 meters per section. The material thickness varies from 0.55mm to 1.00mm. The pipe joints can be either screwed connections or flange connections, including both circular flanges and square flanges.
Stitch weld duct (overlap welding) is a type of round spiral duct that is formed by overlapping wide material and continuously welded along its length using bronze wire. Sometimes, this type of duct is also referred to as seamless duct. The distinctive features of stitch weld duct are its aesthetically pleasing weld lines, airtightness, and sufficient strength to be used for dust extraction and material suction applications. It reduces the accumulation of debris inside the duct, especially when used in conjunction with a ring V clamp, which helps to save costs by reducing the need for nuts, bolts, and being lighter in weight compared to flange installation. The inner diameter size of stitch weld duct ranges from 80 mm to 1300 mm. The materials used for its production include galvanized steel, grade 304 2B stainless steel, and grade 430 stainless steel. The thickness ranges from 0.5 mm to 1.2 mm. In particular, stainless steel ducts can serve as alternatives to TIG welding.
MIG TIG welding pipes have a minimum inner diameter size of 100 mm. The materials used to manufacture these welding pipes include both steel and stainless steel. The thickness of the welding pipes ranges from 1.2 mm to 3 mm. The connection system can be done using rings, flanges, or welding. These pipes are used as round air pipes in industrial factories that require high-pressure air.
| Company name | Metal Sheet Systems Co., Ltd. | Website URL | https://www.roundduct.com/ |
|---|---|---|---|
| Street address |
162 Moo 4, Wai Neaw Subdistrict, Tha Maka District Kanchanaburi Kingdom of Thailand
[See map] |
Person in charge | Sirinut Jantrapron |
| Telephone number | +66-824524293 | Fax number | +66-34-694194 |
| Capital | 4,000,000 THB | Employees | Unregister |
| Annual sales | Unregister | EMIDAS Member Number | 100441 |
| Type of manufacturing | Construction material | ||
| Main 3 products |
|
||
