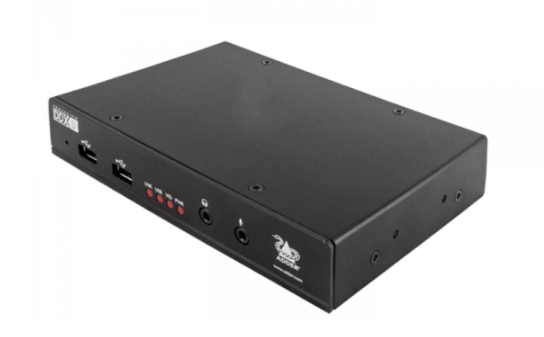

DDX USR｜USB KVM Extender Supporting up to 50m

■ Overview and Value

The “DDX USR” is a KVM extender dedicated to USB HID devices. It allows you to place your computer in a secure, temperature-controlled location while delivering real-time, high-definition video to a user console up to 50 meters away via a single CATx cable. It creates a seamless "at-the-desktop" experience.

■ Key Specifications and Features
・ Max resolution: 1920×1200\@60Hz (includes 1080p)
・ Supports USB HID devices: keyboards, mice, and Windows-compatible touchscreens
・ USB-powered (no external power supply needed)
・ Audio I/O support (headphones, mic, line-out)
・ EDID management and plug-and-play enabled
・ Compatible with DDX-CAM modules (DVI/DisplayPort/VGA)

■ Features and Differentiation
・ Uncompressed video technology: Delivers pixel-perfect video with ultra-low latency
・ ZeroU footprint: Compact CAM module consumes no rack space
・ Scalable structure: Expandable with DDX switch to support multi-PC and multi-user
・ Flexible installation: USB-powered with no need for external PSU

■ Supported Industries and Applications
・ Finance / Trading rooms: Host PCs in secure control rooms
・ Broadcast / Editing studios: Real-time, high-resolution video operation
・ Manufacturing control rooms: Safe operator access from remote terminals
・ Medical / OR environments: Reliable video device control in sensitive areas

■ Technical Specifications
・ Video input: DVI-D (DisplayPort Dual-Mode compliant)
・ USB ports: Type-A x 4 (HID only)
・ Audio: 3 x 3.5mm jacks (headphones, mic, line-out)
・ Operating temperature: 0–40℃
・ Dimensions / weight: 170×31×120mm / approx. 0.6kg

■ Installation Requirements
・ CATx cable must be SFTP type (Recommended: Daetwyler 7702 / 7120)
・ Max extension: 50m (reduce 5m per patch connection)
・ HID devices only (USB drives, printers not supported)

■ Why Choose DDX USR
・ Uncompromised high-resolution video transmission
・ USB-powered for flexible deployment
・ Expandable with DDX switch for future scalability
・ Combines security, operability, and performance in one unit
