Your partner to solve problems with soldering. Ultrasonic soldering Introduction to our solutions for ultrasonic soldering (products and technology), including Cerasolzer and other specifically designed soldering products.
<Introduction>
Sunbonder is your best choice for flux free, high quality ultrasonic soldering.
In the past, flux and heating were the typical methods to be used for soldering, but Sunbonder introduces a new type of soldering, based on heat and ultrasonic vibrations. The induced cavitation effect replaces usage of flux as well as the cleaning process, since there's no exhaust fumes and pollution.
By combining this device with Cerasolzer, the customer can solder on almost of all the materials, for example glass, ceramics, aluminum, molybdenum etc., except for organic substances.
<Characteristics>
■User-friendly interface
■By combining Sunbonder with Cerasolzer, the customer can solder directly on glass/ceramics/low-solderability materials
■Small, compact design enables easy changes of working station.
■Suitable for use abroad, with AC ranging from 100V to 240V.
■CE mark compatible.
For more information, please visit our website.
We would like to introduce some of our ultrasonic soldering machines.
”ACSS-H” is a device which has jet-flow ultrasonic soldering tank with ultrasonic vibrations applied from the side, horizontally.
"Sunbonder" is a compact device which applies ultrasonic vibration directly to its' tip of the iron.
We are sure that our extensive products will satisfy your needs.
Please visit our website for more information.
【Product line up】
■Special solder CERASOLZER
■ACSS-H
■ACSS-KV
■KDB-100
■Sunbonder
【Application】
＜ACSS-H＞
■Electrode lead soldering
■Preliminal soldering
■Electric link, mechanical adhesion and sealing etc.
Cerasolzer (Cerasolzer Eco) is the world's first product enabling soldering to glass.
It enables bonding to low-solderability materials, such as glass, ceramic substrates,
aluminum, tungsten, molybdenum and titanium.
No need for any pre-treatment to the substrate surface, ultrasonic soldering uses cavitation phenomenom instead of chemical agent (flux).
We provide both Cerasolzer Eco (Pb-free) and a Cerasolzer (Pb-based).
Please visit our website for more information.
Ceraribbon is a flat copper strip coated with Cerasolzer, used mainly for creating solar cells electrodes.
<Application>
-molybdenum, silver, aluminum and other metal substrates
-Transparent electroconductive layer (ITO, ZnO etc.)
Ultrasonic soldering iron "Sunbonder" and special solder "Cerasolzer" enables bonding to low-solderability materials such as below.
【Glass】
• Soda lime glass
• Borosilicate glass
• Quartz glass
• Lead glass
• Synthetic quartz glass
• Optical glass
• Crystallized glass
• Frosted glass
【Ceramics】
• Alumina
• Zirconia
• Silica
• Titania
• Beryllia
• Magnesia
• Mullite
• Cordierite
• Forsterite
• Enamel
• Mica
• Ceramics
• Magnetic material
• Dielectric material
• Resistant material
• Heating material
• Ultrahard material
• Heat resisting material
• Conductive printing paste（Ag,Cu paste）
• Conductive glass（SnO2,In2O3）
• Conductive film（indium, molybdenum,zinc）
• Optical fiber
• Jewel
【Metals】
• Silicon（Si）
• Germanium（Ge）
• Aluminum（Al）
• Titanium（Ti）
• Tantalum（Ta）
• Niobium（Nb）
• Tungsten（W）
• Molybdenum（Mo）
• Ruthenium（Ru）
• Zirconium（Zr）
• Beryllium（Be）
• Chromium（Cr）
• Gold（Au）
• Silver（Ag）
• Copper（Cu）
• Nickel（Ni）
• Zinc（Zn）
• Lead（Pb）
• Tin（Sn）
• Stainless Steel
• Kovar
• Inconel
• Nichrome
• Aluminum Alloy
• Copper Alloy
• Nickel Alloy
• Titanium Alloy
• Sintered metal
• Magnetic metal
• Semiconductor material
• Carbon fiber

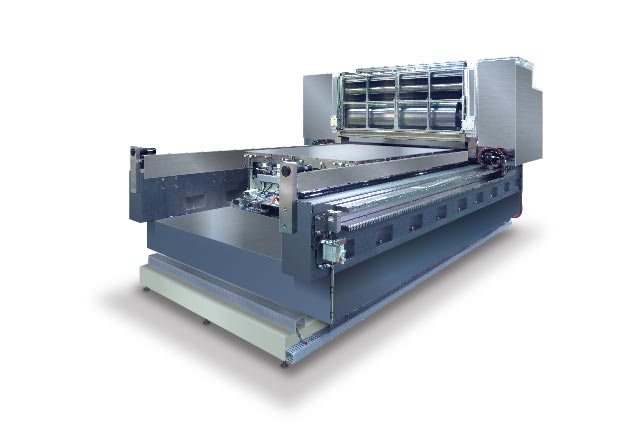

Ultra thin line printable, minimum line width 3μm, a demonstration machine is in our our factory.
Capable of printing mesh pattern of touch sensor or wiring pattern using metal inks like silver paste, silver nanoink, copper paste, etc.
Used in production line of on-board touch sensor.
【Characteristics】
■Improved printing accuracy with advanced drive, control and mechanical systems.
■Plate replacement time reduced by using electroforming plate.
■Automatic cleaning system adopted to extend service life of blanket.
■Operation streamlined to reduce throughput.
■Customizable for your requirement, a wide variety of options are available.
【Specification】
■Conveyance mechanism： Sheet conveyance(capable of roll-to-roll conveyance)
■Applicable base material： Glass/plastic sheet
■Applicable base material size： 300×300mm～Customizable to suit the application)
■Applicable paste Metal system, insulating system, etc.
【Typical usage】
■Peripheral electrode
■Bridge electrode
■Touch sensor(10μm or less)
■Organic insulating film
※If you are interested in this product, you can perform a print sample test before purchasing the machine.

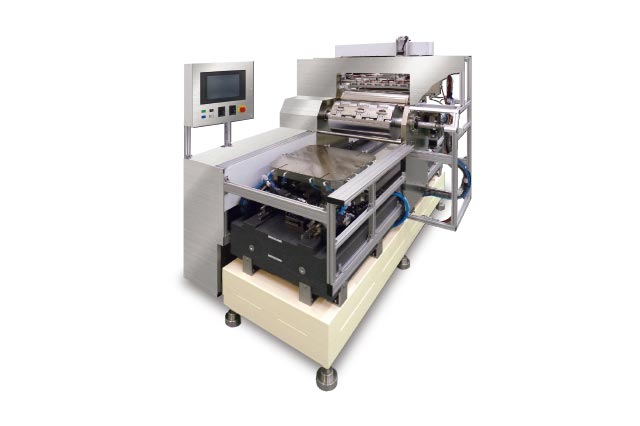

LTPS flexographic printing lab designed for high productivity and precision
Mainly used for printing alignment films of liquid crystal panels and insulating films of touch sensors.
Also capable of printing various materials like metal ink or adhesive.
Customizable for your requirement.
【Specification】
■Conveyance mechanism：
Sheet conveyance(capable of roll-to-roll conveyance)
■Applicable base material：
Glass/plastic sheet
■Applicable base material size：
300x300mm～(Customizable to suit the application)
■Applicable ink：
UV type, water-based, organic solvent type, etc.
■Printing plate：
Manufactured by Komura-tech
【Typical usage】
■Printing alignment film of Liquid crystal panel.
■Printing insulating film of touch sensor

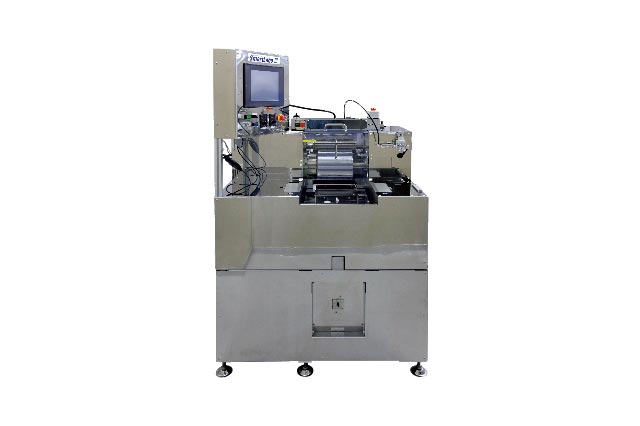

Small printing machine convenient for developing prototype and reviewing materials, also capable of small lot production.
Usable in two printing methods, gravure offset and flexographic printing by changing roller.
【Specification】
■Outer dimension and weight W950×D850×H1680(mm), approx. 450kg
■Applicable base material Glass/plastic sheet
■Applicable base material size Maximum 150x150mm
■Applicable ink UV type, water-based, organic solvent type inks, etc.
*Customizable for your requirement
･Base material size change
･Base material alignment system…etc.
【Application】
■Ink development
■Device development
 |
