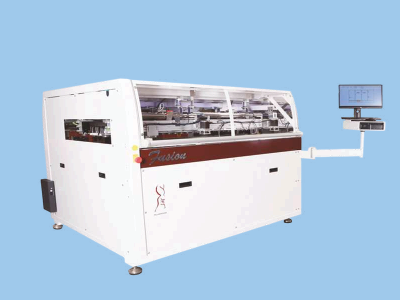

Fusion 3 Compact – Precision Selective Soldering with Drop Jet Tech for Less Waste

Fusion 3 Compact is a 3-cell selective soldering system equipped with Drop Jet and Ultrasonic fluxing, infrared preheat, and multiple nozzle options. Ideal for precise, efficient, and flexible electronics production lines.


The Fusion 3 Compact is a flexible and modular selective soldering system with a 3-cell configuration. Each cell can be independently configured for fluxing, preheating, or soldering based on production requirements. It is designed for PCBs with mixed technology (SMD and Through-Hole) and is especially suitable for boards that cannot be wave soldered due to layout constraints.


■ Key Features

- Modular 3-cell configuration adaptable to different processes
- Drop Jet fluxing system reduces flux usage by up to 95%
- Optional Ultrasonic fluxer minimizes residue and prevents clogging
- Infrared preheat system supports both top and bottom side heating (selectable per cell)
- Supports multiple soldering nozzles: AP, Jet Tip, Micro Nozzle
- Fully automated with options such as Auto-Nozzle Tinning, Closed-loop Inertion, and automatic Solder Feeder
- Easy-to-use PillarCOMM software with Point & Click interface and real-time XYZ calibration


■ Specifications (Fusion 3 Compact)

- Machine Dimensions: W 2193 × D 1520 × H 1390 mm (excluding light stack)
- Max PCB Size: 381 × 460 mm (15" × 18")
- Cells: 3 configurable cells (e.g., Drop Jet + Preheat + Nozzle per cell)
- Fluxing: Drop Jet (Standard), Ultrasonic (Optional)
- Preheat: Infrared Top Side (Standard), Bottom Side (Optional)
- Soldering Nozzles: AP Nozzle (Standard), Jet Tip, Micro, others (Optional)
- Control Software: PillarCOMM – Point & Click GUI, barcode support, fiducial correction
- Solder Feeder: Automatic with dual-pot support and real-time level monitoring


■ Applications

- Mixed-technology PCBs (SMD + THT)
- Compact layouts requiring pinpoint accuracy
- High-reliability soldering with controlled flux and temperature
- Flexible production lines with frequent changeovers


■ Target Industries

- Automotive electronics (EVs, ADAS)
- Medical device manufacturing
- Aerospace and defense electronics
- EMS / OEM electronics factories
- Telecommunications and smart devices


Fusion 3 Compact delivers a precise, modular, and flexible soldering solution for modern electronics manufacturing environments—optimizing quality while reducing process waste.
