UEDA MACHINE TOOLS (THAILAND) CO., LTD.
Most recent update: 2025-02-18
PR message
We are general trading and coordinator in the field of machine tools and related software. We offer a wide range of products, including machine tools, industrial machinery, eco-friendly products, and measuring instruments, to support high-efficiency manufacturing.
The Profile Grinder Model SPG-X sets a new standard in grinding technology, designed by WAIDA MFG. Co., Ltd. and imported by UEDA MACHINE TOOLS (THAILAND) CO., LTD. to meet the diverse needs of customers in the mold manufacturing and precision component industries.
■ Features
- Robust Structure with Enhanced Usability: Compact design reduces installation space by 18% compared to the previous model.
- High-Quality Projection System: The projector, manufactured in WAIDA's factory under strict quality control, ensures clear and precise imaging.
- New LED Light Source: Provides 1.5 times more brightness than halogen lamps, minimizing errors caused by temperature fluctuations.
- Supports Various Options: Includes accessories such as a vertical alignment device and a cylindrical grinding attachment to accommodate complex grinding tasks.
■ Specifications
- Supported Materials: Carbide, tool steel, cermet, ceramic, CBN, high-speed steel.
- Vertical Stroke Range:
Linear Motor Type: 160 mm
Reciprocating Link Type: 110 mm
- Illumination System: LED Transmitted Illumination
■ Applications
- Ideal for precision mold grinding, including punches & dies, special cutting tools, and cylindrical parts.
- Compatible with various materials, such as carbide, tool steel, cermet, ceramic, CBN, and high-speed steel.
- Designed for ease of operation, ensuring both in-machine and off-machine tasks can be performed efficiently.
If you are looking for a high-precision Profile Grinder that supports long-term operation, UEDA MACHINE TOOLS (THAILAND) CO., LTD. is ready to assist you.

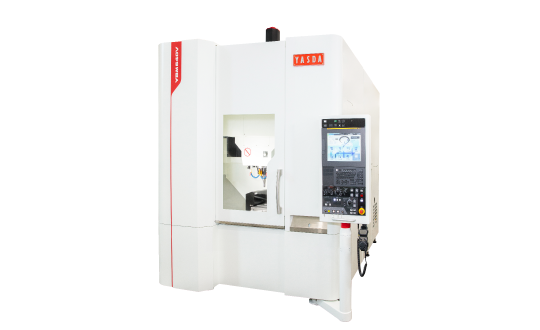

The CNC JIGBORER Model YBM 640V Ver.Ⅴ is a high-precision machine designed by YASDA PRECISION TOOLS K.K. and imported/distributed by UEDA MACHINE TOOLS (THAILAND) CO., LTD., a leading trading company providing industrial machinery solutions in Thailand.
■ Features
- Robust Structure: The machine is designed with high stability to minimize vibrations during operation.
- Thermal Stability Technology: Reduces the impact of temperature fluctuations, ensuring sustained cutting precision.
- High-Speed Spindle: Supports spindle speeds from 100 to 24,000 min⁻¹, with an optional upgrade to 30,000 min⁻¹.
- FANUC 31i-B5 Plus Control System: Advanced NC system for precise axis movement control.
- Expandable Options: Additional features such as a one-axis rotary table and an automatic tool changer system are available.
■ Specifications
- Travel Distance (X/Y/Z): 600/400/350 mm
- Spindle Type: MAS BT40 (Optional: HSK-A63, MAS BT30)
- Spindle Speed: 100-24,000 min⁻¹ (Optional: 150-30,000 min⁻¹)
- ATC (Automatic Tool Changer): 30 tools (Optional: 40/60/90/100 tools)
- Rotary Table (Optional): Diameter 200 mm, Load Capacity 40 kg
- Machine Height: 3,100 mm
■ Applications
- Ideal for high-precision hole drilling in industries such as mold and tool manufacturing.
- Used for producing components requiring minimal tolerance, such as aerospace and automotive parts.
- Capable of continuous operation without compromising workpiece quality.
- Compatible with automation systems, including robotic workpiece handling, to enhance production efficiency.
If you are looking for a high-precision CNC JIGBORER that supports long-term operations, UEDA MACHINE TOOLS (THAILAND) CO., LTD. is ready to serve you.
| Company name | UEDA MACHINE TOOLS (THAILAND) CO., LTD. | Website URL | https://www.um-system.jp/english/ |
|---|---|---|---|
| Street address |
Amphur Klong Luang Pathum Thani Kingdom of Thailand
[See map] |
Person in charge | NCネットワークタイデモアカウント |
| Telephone number | Log in to display | Fax number | Log in to display |
| Capital | 3,000,000 THB | Employees | Unregister |
| Annual sales | Unregister | EMIDAS Member Number | 105828 |
| Main 3 products |
|
||
