LMS TECHNOLOGIES VIETNAM COMPANY LIMITED
Most recent update: 2025-07-08
PR message
Exclusive representative of the world's leading brands in the field of scientific equipment, including SHIMADZU, THERMO FISHER, NETZSCH, INNOVATEST, OCS, DATAPHYSICS,... LMS is committed to bringing world-class technology with a diverse product portfolio and consulting services.
1. Data acquisition speed and control
AGX-V2: Uses an ultra-fast 10 kHz (10,000 samples per second) data sampling rate and an ultra-fast 1 kHz head control. This is achieved through multiple processors and controllers, allowing it to capture even the smallest and most abrupt changes in the sample, such as the precise breaking point of brittle materials. This level of speed is critical for accurately characterizing dynamic material behavior.
2. Accuracy and reliability
AGX-V2: Boasts an extended guaranteed test force accuracy range of 1/2000 for a single force cell (compared to 1/1000 or 1/500 for some others). This means that a single force cell can reliably cover a much wider range of test forces, reducing the need for frequent force cell replacement and calibration. It also ensures simultaneous sampling on all channels (force sensor, extensometer, external input), improving the accuracy and reliability of calculated values such as elastic modulus.
3. Automation and user-friendliness
AGX-V2: Integrates several features to enhance operability and reduce manual tasks:
Multi-Joint Feature: Simplifies clamping changes, allowing quick and easy connection of different types of clamping (tension, compression, bending) without replacing heavy joints.
Smart Controller/Operation Controller: Features a color LCD touchscreen for direct machine operation and setup, often eliminating the need for a separate PC for basic tests.
Voice Operation (XV-Talk™): A unique feature that allows the operator to control the machine with key voice commands (e.g., “Start Test,” “Return”), eliminating the need to press buttons frequently and enhancing safety.
Autotuning Feature: Provides precise strain control, even in noisy or interrupted conditions, where conventional autotuning is difficult.
4. Safety Features
AGX-V2: Prioritizes operator and machine safety with advanced features such as:
Highly impact-resistant, transparent safety cover with interlock functions to prevent testing if the cover is open.
Intelligent Crosshead: Recognizes its position and prevents clamp collisions by providing warnings and automatically stopping movement if the clamps are too close together.
Overload Detection Function: Automatically stops the machine head if the test force exceeds the capacity of the force sensor, reducing the risk of damage.
Self-Diagnostic Function: Continuously monitors the machine status, sensor calibration, power supply and communication, notifying the user of potential problems and assisting in maintenance planning.
5. Frame Stiffness and Straightness
AGX-V2: Features a high-rigidity frame design with a newly designed guide column and support ring that maintain perpendicular alignment to the table surface. This improves measurement repeatability, especially for high-hardness or brittle materials that are sensitive to frame stiffness and straightness.
1. Load Application System: Closed-Loop, Load Cell Technology
Innovatest utilizes load cell technology with a closed-loop force feedback system.
Load Cell: An electronic transducer measures the applied force directly, providing highly accurate and repeatable readings.
Closed-Loop Control: A sophisticated control system continuously monitors the force applied by the load cell and adjusts it in real-time to maintain the exact desired test force throughout the dwell time. This eliminates overshooting or undershooting the target load, which is a common issue with traditional systems.
Benefits: This technology ensures superior accuracy, repeatability, and a much wider range of selectable test forces within a single machine (e.g., Innovatest's NEMESIS 9100 series can offer 200gf up to 3000kgf). It also reduces mechanical complexity, improving reliability and lowering maintenance costs.
2. Optics and Indentation Measurement:
Innovatest incorporates high-resolution digital cameras (e.g., 18 Megapixels, 4K Full HD) with advanced image processing software.
Automatic Indentation Measurement: AI-powered algorithms automatically detect and analyze indentations, providing objective, consistent, and error-free results. This significantly reduces operator influence and increases throughput.
Zoom and Autofocus: High-quality optics with digital zoom and autofocus capabilities allow for precise viewing and measurement without constant objective changes.
Overview Cameras: Some models (like the FALCON 600G2) include an overview camera for easy sample navigation and pattern setup, further streamlining the process.
Depth Measurement: For Rockwell and other depth-measuring methods (HVT, HBT), Innovatest uses high-accuracy depth measuring systems (e.g., transducer accurate to 0.05 micron).
3. Automation and Software Intelligence:
Innovatest: Offers advanced automation features and intelligent software solutions (e.g., IMPRESSIONS™ software):
Motorized Stages & Turrets: Automated X-Y stages and multi-position turrets for indenters and objectives eliminate manual positioning and switching, allowing for fully automated test sequences, including complex patterns (e.g., case hardening depth, weld analysis).
Pre-defined Test Programs: Users can create and store custom test programs for recurring tasks, simplifying setup and ensuring consistency.
Automatic Edge Detection & Contour Scanning: Advanced features allow the system to automatically detect sample edges and scan contours, enabling automated testing relative to the sample's geometry.
Data Management & Reporting: Integrated software provides comprehensive data storage, statistical analysis, conversions between hardness scales, limit settings, and advanced report generation (often Q-DAS certified).
User-Friendly Interface: Touchscreen interfaces and intuitive software reduce the learning curve and enhance operational efficiency.
4. Versatility and Compliance:
Innovatest Universal Testers: Designed to perform a wide range of hardness tests (Rockwell, Superficial Rockwell, Brinell, Vickers, Knoop, HVT, HBT, Ball indentation for plastics) on a single machine, complying with international standards (ISO, ASTM, JIS, NADCAP). This versatility offers significant cost savings on equipment purchase, calibration, and maintenance.
5. Design and Durability:
Innovatest: Emphasizes robust construction, often with features like shock-proof ABS machine covers, high-end aluminum panels, and a focus on long service life. They also offer extended warranties (up to 25 years on some models), highlighting their confidence in product durability
Brand: Shimadzu Origin: Japan
Standard System consist of:
- Xslicer SMX-1020 main unit included
+ Microfocus X-ray unit
+ Flat Panel Detector
+ English Instruction Manual
- Local purchase
+ DELL model, windown 10 or 11 Pro 64bit licence
- Feature:
+ The Xslicer SMX-1010/1020 is a vertical emission X-ray system equipped with 90 kV microfocus X-ray generator and a high resolution flat panel detector (Xslicer SMX-1010 is 1.5 times SMX 1000plus) . Image quality has been significantly improved over the previous model (SMX-1000 Plus), and Shimadzu’ s renowned operability has advanced even further."
+ In addition to operability improvements, the stage movement speed and detector acquisition speed have also increased, significantly shortening inspection times. The inspection process is now more efficient
+ The workflow has also been simplified for the CT unit (optionally available), and operability has been improved
+ With the Xslicer SMX-1010/1020, everything from X-ray fluoroscopic inspections of surface mounted circuit boards, sensors, and harnesses to 3D defect analysis using CT can be accomplished with a single unit.
- System Specification:
+ Spatial Resolution: Equivalent to 5μm on the JIMA RT RC-05 micro chart (theoretical value). (Min. 0.1 modulation transfer function (MTF) for 7μm on the JIMA RT RC-05 micro chart on a carbon plate
+ Maximum Sample Size: 350 mm × 450 mm, 100 mm height max
+ Fluoroscopic Inspection Stroke: Tilt 60o
+ Maximum Sample Weight: 5kg
+ Maximum Output: 90kV
+ Detector: Size of Light Receiving surface: 114 mm x 64 mm. Approximately 3.0 million pixels
+ Fluoroscopy FOV (on Carbon Plate): 2.2 mm (vertical) x 3.8 mm (horizonal) to 42 mm (vertical) x 76 mm (horizonal)
+ Power Supply: 100 V AC to 240 VAC ± 10% 50/60Hz, 0.5 kVA
+ Dimensions: W1100 × D1075 × H1345 mm
+ Weight: Approx. 700 kg
Manufacturer: Netzsch-Germany
Origin: Germany
consisting of:

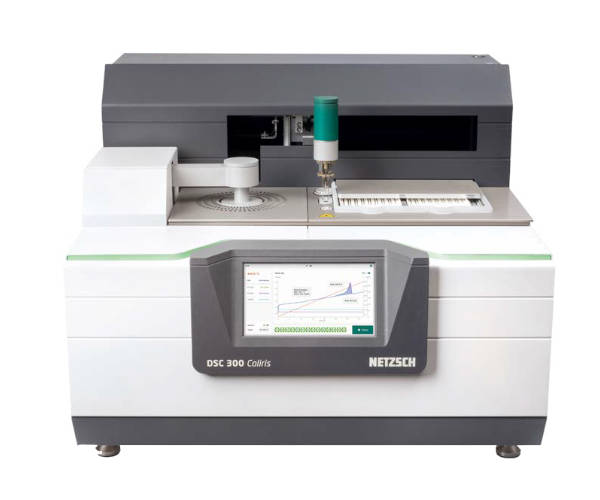

DSC 300 Caliris Classic equipped with:
-DSC measuring cell (gas tight) according to the heat flux principle (according to DIN 51005, ISO11357, ASTM E473 and other international standards) consisting of a silver furnace with DSC sensor of type E, temperature sensors type E for furnace control and sample temperature.
Connection for purge gas flow to the sample for 2 gas types as well as for one protective gas. Prepared for liquid nitrogen (LN2) and forced air cooling systems as well as for Intracooler.
Sample temperature range: -170 ... RT ... 600°C (depending on the used cooling system).
Heating rate: 0.001 ... 100 K/min
- Colored LED status bar with clear indication of the instrument status and measurement progress
Table-top model, w/o safety cover

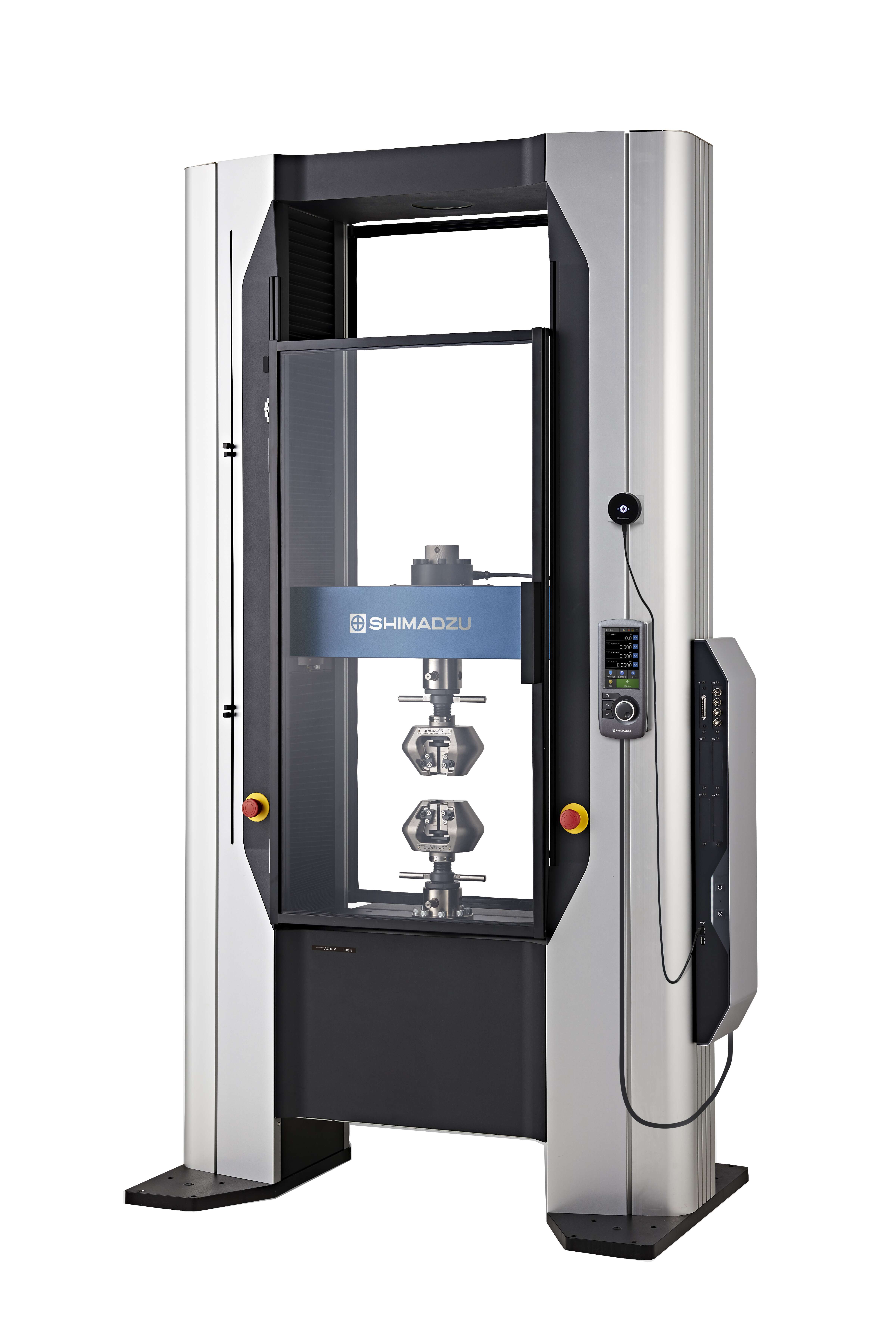

Include TrapeziumX-V Single Software & Voice Operation Device
Specifications:
Direct loading method with constant speed control at high precision through ball screw drive mechanism for enhanced accuracy
Load Measurement Accuracy: Within ± 1.0% of Indicated Test Force
Measuring Range: From 1/500 to 1/1 of the load cell rated capacity
Test Force Calibration: Automatic Calibration System
Crosshead Speed: 0.0005 to 1500 mm/min
Return Speed: 2000 mm/min
Crosshead Speed Accuracy: ±0.1 %
Crosshead Speed and Permitted Test Force: Up to the maximum load capacity for all speed ranges
Crosshead Measurement: Optical Encoder Type, Digital Display Resolution at 0.001mm.
Position Control Resolution: 8.33nm
Crosshead Position: Within ± 0.05% of Indicated Value or 0.01mm when Indicated Value is below 20 mm
Load Display: LCD ; N, kN, tf, kgf, kN/mm2, Gpa, Mpa, kgf/mm2
Stroke Display: LCD ; mm, cm, %FS, %GL or inches
Sampling Rate: 0.1msec maximum
Frame Rigidity: 180 kN/mm

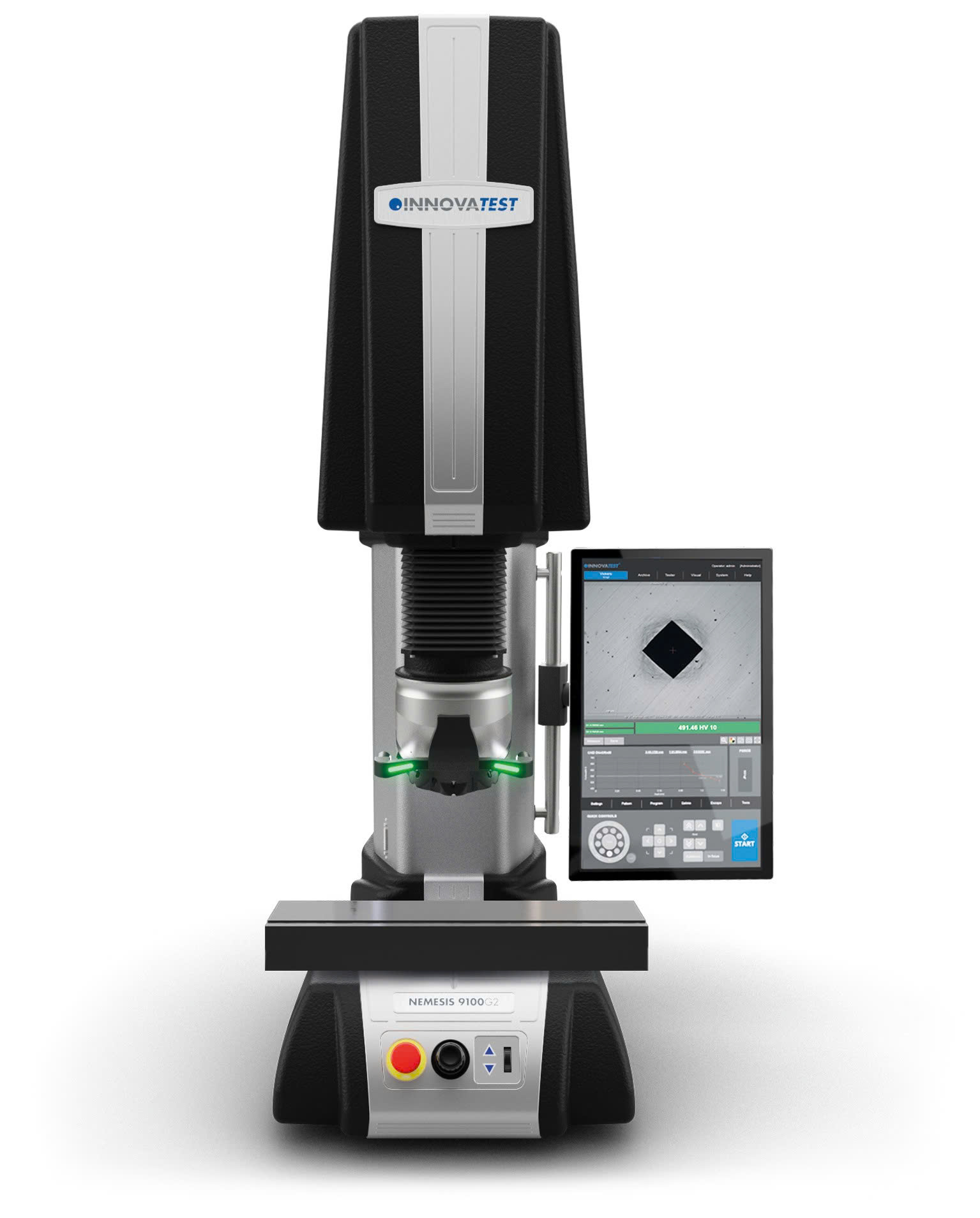

- Multi load cell, closed loop system, custom test force configuration
- Force range from 200gf up to 3000kgf
- Force updrage available also years after first installation
- 9 position tool changer (turret) with visual LED process indicators
- Free to configure 8 objectives, 8 indenters, cross laser, touch probe, optional tools
- 18 megapixel full color measurement camera, bright white LED TTL illumination
- 18 megapixel full color sample image & stage overview camera, anti-glare filter, motorize- d zoom for variable field of view and autofocus at any field of view
- Adjustable & rotatable dual LED workspace illumination
- iSMART™ docking station for CNC X-Y motorized or manual stage solutions
- 7 options for wireless CNC X-Y high precision motorized iSMART™ stages (400kgf up to 4000kgf load)
- Automatic workpiece height detection
- Unique collision detection and test head retraction system
- Integrated or External high performance, MS Windows based i7 system controller
- IMPRESSIONS 4™ workflow and tester control system with 22” (touch)screen
- Artificial Intelligence (AI) for enhanced Brinell readings
- Top quality ABS replaceable body parts, no frame damage from falling objects

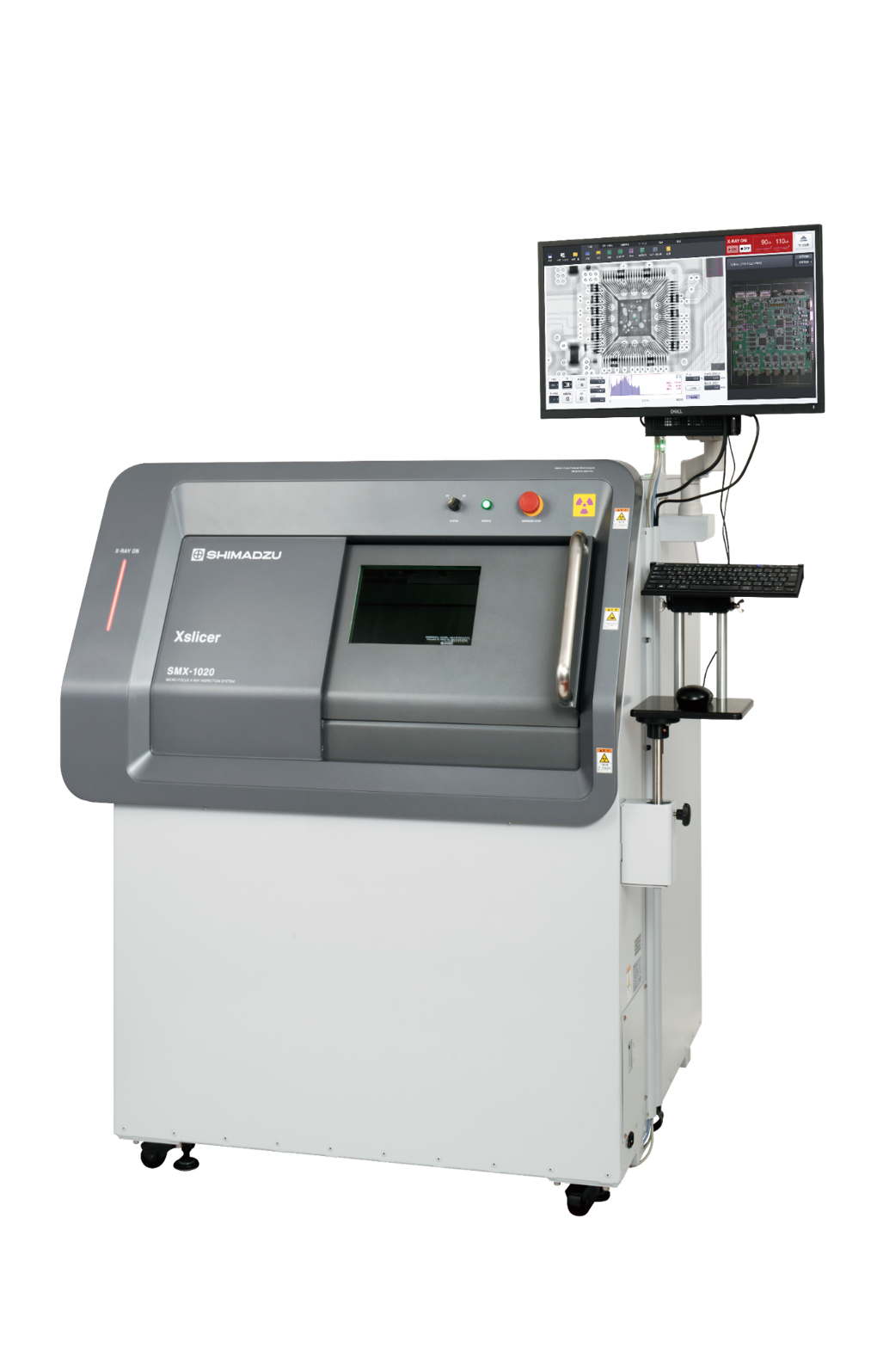

Name: Xslicer SMX-1020
Brand: Shimadzu Origin: Japan
Standard System consist of:
- Xslicer SMX-1020 main unit included
+ Microfocus X-ray unit
+ Flat Panel Detector
+ English Instruction Manual
- Local purchase
+ DELL model, windown 10 or 11 Pro 64bit licence
- Feature:
+ The Xslicer SMX-1010/1020 is a vertical emission X-ray system equipped with 90 kV microfocus X-ray generator and a high resolution flat panel detector (Xslicer SMX-1010 is 1.5 times SMX 1000plus) . Image quality has been significantly improved over the previous model (SMX-1000 Plus), and Shimadzu’ s renowned operability has advanced even further."
+ In addition to operability improvements, the stage movement speed and detector acquisition speed have also increased, significantly shortening inspection times. The inspection process is now more efficient
+ The workflow has also been simplified for the CT unit (optionally available), and operability has been improved
+ With the Xslicer SMX-1010/1020, everything from X-ray fluoroscopic inspections of surface mounted circuit boards, sensors, and harnesses to 3D defect analysis using CT can be accomplished with a single unit.
- System Specification:
+ Spatial Resolution: Equivalent to 5μm on the JIMA RT RC-05 micro chart (theoretical value). (Min. 0.1 modulation transfer function (MTF) for 7μm on the JIMA RT RC-05 micro chart on a carbon plate
+ Maximum Sample Size: 350 mm × 450 mm, 100 mm height max
+ Fluoroscopic Inspection Stroke: Tilt 60o
+ Maximum Sample Weight: 5kg
+ Maximum Output: 90kV
+ Detector: Size of Light Receiving surface: 114 mm x 64 mm. Approximately 3.0 million pixels
+ Fluoroscopy FOV (on Carbon Plate): 2.2 mm (vertical) x 3.8 mm (horizonal) to 42 mm (vertical) x 76 mm (horizonal)
+ Power Supply: 100 V AC to 240 VAC ± 10% 50/60Hz, 0.5 kVA
+ Dimensions: W1100 × D1075 × H1345 mm
+ Weight: Approx. 700 kg

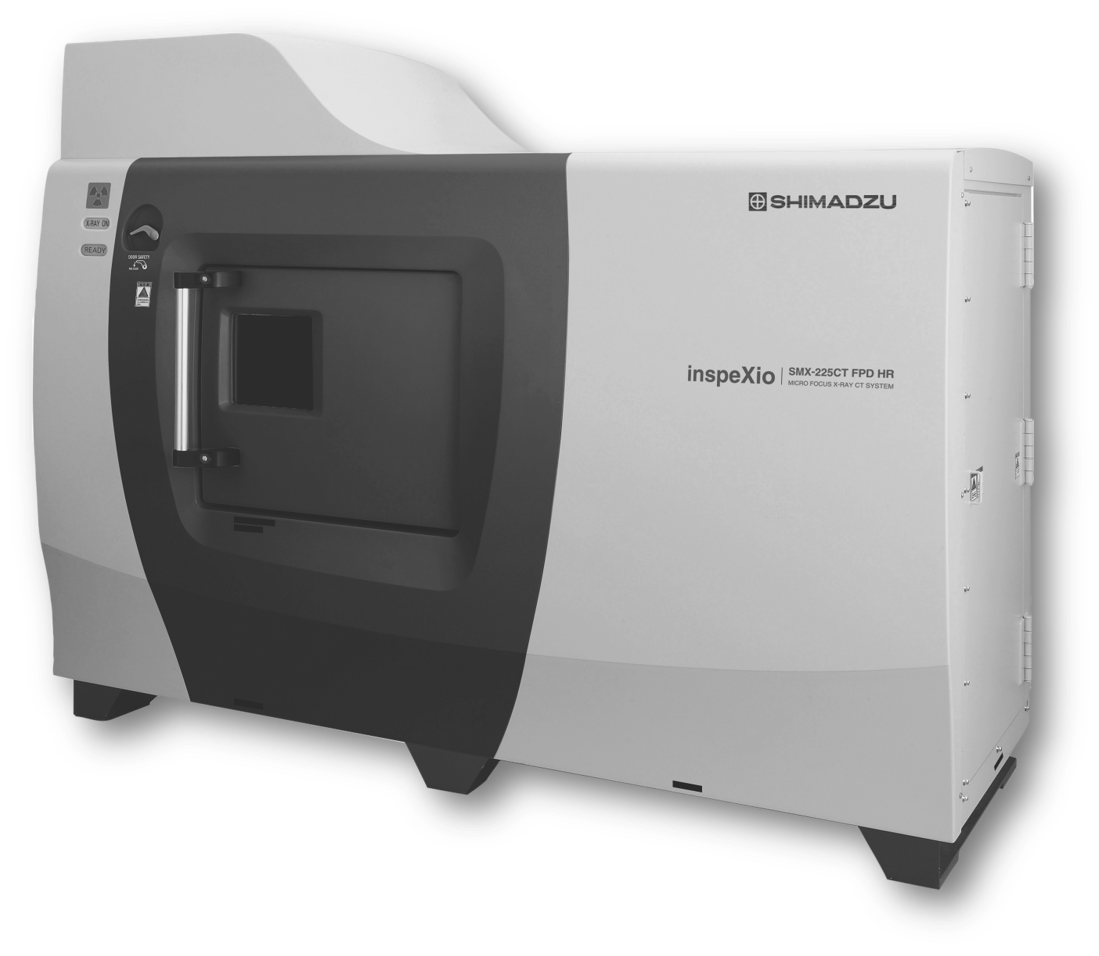

Model: inspeXio SMX-225CT FPD HR PLUS
Origin: SHIMADZU – JAPAN
- X-Ray Generator Rated Power: 135W
- Max. Tube Voltage: 225kV
- Max Tube current: 1000 μA
- X-Ray Detector: Flat panel detector
- X-Ray Detector Size: 16inch
- X-Ray Detector Shades of Gray: 16-bit = 65,536 shades of gray
- Max. Input Resolution (for offset scan): Approx. 14,000,000 pixe
- Max. Sample Size and Weight, and Max. CT-Scan Region
+ Max. sample size
+ Max. CT scan region
+ D x H: 400mm x 300mm
- Max. CT Image Size Two-Dimensional CT: 4,096 ~ 4,096 + Cone-Beam CT: 4,096 ~ 4,096
- High-Performance Computing System: Version: HPC inspeXio ver. 2
+ For 512 ~ 512 pixel CT images: 5 to 10 sec after completing data acquisition
+ For 1,024 ~ 1,024 pixel CT images: 5 to 10 sec after completing data acquisition
- Scan Support Functions
Positioning via an exterior camera: Yes
3D CT Scan Region Display Function: yes
Fully Automatic CT Scanning: Yes
- CT Stage Max. Stroke
+ SRD Axis: 890mm
+ SDD Axis: Switchable between 2 levels (800, 1200)
- CT-Z Axis: 300mm
- Scan Modes: Normal scan, half scan, offset scan, FS scan, 2DCT, CBCT
- CT Data Acquisition Time: Any value from 10 sec to 60 min
- Shield Box Size and Mass: W2,170 ~ D1,350 ~ H1,857 mm, approx. 3,100 kg
- Specialized Desk Size and Mass: W1,200 ~ D700 ~ H1,270 mm, approx. 60 kg
- Power Requirements: Main Units: 200 V AC ±10 %, 50/60 Hz, 3 kVA
- Control Computer: 100 V AC ±10 %, 50/60 Hz, 1.5 kVA
- External Leakage Dose: 1 μSv/h max.
| Company name | LMS TECHNOLOGIES VIETNAM COMPANY LIMITED | Website URL | https://lmstech.com.vn/home/ |
|---|---|---|---|
| Street address |
Tan Binh Ho Chi Minh Socialist Republic of Vietnam
[See map] |
Person in charge | Hoang Bich Ngoc |
| Telephone number | Log in to display | Fax number | Log in to display |
| Capital | 6,703,600,000 VND | Employees | 21 |
| Annual sales | Unregister | EMIDAS Member Number | 106173 |
| Main 3 products |
|
||
| Primary clients |
|
||
