EQUITY SERVICES & SOLUTIONS CO., LTD.
Most recent update: 2025-05-29
PR message
EQUITY SERVICES & SOLUTIONS CO., LTD. is a Thailand-based distributor of industrial diagnostic tools such as vibration analysers, laser alignment systems, and flow meters. With offices in Pathum Thani and Rayong, ESS offers sales, technical support, and training for predictive maintenance across Southeast Asia.

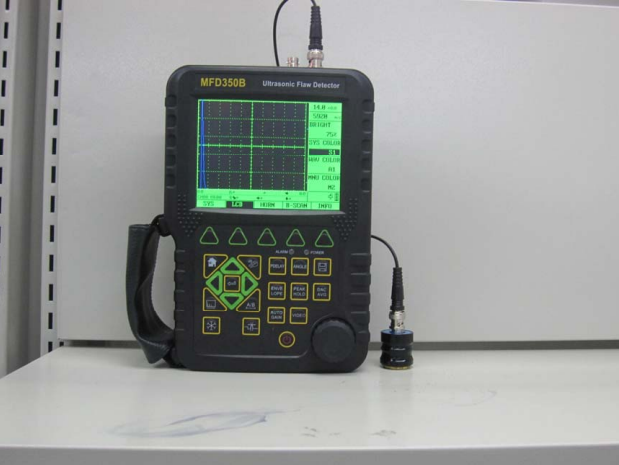

MFD350B is a portable ultrasonic flaw detector supporting DAC, AVG, B-scan, and crack depth measurement. Detect defects up to 6000 mm with real-time data storage and USB transfer.
The MFD350B is a portable ultrasonic flaw detector designed for accurate and reliable non-destructive testing (NDT) based on pulse reflection principles. With user-friendly operation, customizable TFT display, and long battery life (up to 10 hours), it's ideal for on-site inspection across multiple industries.
■ Features
- TFT colour LCD display with customizable brightness and background
- Supports DAC (Distance Amplitude Correction) and AVG (Distance Gain Size)
- Scanning modes include A-Scan, B-Scan, Peak Hold,and Crack Depth Measurement
- Memory: 100 config channels, 1000 data sets with A-scan
- Real-time USB 2.0 data transfer to PC
- Compact and lightweight (1.46 kg) design for single-hand operation
- Audible and visual defect alarms
■ Specifications
- Measuring Range: 0–6000 mm (in steel)
- Frequency Range: 0.5 – 10 MHz
- Material Velocity: 1000 – 9999 m/s
- Sensitivity: ≥ 40dB
- Dimensions: 250 × 170 × 60 mm
- Weight: 1.46 kg (including battery)
- Operation Time: 8–10 hours continuous use
- Operating Temp: -20 to +50°C
- Interface: USB 2.0
■ Applications
- Defect detection in steel, welds, pipes, and pressure vessels
- Quality inspection in manufacturing lines
- Structural inspection in power plants, oil & gas, and construction
- Maintenance of rail, automotive, and aerospace parts
■ Applicable Industries
- Steel & metal fabrication
- Energy & power generation
- Automotive and transportation
- Construction & infrastructure
- Petrochemical and chemical processing
The MFD350B combines advanced flaw detection with portability and ease of use, making it a trusted tool for professionals in non-destructive testing.
Please download the PDF or contact us for more details.

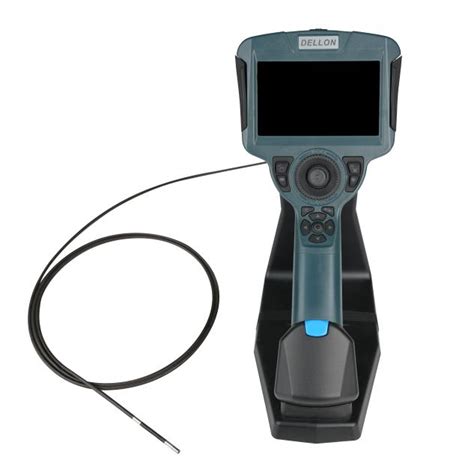

VX Industrial Videoscope offers high-resolution dual-view inspection and 4-way tip articulation, perfect for internal inspections in tight or complex areas.
The VX is a rugged industrial videoscope designed for Remote Visual Inspection (RVI) of machinery and components. With a high-resolution CMOS sensor and tungsten-braided probe, it enables clear internal observation in confined spaces with fast, real-time feedback.
■ Features
- 5-inch Full HD touchscreen with 10x zoom and image enhancement
- Interchangeable probes (2.0mm to 3.9mm) with 4-way articulation and dual-view (0° & 90°)
- Powerful white LED lighting: 6,000 lux (front), 3,000 lux (side)
- IP64-rated durability for industrial environments
■ Specifications
- Probe Diameter: 2.0mm / 2.8mm / 3.9mm
- Tip Articulation: 4 directions, up to 170°±10°
- Field of View: over 120°
- Depth of Field: 5mm – 50mm
- Image Resolution: 700x700 pixels
- Display: 5” touchscreen, 1920x1080 pixels
- Output Ports: SD, HDMI, USB Type-C, mini USB, 3.5mm headphone jack
- Operating Temperature: -20°C to +50°C
■ Applications
- Internal inspection of engines, turbines, and heat exchangers
- Corrosion and crack detection inside pipes and tanks
- Public safety inspections: EOD and rescue operations
- Aerospace, automotive, and energy equipment inspection
■ Applicable Industries
- Aerospace industry
- Power generation
- Automotive manufacturing
- Chemical and petroleum plants
- Safety and rescue authorities
VX is the ideal tool for professionals who demand precise internal inspections in challenging environments.
Please download the PDF or contact us for more details.
V-MER is a smart vibration analyser that automatically evaluates machine conditions based on ISO 10816-3, enabling instant diagnostics even without expert knowledge.
V-MER is an automatic vibration analysis device developed by ESS Power to streamline maintenance tasks. It collects vibration data and performs analysis in just 3 seconds, making it easy to detect anomalies even without specialised knowledge.
■ Features
- Automatic evaluation based on ISO 10816-3
- Collects and analyses data in only 3 seconds
- Predicts the bearing's remaining life
- Detects imbalance and misalignment automatically
- Intuitive colour-coded display for easy understanding
- Compact and portable handheld design
■ Specifications
- Sensor Input: Supports IEPE accelerometer
- Frequency Range: 10 Hz to 10,000 Hz
- Sampling Rate: Up to 25.6 kHz
- Display: 7-inch touchscreen
- Evaluation Method: ISO 10816-3 + proprietary AI algorithm
- Power: Built-in battery (approx. 8 hours of continuous use)
■ Applications
- Maintenance of rotating machinery (motors, pumps, blowers)
- Diagnosis of turbines and generators at power plants
- Early detection of bearing degradation
- Predictive maintenance systems
- Standardised inspection for non-experts
■ Industries Using This Product
- Automotive, electronics, and food manufacturing
- Power generation (thermal, hydro, renewable)
- Petrochemical and chemical plants
- Pulp, paper, and textile factories
- Steel and non-ferrous metal industries
V-MER empowers on-site operators with quick, accurate vibration diagnostics, supporting predictive maintenance without expert personnel.
Please download the PDF or contact us for more information.
