AS & D INDUSTRY CO., LTD.
Most recent update: 2023-02-16
PR message
ASLI Group and AS&D, manufacturers and distributors of quality products in nozzles, air ducts, volume dumpers, and duct equipment, operate and develop continuously to become a global business.

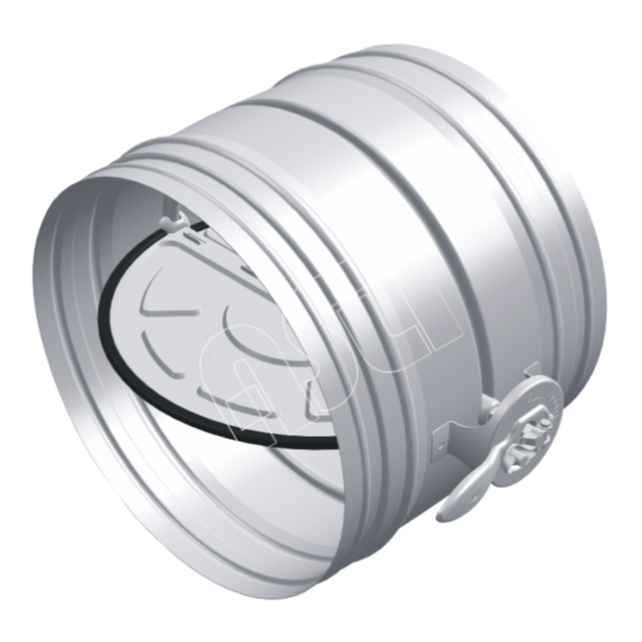

Round flap, special seal, manual version
VOLUME DAMPER, hand control mechanism set
Material : HDRG-T galvanized steel
Surface : HDRG-T galvanized steel
feature
round wind flap Strongly forming pump blades, reinforced with rubber seals to prevent leakage Reinforce the strength of the windshield by rolling the middle groove. There are ridges on both sides for ease of assembly with the air pipe. The base lever lock control has a locking groove to prevent loosening.
Usage
In a circular duct system, an air volume regulator controls the direction of the wind flow or adjusts the air volume to maintain the appropriate temperature and humidity in different rooms.
Product Code HDRG-T

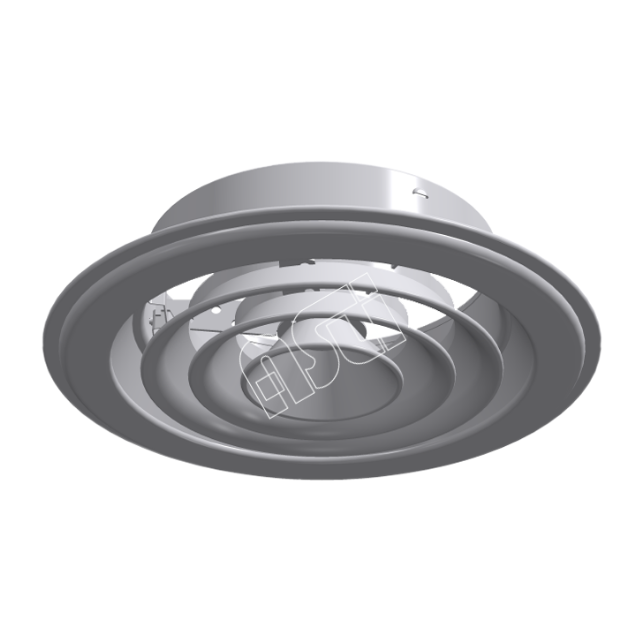

ceiling mounted round head
Round Ceiling Diffuser
Material: Aluminum
Surface : Aluminum , White
Optional : Volume damper mounted behind the round nozzle
Structure : produced by stamping. The face can be removed and adjusted to two heights to adjust the air distribution angle. The neck area can be equipped with a wind disk to increase the efficiency of air distribution.
Application :installed on the ceiling to distribute air downward
Product Code : CA-A
Customized Size : Neck size (Q 6”-24”)
Sidewall Opening : ( W+20 )
Grille Frame Overall : WH+60
Height : 48
Plenum box
Plenum (air box) connects to the air duct and the nozzle.
Material : PN-T galvanized steel
Surface: PN-T galvanized steel
feature
used to connect the air pipe to the air distribution head. used to rest the air so that the air flows out evenly in every channel.
Usage
In the air duct system, an air volume regulator controls the direction of the wind flow or adjusts the air volume to maintain the appropriate temperature and humidity in different rooms.
Product Code KD-T
Threaded air duct

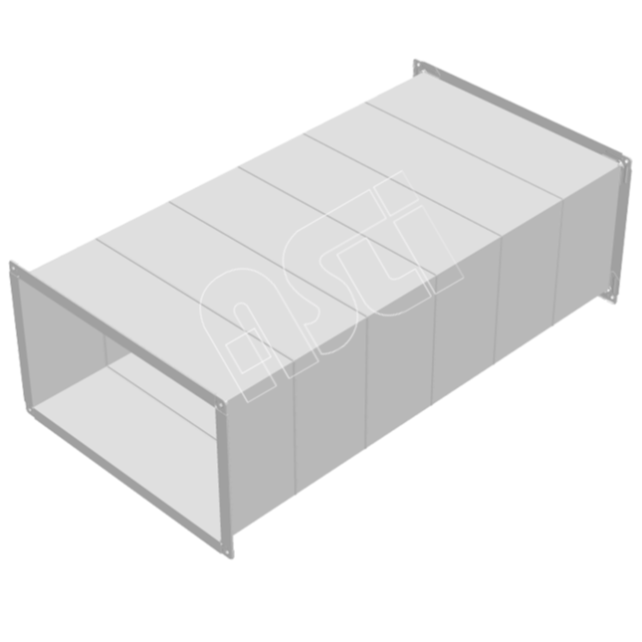

Square air duct (RECTANGULAR DUCT)
Material : TFD-T galvanized steel
Surface: TFD-T galvanized steel
feature
manufactured by forming a flange in the air pipe, thus reducing air leakage. There is a rolled ridge to increase the strength of the pipe. can be ordered separately for ease of transport. can be assembled easily.
Usage
used as a duct for supplying or sucking air in the air supply system.
Product Code TFD-T

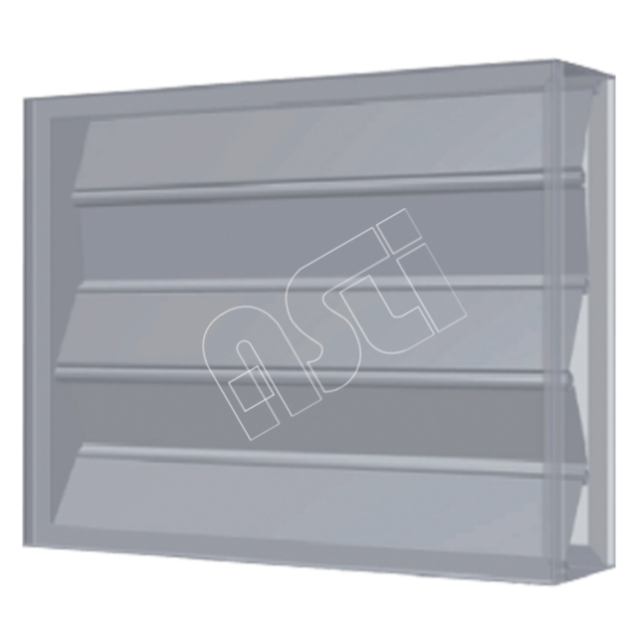

fireproof roller shutter door
Fire Damper (fireproof tongue) with 3 hours of fire resistance ratting passed UL 555 Classified Static Fire Damper.
Material : FDC-T galvanized steel
Surface: FDC-T galvanized steel
feature
FDC-T roller shutter fire damper model A Fire Damper is a type of top blind. When the fuse melts, the fire damper closes, with the leaves falling off by gravity according to the weight of the leaf. The frame and leaf of the fire damper are made of steel plate. The fuse has a melting point of 74 degrees Celsius, passed the UL-555 standard, and can withstand fire for at least 3 hours. UL33 standard fuse.
Usage
Installed in the wall, air ducts are installed vertically and used in static conditions.
Product Code FDC-T
Aluminum Foil Flexible Air Duct
Flexible Duct
Flexible Air Duct Flexible air duct. Swerve without using a bend.
Material : AF-A Aluminum Foil
Surface : AF-A aluminum foil
feature
made with a special type of aluminum foil coated with polyester wadding and joined together with a special non-flammable adhesive. Reinforcing the structure using spring wire plated with rust-resistant metal that is temperature-resistant, lightweight, easy to bend, easy to cut, and easy to connect Quick and easy installation.
Usage
used as a ventilating air duct, used to send airflow from the main pipe to the ventilator.
Product Code : AF-A
Customized Size : 4”-16”
Length : 10 M.

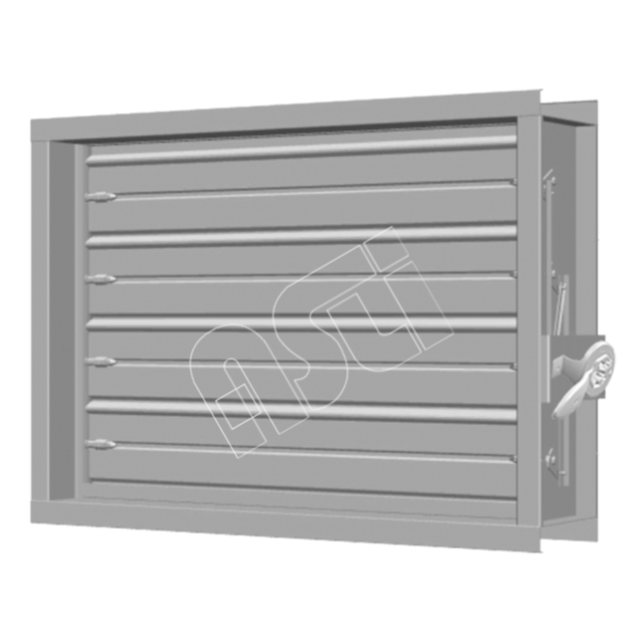

Rectangular wind flap, manual version
Volume Damper (set of air volume adjustment pads) A tongue or sheet is used to control the amount of air flow.
Material: HD-T galvanized steel
Surface: HD-T galvanized steel
Accessories: rubber seal, leaf edge
Feature
The rectangular flap has a hand control with position adjustment and a locking mechanism. The opening and closing of the leaves are both parallel and diagonal. There is a stainless steel spring on the side of the blade to prevent wind leakage. The non-slip bearing is made of brass, which is both strong and long-lasting.The flange of the frame is 35 mm.
UsageIn
Various air duct systems, an air volume regulator controls the direction of the wind flow or adjusts the air volume to maintain the appropriate temperature and humidity in different rooms.
Product Code : HD-T
Customized Size : W x H
Duct Size : W x H
Outer Frame : W x H
Depth : 150 mm.

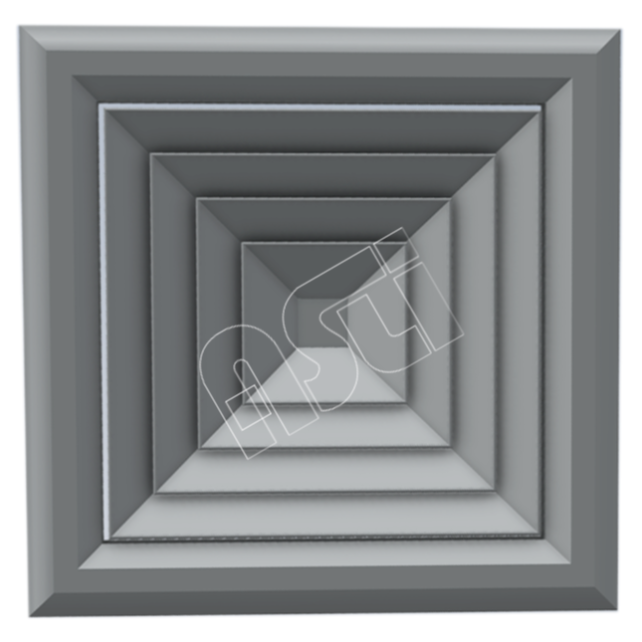

square-shaped dispensing head mounted on the ceiling
A square ceiling diffuser can distribute air in 1 to 4 directions.
Material: DB-A AluminumSurface: DB-A aluminum, white
Accessories: G1 volume damper mounted behind a square nozzle
Features: square shape The frame is convex from the ceiling by 15 mm., resulting in fewer dust stains. Air supply patterns are 1, 2, 3, or 4 way.
Usage: Installed on the ceiling to distribute the air.
Product Code: CKA-ACustomized
Size: Neck Size (Q 6"-16").
Duct Size: WxH
Sidewall Opening: W+80
H+80
Grille Frame Overall : W+100
H+100
