FANUC THAI LIMITED, a leader in industrial automation and robotics, is empowering Thai industries with advanced CNC systems, robots, and automation solutions. Committed to Industry 4.0, FANUC drives efficiency, sustainability, and growth. With training programs and local expertise, we support businesses to stay competitive in a dynamic global market.

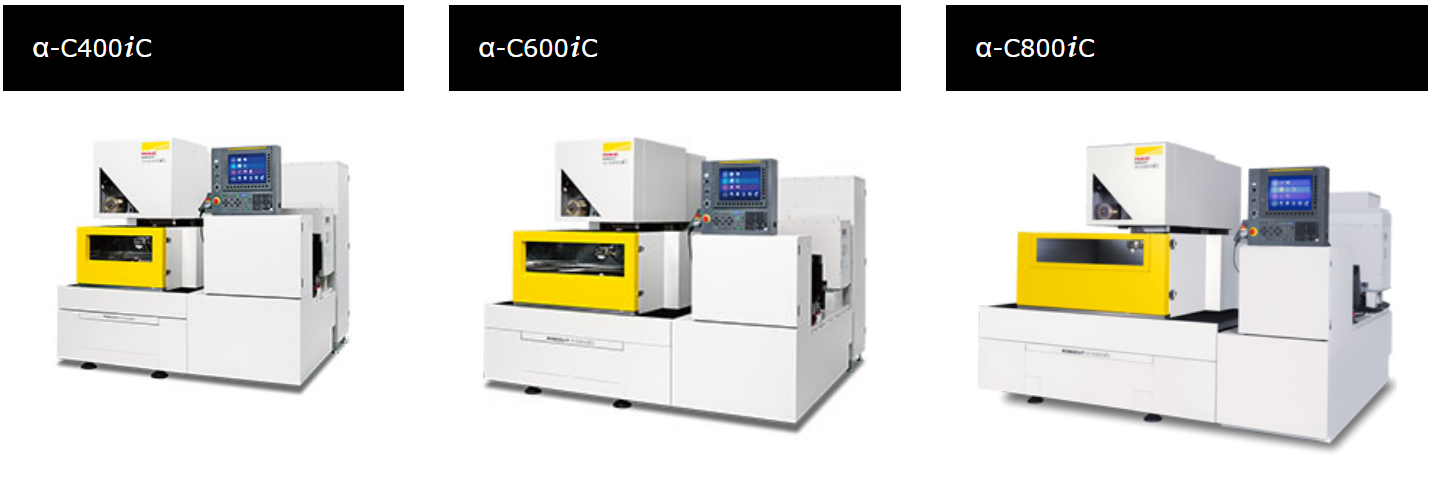

The ROBOCUT α-CiC Series is a wire EDM (Electrical Discharge Machining) system renowned for its reliability and precision. Featuring a redesigned cast structure and advanced discharge and control systems, it supports a wide range of needs, from micro-machining to large component processing.
■ Features
High-Precision Machining: The improved cast structure enhances rigidity, achieving ±1μm accuracy over a 500mm pitch.
Advanced Discharge and Control Systems: Equipped with the new discharge unit "SF3" and control system "iPulse3," delivering surface finishes as smooth as Ra0.26μm.
Automatic Wire Feeding (AWF3): A simple yet highly reliable wire feeding mechanism that enhances feed rates and ensures long-term stable operation.
Ease of Use: With a high-performance CNC system and the new "PANEL iH Pro" display unit, intuitive and efficient operation is made possible, reducing drawing time by 75% compared to previous models.
■ Specifications
Machining Range:
α-C400iC: XY-axis 400×300mm, Z-axis 255mm
α-C600iC: XY-axis 600×400mm, Z-axis standard 310mm (optional 410mm)
α-C800iC: XY-axis 800×600mm, Z-axis standard 310mm (optional 510mm)
Supported Wire Diameter: Standard φ0.1–0.3mm (optional φ0.05–0.3mm supported)
Other Features: High maintainability, significantly reducing maintenance effort.
■ Applications
The ROBOCUT α-CiC Series is ideal for manufacturing press molds, injection molds, and precision parts. It excels in industries requiring high precision and fine machining, enabling efficient and accurate production processes.
The ROBOCUT α-CiC Series provides precise and efficient machining, contributing to enhanced productivity across various industries.

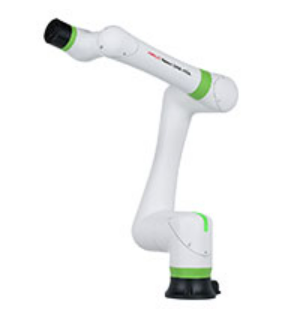

The CRX-10iA is an industrial robot that combines ease of use with high reliability. It features a payload capacity of 10 kg and a reach of 1,249 mm, making it suitable for meeting diverse automation needs in manufacturing environments.
■ Features
Intuitive Operation: Programming is made simple with a tablet-style teach pendant that uses drag-and-drop functionality, enabling even those with little experience in robot operation to set up the system easily.
High Safety Standards: Designed for collaborative work with humans, it is equipped with highly sensitive sensors that immediately stop operation upon contact.
Flexible Installation: With a lightweight design (weighing only 40 kg), it can be installed on floors, ceilings, or at an angle, ensuring easy integration into existing work environments.
Long Maintenance-Free Operation: The highly reliable design ensures up to 8 years of maintenance-free operation.
■ Specifications
Payload Capacity: 10 kg
Reach: 1,249 mm
Number of Axes: 6
Repeatability: ±0.04 mm
Installation Options: Floor-mounted, ceiling-mounted, or angled
Protection Rating: IP67
■ Applications
The CRX-10iA is ideal for a variety of industrial applications, including material handling, assembly, and arc welding. Additionally, models designed for food-grade and painting applications are available, making it suitable for use in the food industry and painting processes.
With its intuitive operation and high safety standards, the CRX-10iA significantly enhances automation and efficiency in production environments.
