PR message
Thai ShinMaywa Co., Ltd. is the first overseas production base of the ShinMaywa Group. The company began operations in Thailand with the goal of manufacturing hydraulic cylinders for specialized trucks. Its main products include hydraulic cylinder sets for dump trucks, wastewater treatment equipment, and other related products.

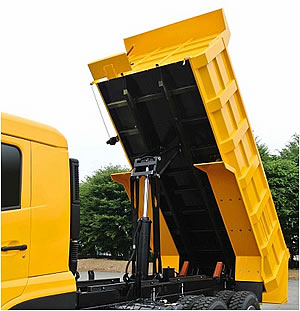

The KRM-71 underbody hydraulic cylinder is developed with "TENTSUKI" technology, a world-class standard introduced by ShinMaywa Industries, Ltd. in 1971. Dump trucks equipped with the TENTSUKI system have gained widespread popularity and usage worldwide due to their superior quality and durability, which are certified to Japanese standards.
■ Features
- Utilizes a high-pressure hydraulic system without the need for a return hydraulic hose, reducing maintenance requirements.
- Designed for easy and secure installation on vehicle frames.
- The piston rod is coated with hard chrome, providing scratch resistance and extending service life.
- Manufactured under MIT quality standards and controlled according to Japanese quality assurance.
■ Specifications
- Cylinder Diameter: 80 mm
- Piston Rod Diameter: Ø 70 mm
- Maximum Pressure: 14.7 MPa (140 kgf/cm²)
- Stroke Length: 440 mm
- Total Weight: 69 kg
- Hydraulic Cylinder Dimensions:
L: 980 mm
W: 270 mm
H: 300 mm
X: 304 mm
■ Applications
- Designed for 1.5-ton dump trucks, assisting in efficient cargo bed lifting.
- Ideal for construction projects requiring the transportation of materials such as sand, gravel, and soil.
- Suitable for logistics and freight transport industries requiring a durable and safe lifting system.
Compatible with vehicles handling heavy loads, ensuring efficient material unloading.
With its robust structure and heavy-duty design, the KRM-71 hydraulic cylinder is the optimal choice for dump truck operations and underbody lifting systems requiring maximum performance and safety.

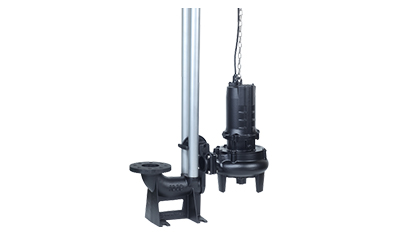

Introducing new technology for superior wastewater treatment, the CNMJ-MT submersible pump from Thai ShinMaywa Co., Ltd. is designed for use in wastewater treatment systems. It can handle solids up to 3 inches (80 mm) in diameter with an enhanced chopper mechanism, ensuring efficient processing of debris in liquids.
■ Features
- Improved Passing Capability: The impeller features a helix-shaped passage based on the CNWX design.
- Solids Passage up to 3 inches (80 mm): The impeller allows a significantly larger solid passage than previous models.
- Simple Design: Utilizes a single-vane semi-open channel impeller, similar to the CN model.
- Brand-New Chopper Mechanism: The newly developed chopper mechanism enhances cutting performance and reduces clogging.
- Durable & Heavy-Duty Construction: The pump body is made of high-quality cast iron (FC250), and the motor shaft is constructed from stainless steel 420J2, offering excellent durability and corrosion resistance.
- Compact Yet Powerful Design: The single-vane semi-open impeller provides a space-efficient structure without compromising performance.
■ Specifications
- Applicable Fluids: Wastewater and drainage
- Fluid Temperature: 0 – 40°C
-Structural Materials:
Motor Shaft: Stainless Steel 420J2
Pump Casing: Cast Iron FC250
Impeller: Cast Iron FC250
- Motor Type: Submersible air-filled induction motor
- Motor Poles: 4 poles
- Voltage: 380V/400V/415V (50Hz) | 380V/400V/440V (60Hz)
■ Applications
- Wastewater treatment plants and sewage systems
- Wastewater and stormwater pumping stations
- Commercial buildings and shopping centers (for kitchen and restroom wastewater)
- Industrial plants and large-scale facilities
With its cutting-edge features, the CNMJ-MT pump is an ideal choice for wastewater treatment applications that require high durability, superior performance, and clogging prevention.
