PR message
F & M Industry Co., Ltd. is a leader in Designing and Manufacturing Machinery for Food Processing and Packaging.
The Digital Cap Torque Meter & Capping Machine is used for testing and measuring the torque required to tighten and open bottle caps. It utilizes a servo motor to measure torque and can convert the results into various units such as N.m, Kgf, etc.
How it Works:
The empty bottle is placed into the machine, where a clamp secures it in place.
The cap is positioned using a cam-driven mechanism and placed on the bottle.
A weight (recommended 3 kg or more) is applied to the cap.
The touchscreen interface is used to start the process.
The machine tightens the cap according to the preset torque value.
To measure the opening torque, the machine gradually increases the torque until the cap opens, displaying the precise torque value.
This machine offers high precision, making it ideal for laboratory testing. It is user-friendly, allowing data extraction via USB for analysis. Additional functions can be customized based on customer requirements. The machine is constructed entirely from 304 stainless steel, ensuring durability and long-lasting performance.
Features:
Versatile for various testing applications, as different weights can be applied.
Comes with multiple stainless steel weights for testing.
Equipped with a manual JOG button for both forward and reverse rotation.

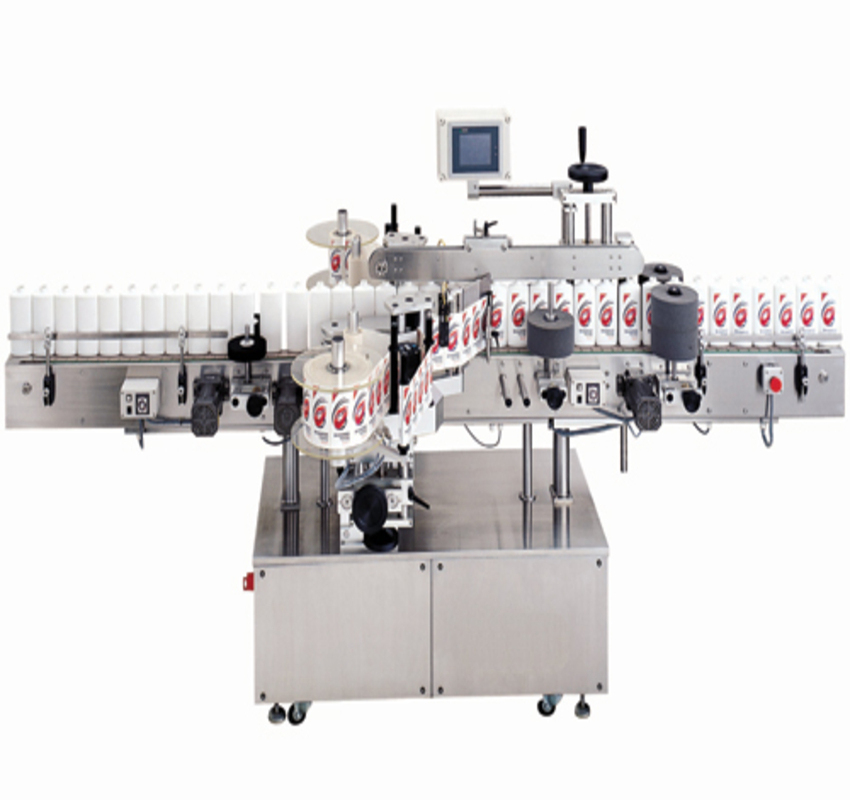

The automatic labeling machine is designed for label printing and application (labeling printing machine). It includes a sticker label printer that can print and apply product labels automatically. This machine can label various types of packaging, such as boxes, snack pouches, bags, and bottles.
Additionally, it can print production dates and expiration dates within the same system, ensuring high accuracy in label application.

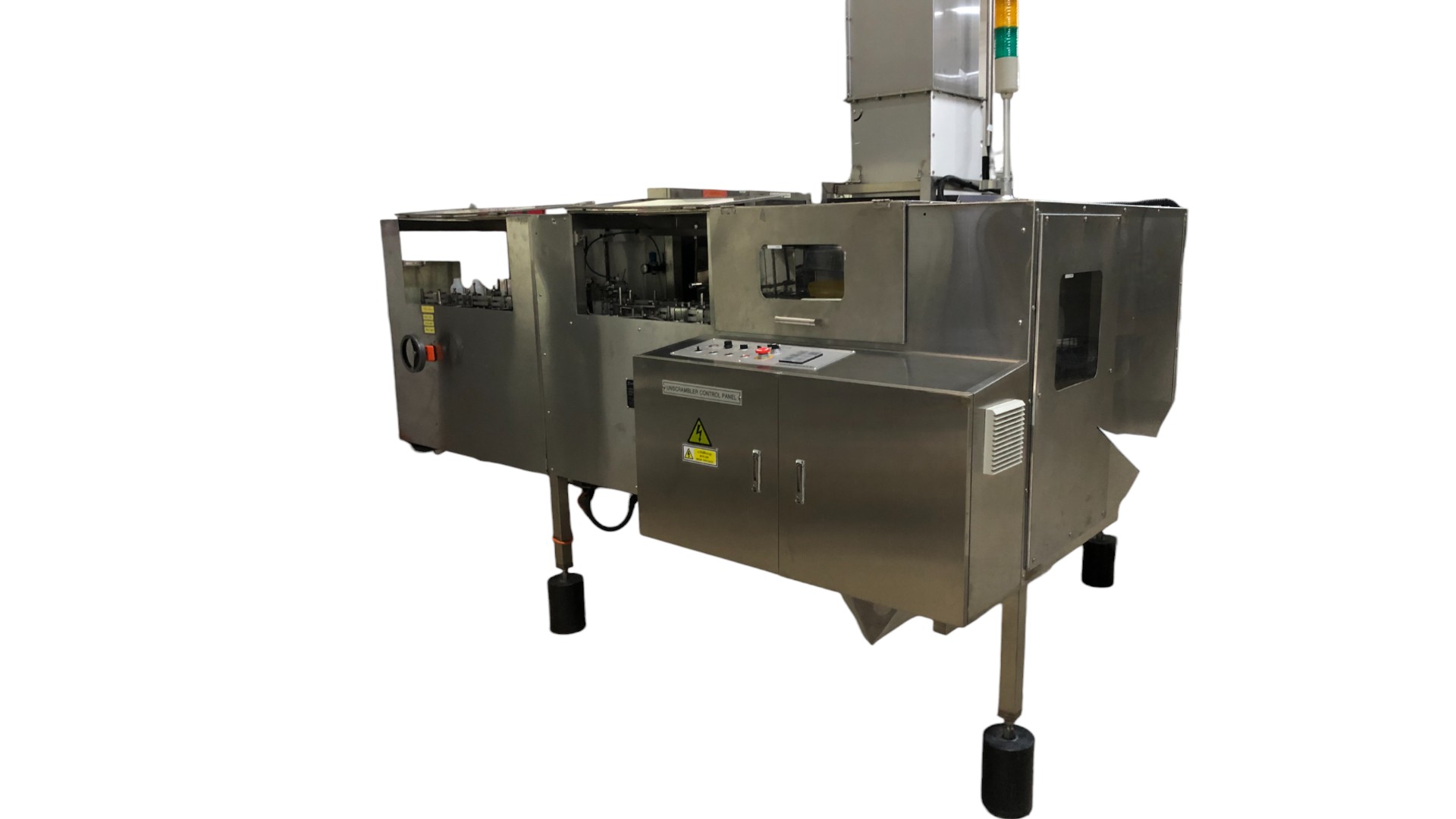

The automatic bottle unscrambler is designed to sort and align bottles onto a conveyor belt, reducing the labor required for manual bottle arrangement. This machine is not suitable for glass bottles but works efficiently with well-shaped and durable PE, PET, PP, and PVC bottles.
The bottle unscrambling process consists of three main sections
Bottle Feeding System – Two options: a giraffe-style feeder or a hopper system where bottles descend from the second level.
Rotary Sorting Disc – Spreads the bottles in a horizontal position, using centrifugal force to align them along the side of the hopper.
Mechanical Bottle Orientation System – Flips the bottles upright to ensure they are aligned uniformly.
The machine operates at variable speeds ranging from 100 to 300 bottles per minute.
Features
Easier bottle size adjustment compared to conventional machines.
Low maintenance costs for cost-effective operation.

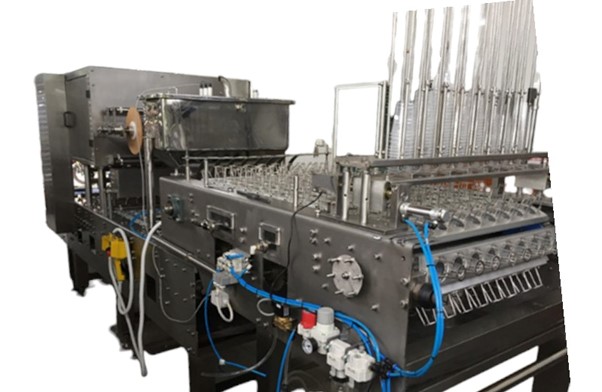

The automatic cup filling machine is designed for filling plastic cups and sealing them with a heat-sealed plastic film. It is suitable for packaging products such as drinking water, fruit juice, jelly, and more. This machine is engineered for ease of use and high production efficiency. It operates at a speed of approximately 120 cups per minute, equivalent to 7,200 cups per hour. The system functions fully automatically throughout all processes, including cup dispensing, filling, sealing, film cutting, and film movement.
Features
Can be connected to a conveyor system that flips the cups for date printing on the bottom.
Highly durable and robust construction.
