We have been dealing with stainless steel sanitary pipe fittings & valves which use on food, dairy, pharmaceutical, and industry as well as on OEM producing services for more than 14 years.

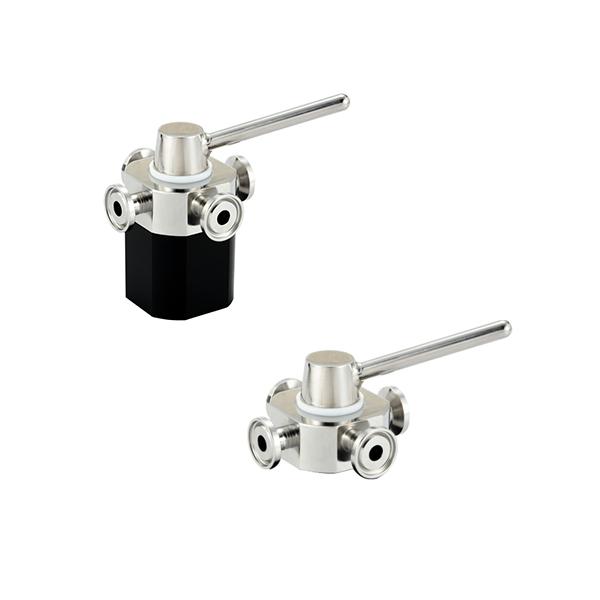

Product ID: BPE-P13_Four way Ball Valve
Product ID: P50_Ball Valve- Pharma
CSE Group can provide high-purity ball valves. It adopts a full bore design to achieve full fluid flow action. The end connection complies with ASME BPE, ISO and DIN standards. If used in the pharmaceutical industry, the inner surface can be polished to Ra<0.51um or Ra<0.38um by Satin, Mirror, or electronic polishing.
The design of the ball gasket has passed FDA certification and qualified material.
Gasket Material can options for PTFE、PTFE+Carbon、PTFE+GB、PTFE+50%SS. as your function needs.
CSE ball valves are suitable for sticky liquids or liquids containing granules, such as the food industry, biotechnology, beverage, chemical and pharmaceutical industries.
Specification:
Size:
1/4”- 6”
DN50~ DN80
Material:
316/ 316L/ CF3...etc.
Ball seat material:
PTFE
PTFE+Carbon
PTFE+GB
PTFE+50%SS
Max Temperature:
-10°C~ 130°C
Standard End:
SMS
RJT
DIN
3A
ISO
Weld end
Clamp end
Male/ Male
other can be required

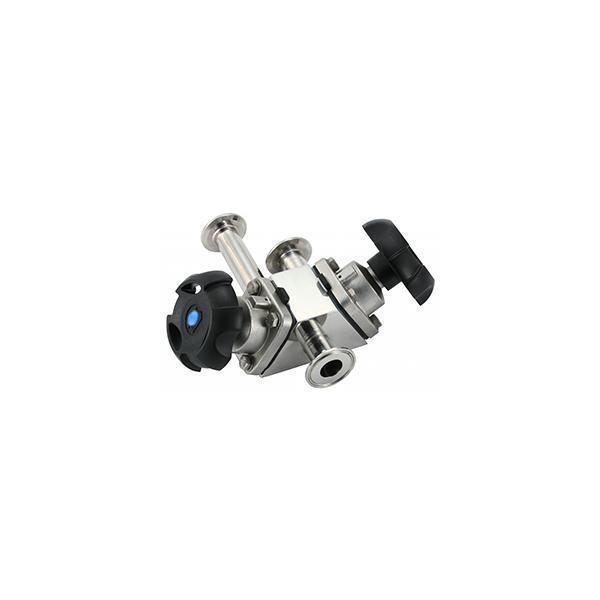

Product ID: Multiport Diaphragm Valve
Combine difference Mutual flow port and flow angle, function for complete Diaphragm valve design.
CSE use purity Block or Bar material with High technical Precision Machining process for aseptic inner flow design.
Surface Finished:
Surface can be meet SF1 Ra
Assembly:
The multi-port direction valve body is convenient to connect to different tubing-lines which can save installation time and space, it can also be designed according to customized requirements as multi-angle or installing location.
Function:
Mostly used for sampling or production and steam applications. It can simplify the traditional valve combination configuration, and the design that can reduce the dead angle and ensure complete drainage to achieve the effect of sterilization.
Specifications
Material:
Body: Forged/316L
Diaphragm: EPDM+PTFE/NC or NO
Connection:
Clamp End/Weld End…
Body Type:
Direct Connection (Two Way)/Equal T / Reducing T/U-Point…
Operation:
Normal Open / Normal Close
Work Temp:
Diaphragm: EPDM+PTFE (-10ºC~150ºC)
Work Pressure:
Max: 10 Bar
Surface:
SF1: ID Polished to Ra≤0.5μm / SF4: EP Finished to Ra0.38μm
ID/OD Mirror Polished & ID Ra≤0.5μm / OD Sand Blasted…

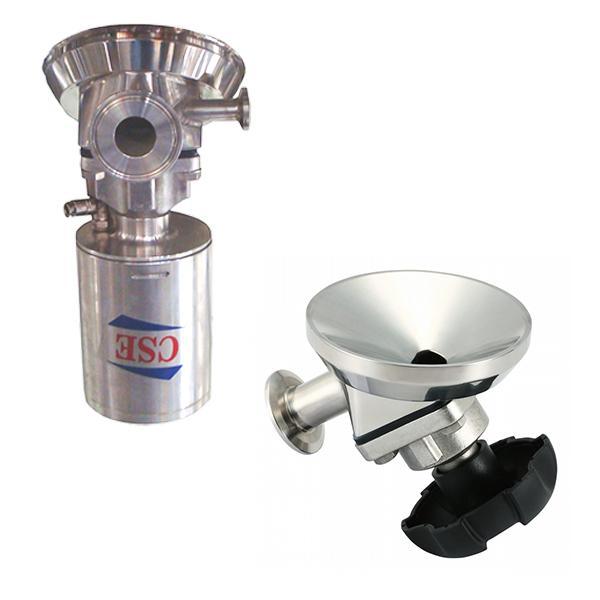

Product ID: P23 Tank Bottom Diaphragm Valve
CSE Pneumatic Tank Bottom diaphragm valve Aspect design can be widely applied to the fields, such as pharmacy, beer, food, beverage, fluid equipment, cosmetic and so on.
The diaphragm-type tank bottom valve provides a sterile design with no dead corners and no residues in the biotechnology pharmaceutical factory. It can be used in any tank, whether it is in a mixing or a fermentation tanks. The product design is of the same quality as that of Europe and the United States. The plant and biotechnology plant are adopted as cGMP PIC/S certification, and are the only diaphragm valve manufacturer in Taiwan that has passed the 3A certification.
No residue design
The product adopts a 45-degree downward discharge design so that there is no residue in the body, and can be designed with CIP or high-temperature cleaning, which truly meets the pharmaceutical-grade standard.
Sync in Europe and America
CSE tank bottom valve is not only easily assemble and disassemble, but also sold to Europe, America and all over the world, and is widely used in food, medicine and biochemical factories.
Specification:
Size : 1/2",3/4",1",1.5",2"
Operation : Normal Open & Normal Close design
Connection type:
- Clamp
- Weld
- other …
Standard:
- INCH: 1/2”~2”
- DIN / ISO: DN10-DN50
- other size can be requirement
Working temp：ASSEMBLING Diaphragm：EPDM(-40 C ~150 C0、PTFE/EPDM(-10 C~150 C)
Working pressure： max 10 Bar (1000kpa)

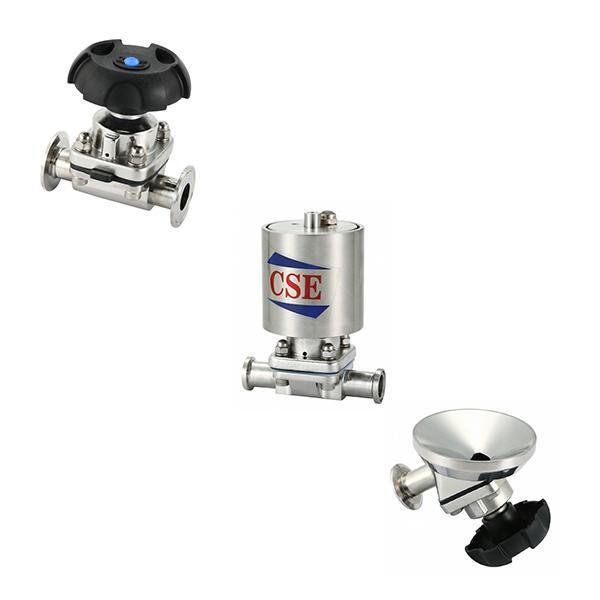

Product ID: P58_2 way Diaphragm Valve
The standard pneumatic/manual two-way diaphragm valve body is made of forged or casting 316L stainless steel, which meets the ASME BPE surface standard. For many years, CSE Group has always adhered to the highest principles of reaching "minimum residual volume" and "zero dead angle" when designing diaphragm valves. A uniform surface for kept purity fluid maintain stable quality. The α angle design of the valve body also allows the cleaning liquid to be completely drain out without causing stagnation to maintain a sterile cavity. In addition, cast or Forged valve bodies can be provided according to customer requirements.
CSE GROUP Diaphragm valves
According & Approval by PIC/S GMP standard also qualify by National Institutes of Health (NHRI)...and other famous pharmaceutical companies.
The design of this diaphragm valve can be widely used in systems with high aseptic requirements such as food, beverage, dairy products, brewing, biopharmaceutical fields and water for injection.
Specification
Material:
- Body:Forged/316L
- Diaphragm:EPDM+PTFE/NC or NO
The seal of Diaphragm is exchangeable
with GEMU
Connection:
- Clamp end/weld end
Body type:
- Direct connection(two way)/equal T/
reducing T/U-point.....
Operation:
- Normal open/normal close
Work temp:
- Diaphragm:EPDM+PTFE(-10°C~150°C)
Work pressure:
- Max:10 Bar
Surface:
- SF1:ID polished to Ra≦0.5μm
- SF4:EP finished to Ra≦0.38μm
- ID/OD mirror polished & ID Ra≦0.5μm/OD sand blasted.....

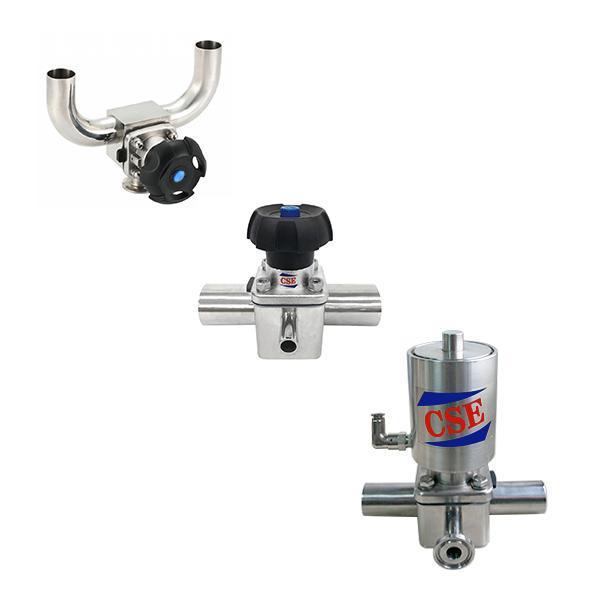

Three-way sanitary diaphragm valve option
- The sanitary diaphragm valve use Purity block or Forged material such as SS316L and precision machining body. Seal can be provide EPDM/ PTFE as FDA USP IV qualify gasket.
- The end connection can be provide welded, clamp, weld/ clamp/ weld etc...
- Manual or Pneumatic control can be option( can be select the control box)
- The inner surface treatment can reach
15RAμin (0.38μm) as SF4 (Electro-polished)
20RAμin (0.51μm) as SF1 (Mechanical polished)
The grade of 3A 32RAμin (0.81μm)
For improvement of the medicines purity, hygienic process, CSE has designed a T/U-type aseptic diaphragm valve with zero dead ends, which reduces the scope of bacterial growth. It can be widely used in food, beverage, dairy, brewing, pharmaceutical and other industries. PW (Pure water)& WFI (water of injectioin) , ultra-high purity chemicals, etc.
No only CSE standard diaphragm valves, we can also provide aseptic sampling diaphragm valves and Multi-port block diaphragm valves for reduce Space and more less dead angle design by according to customer requirements.
Specification:
- Size :
1/2",3/4",1",1.5",2"
- Operation :
Normal Open & Normal Close design
- Connection type:
Clamp or Weld or other …
- Connection:
INCH: 1/2”~2”
DIN / ISO: DN10-DN50
other size can be requirement
- Working temp：
ASSEMBLING Diaphragm：EPDM(-40 C ~150 C0, PTFE/EPDM(-10 C~150 C)
- Working pressure：
max 10 Bar
- Surface :
Standard :OD /ID mirror polished. ID Ra 0.8um
OD- Sand Blasted .or E/P or other ,ID Ra 0.38um

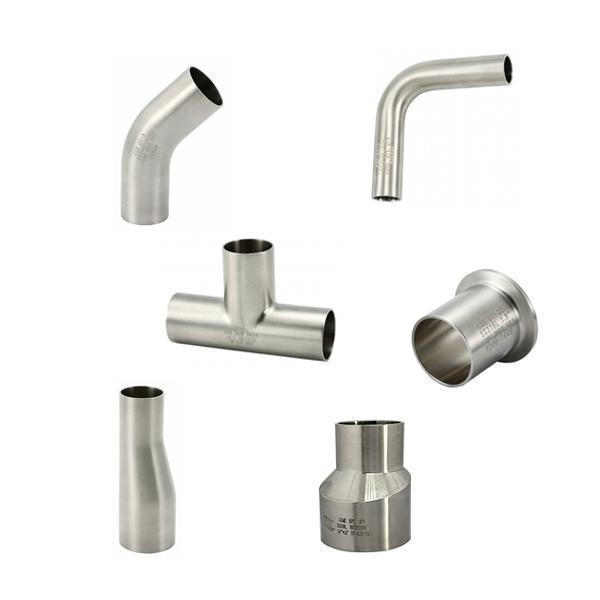

Product ID: P66_BPE Fittings
ASME BPE pipe fittings are used in high-purity markets like PIC/S GMP certified facilities, such as biotechnology and pharmaceuticals. They require strict purity to ensure that no bacteria remain in the production process. BPE welding fittings are produced in accordance with ASME BPE 2019 standard follow up the dimensional tolerances, inner surface finish (Ra), and materials. According to the ASME BPE DT table, CSE can be supply the various sizes, up to 6 inches.
CSE GROUP offers various shapes, end connections, configurations, dimensions and inner surface finish options SF1~SF6 that comply with ASME BPE standards. To prevent damage and contamination, all BPE hygienic fittings are inspected and packaged in CLASS 10,000 clean room to get capped and transported in transparent bags. After strict inspection by CSE, each BPE fitting will be laser on the pipe fittings according to ASME BPE-2019 symbol requirement, and a material test report (MTR) will be provided.
Specification:
1. ASTM A270-2015 S2
2.SURFACE FINISH: SF0~SF6
- SF1 ID Pol. Ra<0.5μm/ OD Pol. Ra<0.8μm
- SF4 ID EP Finished Ra<0.38μm/ OD Pol. Ra<0.8μm
3.CSE BPE EP products with following advantages:
- Homogeneously EP layer to minimize rouging
- Higher chrome concentration for better corrosion resistance
- Guaranteed smoothness of all internal surfaces to reduce Bio film
4.Dimension：
- 1/2" ~6"
5.Material：low sulphur
- ASTM SS316L, S：≦ 0.005% ~ 0.017%,

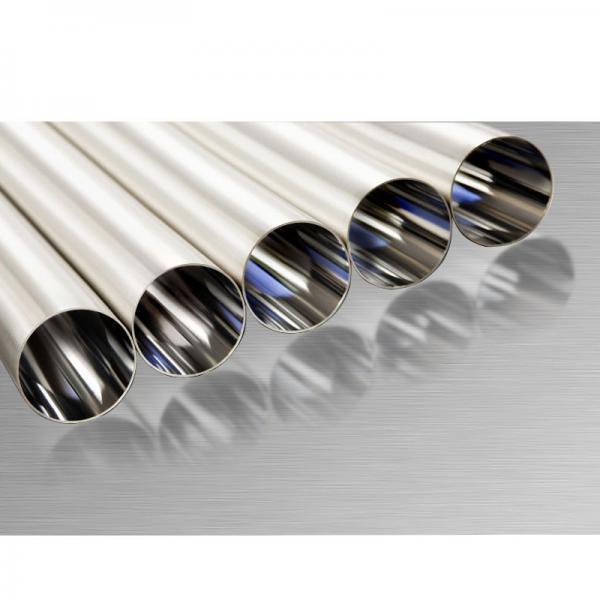

Absolutely BPE hygienic conditions are necessary for the entire production cycle of pharmaceutical and ultra-high industries.
Therefore, tubes, fittings, and valves with a smooth internal surface like SF1 (Mechanical polished) or SF4 (Electro-polished) are extensively installed with the advantages of cleaning easily and avoiding bacteria contamination.
CSE only offers ASME certified tubes that are manufactured, quality controlled, marked, and certified complying with the highest standards for hygienic equipment design and guarantees extended quality and traceability.
CSE BPE tubing's reduces inspection requirements prior to installation by utilizing only the quality stainless steel materials compliant with ASME regulations.
CSE delivers directly from stock the following stainless steel tubes in grade TP316L with low sulfur content of 0.005% to 0.0017% and SF1 and SF4 finishes (according to the ASME BPE specification).
Specification:
- ASTM A270-2015 S2
- SURFACE FINISH: SF0~SF6
SF1 ID Pol. Ra<0.5μm/ OD Pol. Ra<0.8μm
SF4 ID EP Finished Ra<0.38μm/ OD Pol. Ra<0.8μm
- CSE BPE EP products with following advantages:
Homogeneously EP layer to minimize rouging
Higher chrome concentration for better corrosion resistance
Guaranteed smoothness of all internal surfaces to reduce Bio film
