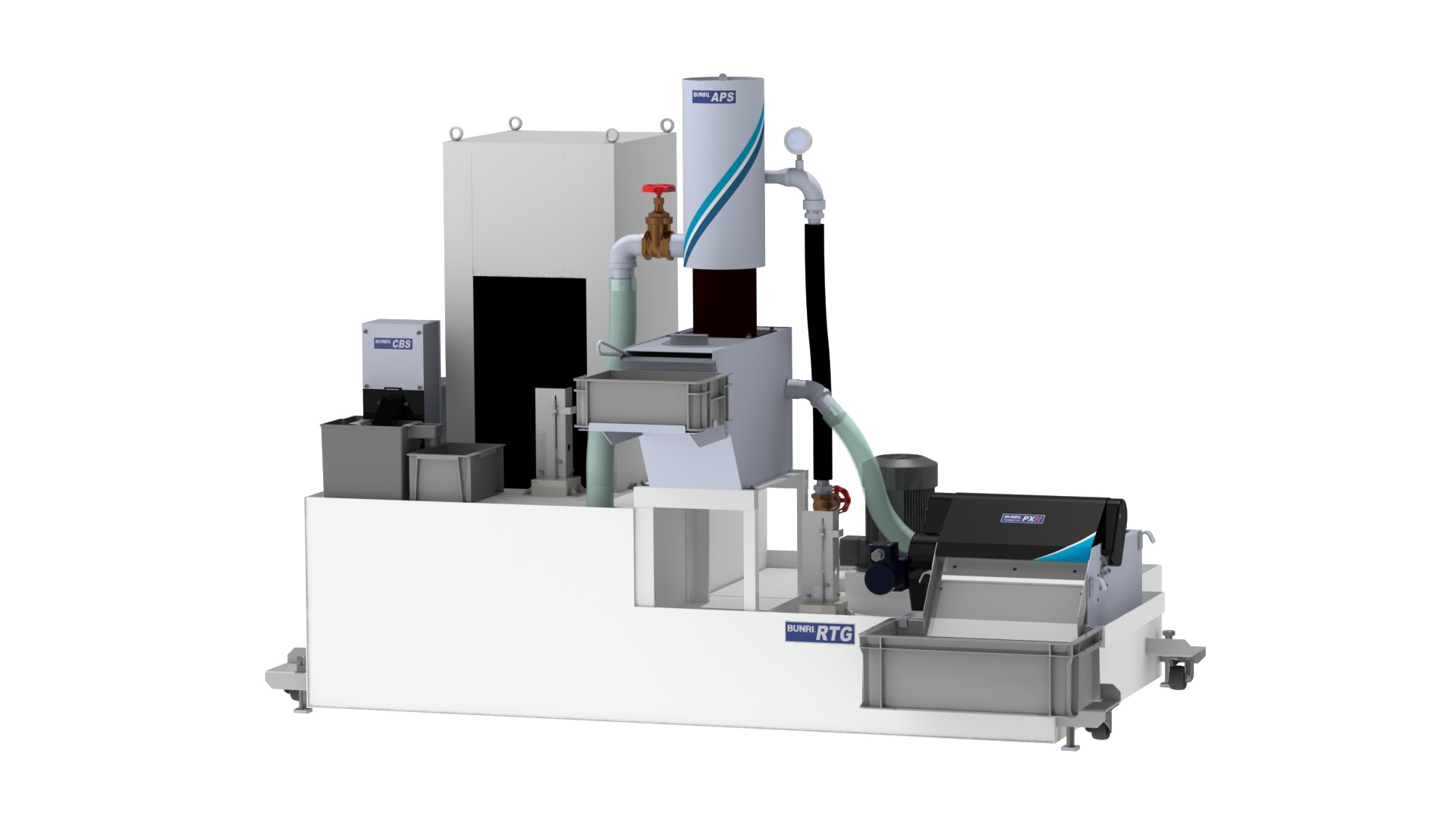

Grinding system equipped with a new magnetic separator and a new cyclone filter in a uniquely designed tank structure.
Optimum for grinding sludge processing of magnetic materials.

Features

　・Suitable for sandy and cottony magnetic sludge.
　・The primary filtration is performed by the magnetic separator, and the secondary filtration is performed by the cyclone filter.
　・A vortex is generated in the primary tank using the inflow of the primarily filtered clean liquid and the overflow of the secondary tank.With its centripetal force*, sludge and abrasive grains are collected in the center of the tank.
　・By improving the primary tank structure, the rotating flow speed of the tank has increased about three times compared to before the improvement. Improved centripetal force* reduces sludge and abrasive deposits in the tank.As no shower pump is required, power consumption is reduced.
　・This product does not use any consumables such as cartridge filters or paper filters, so no industrial waste is generated.* Refers to the force that acts toward the center of the circle.Vortex.

Coolant Water soluble
Category
　Magnetic material
Processing details
　Grinding
Work material
　FC/FCD Steel
Chip shape
　Sandy / Cottony
Grinding chip size
　Ultrafine particles (5 μm to 10 μm) / Fine particles (10 μm to 100 μm) / Coarse particles (0.1 mm to 0.5 mm)
Machine tool
　Grinding machine / Tool grinding machine
