SCC space-saving type.
The winding that assists in transportation and the magnetic drum for transfer that assists in chip discharge are included as standard.
Filtration accuracy
　80μm 90％ or more
Flow rate(L/min)
　200

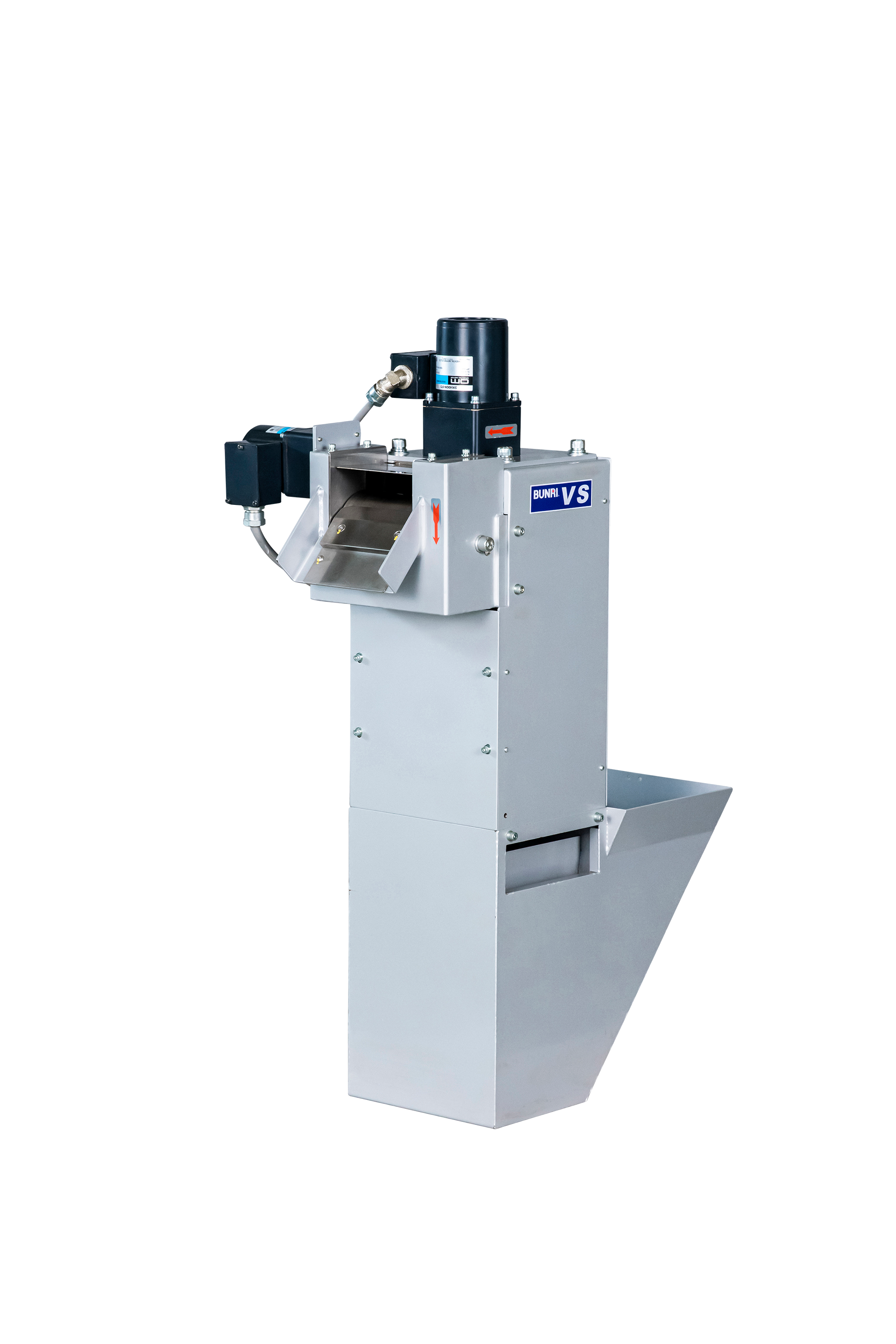

Screw type conveyor using magnet.
The rotating part is not exposed, so this can be used safely and se curely.
Optimum for cutting chip processing of gear cut ting machines, broach machines, etc.

Features

　・The rotation axis of the magnet is inside the fixed pipe, so there are only a few problems such as chip biting, which enables you to use this product safely.
　・Also suitable for dry processing based on the heat resistant specifications.
　・This product does not use any consumables such as cartridges or paper filters, so no industrial waste is generated.

Coolant
　Water soluble / Oil-based
Category
　Magnetic material
Processing details
　Cutting
Work material
　FC/FCD Steel
Chip shape
　Granular / Small curl-shaped (50 mm or less)
Grinding chip size
Machine tool
　Machining center / Broaching machine / Gear cutting machine

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
