Machine element

MIKI PULLEY

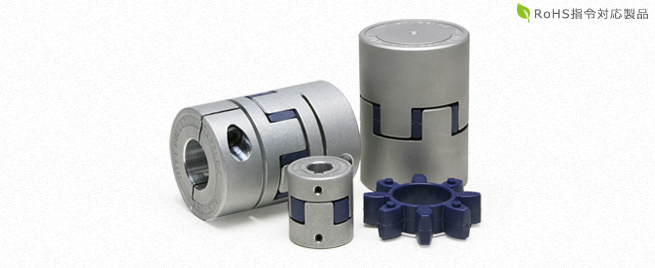

The Star Flex (Jaw Coupling) ALS(B) Type uses a polyurethane elastomer element with a hardness of 97 and features a loose fit structure and crowning shape. This design provides high transmission torque and the ability to absorb large misalignments. It is particularly suitable for a wide range of applications, including machine tools, hydraulic equipment, pumps, fans, conveying devices, and textile machinery.

Features
- High Transmission Torque: Achieves high transmission torque with a polyurethane elastomer element of 97 hardness.
- Absorption of Large Misalignments: The loose fit structure and crowning shape absorb large misalignments.
- Durability: Provides long-term stable performance with high-quality materials and design.
- Wide Range of Applications: Suitable for various industrial equipment.

Specifications
- Model Name: ALS(B) Series
- Element Material: Polyurethane elastomer (hardness 97 JIS A)
- Operating Temperature Range: -30℃ to 80℃
- Allowable Torque: Varies by model
- Maximum Rotation Speed: Varies by model

Applications
- Machine Tools
- Hydraulic Equipment
- Pumps
- Fans
- Conveying Devices
- Textile Machinery

The Star Flex ALS(B) Type provides reliable power transmission in various industrial equipment that require high transmission torque and absorption of large misalignments.

For more details, please download the PDF or feel free to contact us.
