MIKI PULLEY

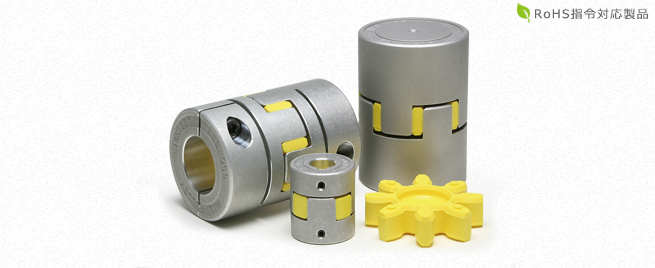

The Star Flex (Jaw Coupling) ALS(Y) Type uses a polyurethane elastomer element with a hardness of 90, designed with a pre-compression tight fit structure. This allows for zero backlash operation. Compared to the ALS-R type, the lower hardness of the element reduces axial reaction force. It is suitable for a wide range of applications, including machine tools, hydraulic equipment, pumps, fans, conveying devices, and textile machinery.

Features
- Zero Backlash: Achieves zero backlash with a pre-compression tight fit structure.
- Low Axial Reaction Force: Reduces axial reaction force with an element hardness of 90.
- High Flexibility: Highly flexible for use in a wide range of equipment.
- Reliability: Provides long-term stable performance with durable materials and design.

Specifications
- Model Name: ALS(Y) Series
- Element Material: Polyurethane elastomer (hardness 90 JIS A)
- Operating Temperature Range: -30℃ to 80℃
- Allowable Torque: Varies by model
- Maximum Rotation Speed: Varies by model

Applications
- Machine Tools
- Hydraulic Equipment
- Pumps
- Fans
- Conveying Devices
- Textile Machinery
- Drives: Servo Motors, Stepping Motors, General-Purpose Motors

The Star Flex ALS(Y) Type achieves reliable power transmission in various industrial equipment requiring high torque while reducing axial reaction force.

For more details, please download the PDF or feel free to contact us.
