Machine element

MIKI PULLEY

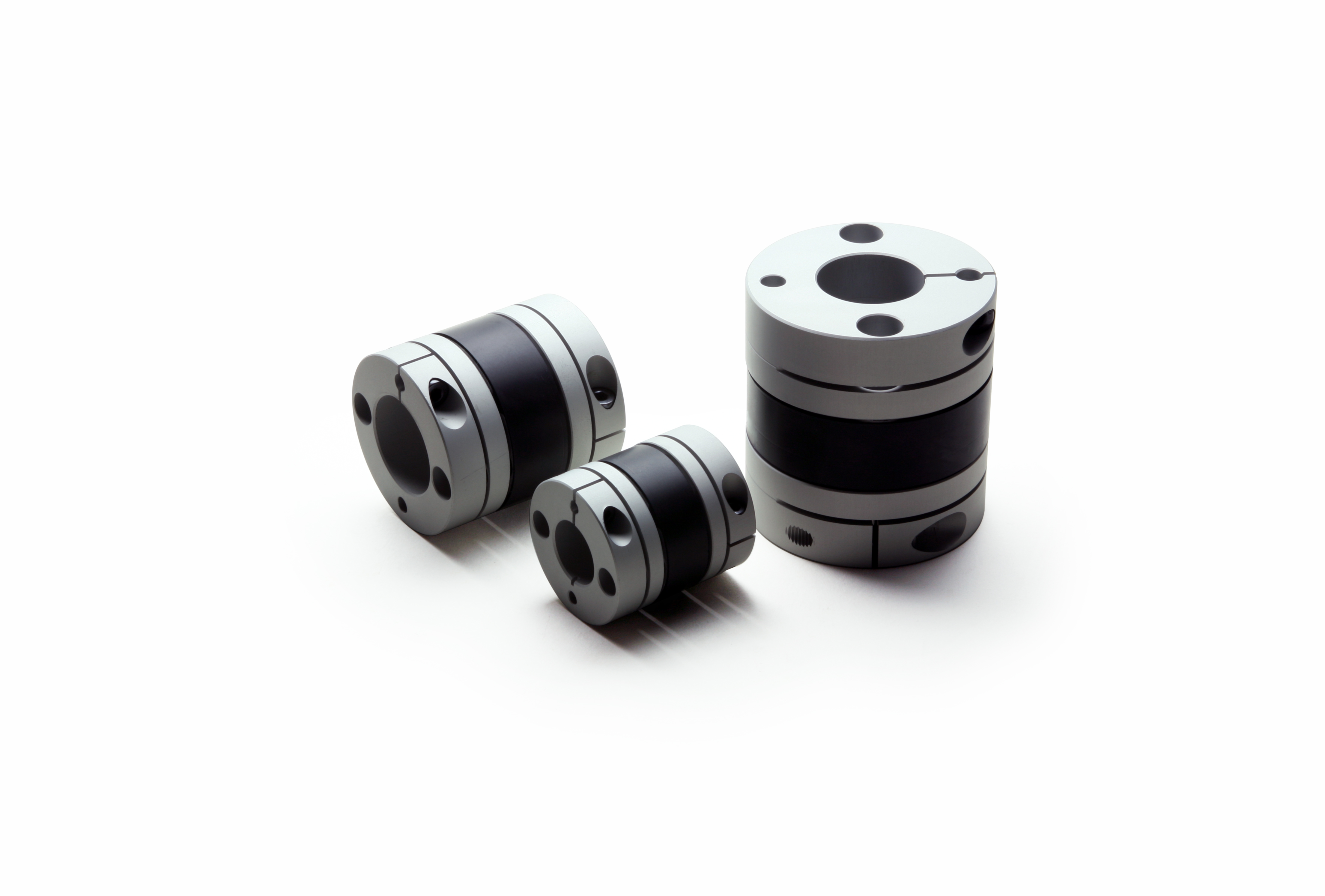

A newly developed rubber element achieves high damping performance. A high-damping performance coupling that can support high-speed, high-precision operation of servo motors, etc. There is no backlash as all power transmission is done through frictional coupling. By using HNBR for the element, vibrations are damped more quickly than flexible couplings that use metal elements. This suppresses the resonance phenomenon that is a concern in drive lines such as motors, making it possible to avoid resonance over a wide operating speed range. Provides stable and high-speed control. Furthermore, the assembled structure also reduces shaft reaction force caused by misalignment. It is also possible to significantly reduce the burden on the mating shaft and bearing.

Features
- High Damping Performance: The newly developed rubber elements support high-speed, high-precision operation.
- No Backlash: Achieves no backlash through frictional engagement power transmission.
- Resonance Suppression: Suppresses resonance phenomena and avoids resonance over a wide operating speed range.
- Assembly Structure: Reduces axial reaction force due to misalignment, lessening the burden on the counterpart shaft and bearings.

Specifications
- Model Name: SFR Series
- Allowable Torque: Varies by model
- Maximum Rotation Speed: Varies by model
- Element Material: HNBR (Hydrogenated Nitrile Butadiene Rubber)
- Operating Temperature Range: -20℃ to 100℃

Applications
- Encoders
- Semiconductor Manufacturing Equipment
- Actuators

The Servo Flex (Resonance Suppression Rubber Coupling) SFR Model is ideal for applications requiring high-speed, high-precision operation, such as encoders and semiconductor manufacturing equipment.

For more details, please download the PDF or feel free to contact us.
