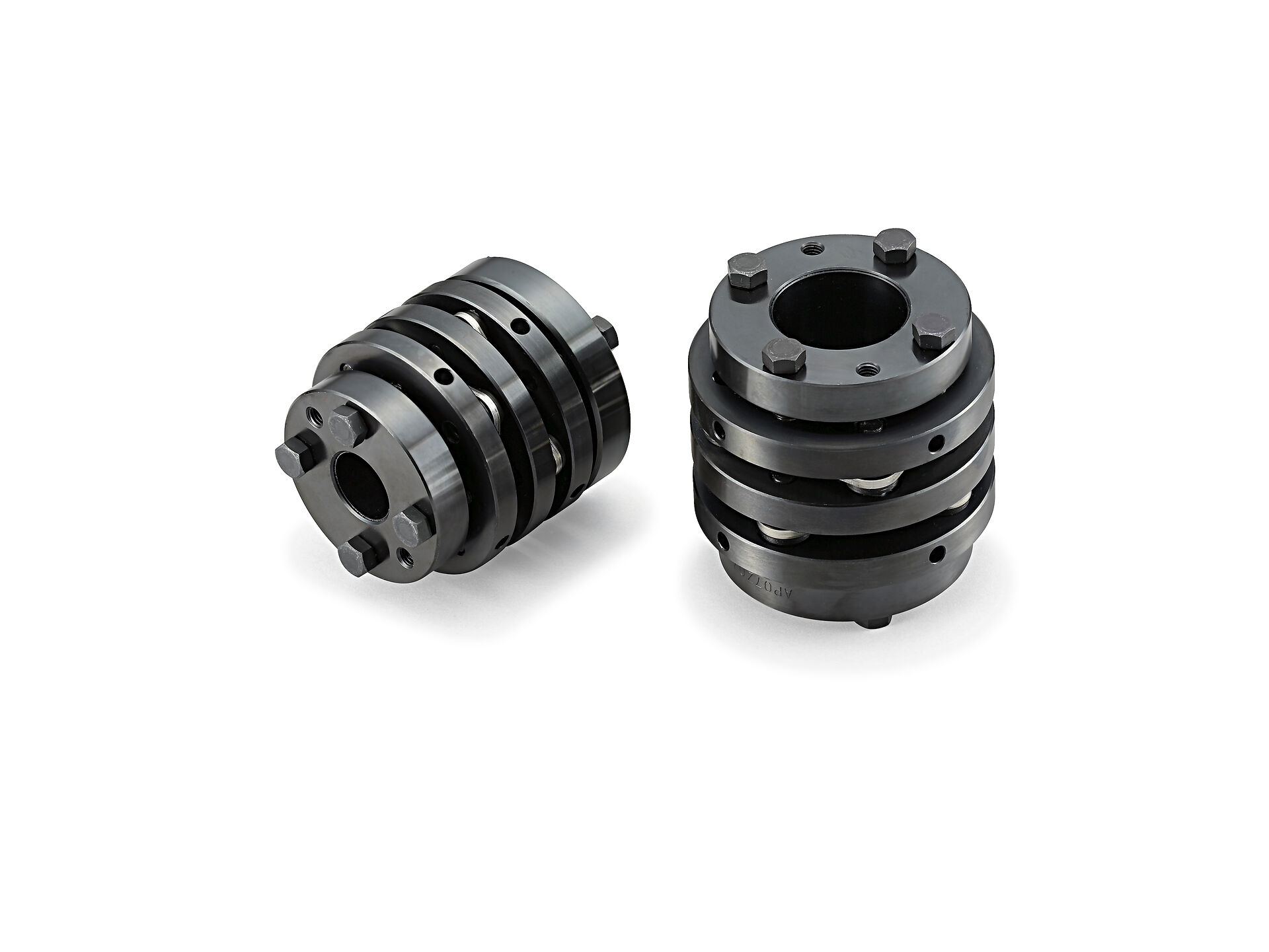

The Servo Flex (Metal Leaf Spring Coupling) SFF Model is designed based on the specifications and dimensions of the latest servo motors, making its allowable torque and compatible shaft diameters a perfect match for the latest servo motors from various manufacturers. It features two types of fastening methods: clamping and wedge fastening. Both methods achieve more than 1.5 times the allowable torque compared to conventional models. This allows for the downsizing of the coupling and contributes to the reduction of the moment of inertia. Additionally, it is compatible with the tapered shafts of servo motors.

Features
- High Allowable Torque: Achieves more than 1.5 times the allowable torque compared to conventional models.
- Various Fastening Methods: Available in clamping and wedge fastening types.
- Downsizing: Enables a smaller coupling size, reducing the moment of inertia.
- Wide Variation: Offers various options, including compatibility with tapered shafts of servo motors.

Specifications
- Model Name: SFF Series
- Allowable Torque: Varies by model (more than 1.5 times compared to conventional models)
- Maximum Rotation Speed: Varies by model
- Materials:
Main Body Material: High-quality alloy steel
Surface Treatment: Special treatment for high durability
- Operating Temperature Range: -20℃ to 100℃

Applications
- Machine Tools
- Semiconductor Manufacturing Equipment
- Actuators
- Chip Mounters
- Printing Machines
- Packaging Machines

The Servo Flex (Metal Leaf Spring Coupling) SFF Model is ideal for applications requiring high-precision power transmission, such as machine tools and semiconductor manufacturing equipment.

For more details, please download the PDF or feel free to contact us.
