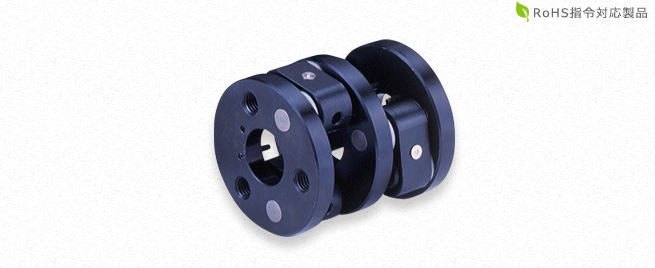

The Schmidt Link Type Coupling DL Model is an offset coupling utilizing the crank motion of the link. This coupling ensures the reliable transmission of input power from one end disk to the other via the link and center disk. Due to the power transmission through the link, the occurrence of reaction force is extremely minimal, allowing for a large eccentricity of up to ±4mm. It is particularly suitable for use in roll forming machines and sanitary product manufacturing equipment, providing high reliability and performance.

Features
- Large Eccentricity Tolerance: Allows for an eccentricity of up to ±4mm, achieving flexible power transmission.
- Low Reaction Force: The power transmission through the link generates extremely minimal reaction force.
- High Reliability: Robust structure and high-quality materials offer long-lasting and stable performance.
- Versatile Applications: Suitable for various equipment such as roll forming machines and sanitary product manufacturing devices.

Specifications
- Model Names: DL 7.7-02, DL 7.9-03, DL 10.12-04, DL 13.14-04, DL 16.16-04, DL 20.20-04
- Allowable Torque: 93 N・m to 2310 N・m
- Maximum Rotation Speed: 1000 to 2000 min⁻¹
- Eccentricity Allowance: Up to ±4mm
Materials:
- Pin Material: Structural Alloy Steel
- Disk Material: Equivalent to S45C (Blackened)
- Link Material: Structural Carbon Steel (Blackened)
- Operating Temperature Range: -10℃ to 60℃

Applications
- Roll Forming Machines
- Sanitary Product Manufacturing Equipment

The Schmidt Link Type Coupling DL Model provides reliable power transmission and high eccentricity tolerance in roll forming machines and sanitary product manufacturing equipment.

For more details, please download the PDF or feel free to contact us.
