Machine element

MIKI PULLEY

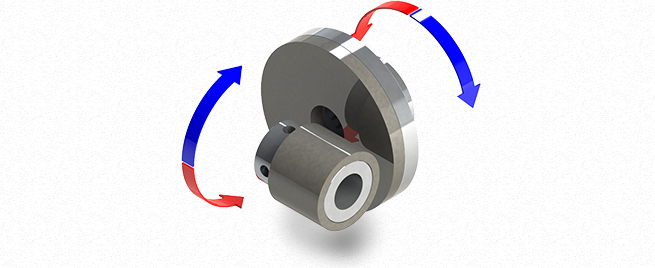

The Magnetic Coupling MP Series is a non-contact type coupling that utilizes magnetic attraction and repulsion. It adopts a right-angle miter structure, making torque adjustment easy and allowing for space-saving installation even in tight spaces. It offers combinations of cylindrical × cylindrical types and disc × cylindrical types, with the latter achieving high torque. Being non-contact, it ensures no wear and easy maintenance.

Features

Non-Contact Type: Utilizes magnetic attraction and repulsion, ensuring no wear and easy maintenance.
Right-Angle Miter Structure: Space-saving design that accommodates tight spaces.
Easy Torque Adjustment: Simple torque adjustment supports a wide range of applications.
High Torque Capability: The disc × cylindrical type achieves high torque.
Versatile Applications: Suitable for various machines and devices.

Specifications

Model: MP Series
Torque Range: 0.5 to 20 N·m
Operating Temperature Range: -20°C to +80°C
Mounting Method: Clamp method
Maximum Rotation Speed: 3000 min⁻¹
Materials: Magnets, aluminum alloy, stainless steel

Applications

Semiconductor Manufacturing Equipment: Devices requiring precise control
Medical Equipment: Long lifespan due to non-contact, wear-free operation
Food Machinery: Hygienic power transmission required for non-contact operation
Printing Machines: Devices requiring high-precision power transmission
Automation Machinery: Easy installation with a space-saving design

The Magnetic Coupling MP Series provides a high-performance solution with non-contact coupling utilizing magnetic attraction and repulsion, offering space-saving design and high torque capability with its right-angle miter structure.
