MIKI PULLEY

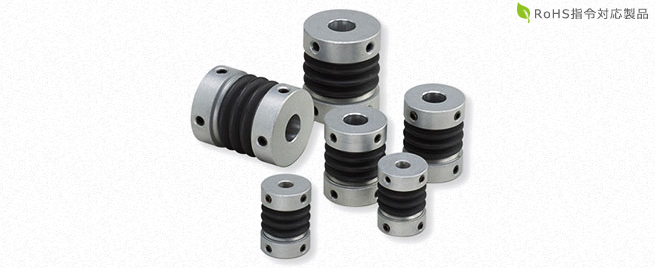

The Bellows Flex Coupling CHP uses highly elastic polyester resin boots, providing excellent vibration absorption and minimizing shaft reaction force due to mounting errors. The coupling is designed with an integrated structure of aluminum alloy hubs and boots, making it compact and lightweight. This ensures easy installation and removal, and there is no backlash. It delivers excellent performance in a variety of applications, including financial terminal equipment, inspection equipment, and printing machines.

Features

- High Elasticity Polyester Resin: Provides excellent vibration absorption performance and low reaction force.
- Integrated Structure: The integrated structure of aluminum alloy hubs and polyester resin boots is compact and lightweight.
- Low Noise: Vibration absorption reduces noise during power transmission.
- Easy Maintenance: Easy to install and remove.
- Backlash-Free: Ensures accurate power transmission.

Specifications

Model: CHP
Torque Range: 0.4 to 1.5 N·m
Operating Temperature Range: -20°C to +60°C
Element Used: Polyester resin
Mounting Method: Set screw
Maximum Rotation Speed: 9,000 to 5,500 min⁻¹ (depending on the model)
Shaft Misalignment Absorption Range: Parallel misalignment: ±0.5 mm, Angular misalignment: ±10°

Applications

Financial Terminal Equipment: Devices requiring high-precision power transmission
Inspection Equipment: Equipment requiring accurate power transmission and vibration absorption
Printing Machines: Machines requiring stable power transmission and low noise

The Bellows Flex Coupling CHP minimizes vibration and shaft reaction force with high elasticity polyester resin boots, making it a high-performance coupling suitable for various applications, from financial terminal equipment to printing machines.
