Machine element

MIKI PULLEY

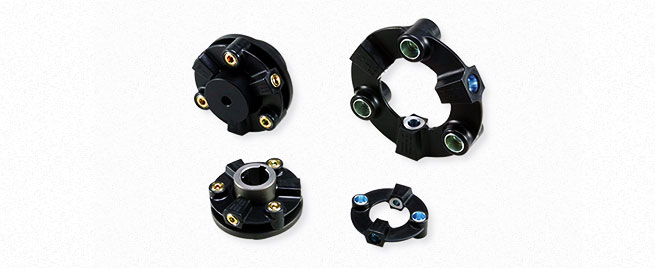

High-quality nylon resin is used for the cushioning material. This structure and element material are rigid in the torsional direction, have excellent flexibility in the prying and axial directions, and have no backlash. Achieves accurate power transmission while absorbing vibration and shock. The model has a simple structure consisting of an element (buffer material), cylindrical hub, flange hub, and bolts for fixing the element.

Features

High-Quality Nylon Resin: Used as the cushioning material, achieving high durability.
Excellent Flexibility: Rigid in the torsional direction while maintaining excellent flexibility in the axial direction.
Backlash-Free: Ensures accurate power transmission.
Vibration and Shock Absorption: Superior vibration absorption performance extends the lifespan of machinery.
Simple Structure: Composed of the element, hub, and bolts, making installation easy.

Specifications

Model: CF-X
Torque Range: 10 to 500 N·m
Operating Temperature Range: -30°C to +100°C
Element Used: High-quality nylon resin
Mounting Method: Bolt fixing
Backlash: None
Maximum Rotation Speed: 6000 min⁻¹
Shaft Misalignment Absorption Range: Parallel misalignment: ±0.5 mm, Angular misalignment: ±1.0°

Applications

Construction Machinery: Machines requiring high durability
Agricultural Machinery: Machines requiring vibration absorption
Marine Equipment: Devices that withstand harsh environments
Generators: Power generation devices requiring stable power transmission
Special Vehicles: Vehicles requiring high durability and reliability
Machine Tools: Machines requiring high-precision power transmission
Testing Equipment: Testing devices requiring accurate power transmission and vibration absorption
Wind Power Generators: Power generation devices requiring high durability and reliability

The Centaflex Coupling CF-X utilizes high-quality nylon resin for superior vibration absorption and precise power transmission. It is a high-durability coupling suitable for diverse applications, making it ideal for a wide range of machinery and equipment.
