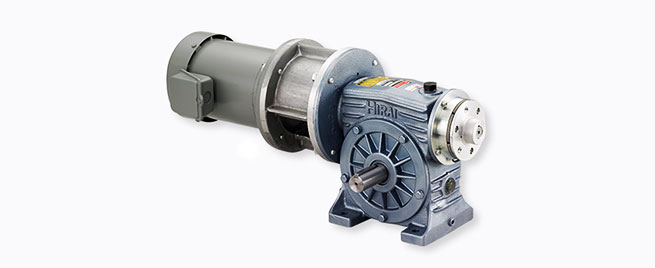

The Electromagnetic Clutch and Brake Unit CMW is a high-precision control unit that integrates a clutch, brake, worm reducer, and motor. This unit consolidates the functions of the drive components, reducing installation space and eliminating the need for alignment and machining of the mounting parts. It is easy to handle, requiring only connection of the output shaft to the load side. It achieves high-precision control and versatile applications, making it ideal for printing machines, bookbinding machines, woodworking machines, and semiconductor manufacturing equipment.

Features

High-Precision Control: Enables high-precision positioning and complex motion control.
Integrated Design: Combines clutch, brake, worm reducer, and motor for easy installation.
Space-Saving: Consolidates drive functions to reduce installation space.
Versatile Applications: Ideal for printing machines, bookbinding machines, woodworking machines, and semiconductor manufacturing equipment.
High Durability Design: Durable enough to withstand high-tension usage.

Specifications

Model: CMW
Torque Range: 10 to 200 N·m
Operating Temperature Range: -10°C to +40°C
Operating Voltage: AC220V
Reduction Ratio: 1/10 to 1/60
Motor Output: 0.1 to 5.5 kW
Clutch and Brake Structure: Integrated design
Mounting Method: Integrated motor, clutch, brake, and reducer

Applications

Printing Machines: High-precision braking required for printing processes
Bookbinding Machines: High-speed and stable operation required for bookbinding work
Woodworking Machines: High-tension usage required for woodworking processes
Semiconductor Manufacturing Equipment: Precise braking force required for semiconductor manufacturing

The Electromagnetic Clutch and Brake Unit CMW is a high-performance unit that achieves high-precision control and versatile applications. Its integrated, space-saving design makes it ideal for various machines by combining the clutch, brake, worm reducer, and motor.
