MIKI PULLEY

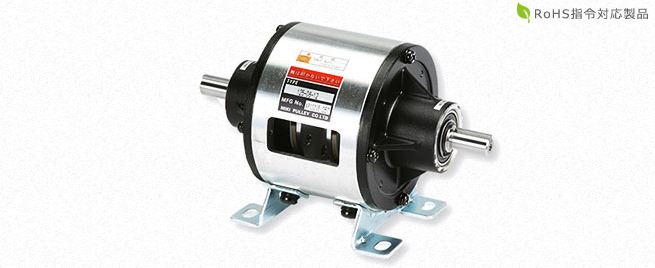

The Electromagnetic Clutch and Brake Unit 125 is a drip-proof clutch and brake unit housed in a lightweight alloy casing with a face-to-face shaft structure. Power is supplied from the input shaft and continuously output from the output shaft. The output shaft is braked by cutting off the clutch current and energizing the brake. There are two types of mounting feet, steel plate base, and cast iron base (E type), making installation easy and ensuring long life. This unit delivers excellent performance in various applications, including printing machines, bookbinding machines, woodworking machines, and semiconductor manufacturing equipment.

Features

High-Precision Control: Enables high-precision positioning and complex motion control.
Drip-Proof Design: The drip-proof design enhances environmental resistance.
Space-Saving Design: Compact face-to-face shaft structure allows easy installation in limited spaces.
Versatile Applications: Ideal for printing machines, bookbinding machines, woodworking machines, and semiconductor manufacturing equipment.
High Durability Design: The mounting feet come in two types, steel plate base and cast iron base, ensuring long life and excellent durability.

Specifications

Model: 125
Torque Range: 2.4 to 160 N·m
Operating Temperature Range: -10°C to +40°C
Operating Voltage: DC24V
Clutch Structure: 101-□-15 type
Brake Structure: 111-□-12 type
Mounting Method: Face-to-face shaft structure, drip-proof design
Maximum Rotation Speed: 3000 min⁻¹
Weight: 1.2 to 49 kg (depending on model)

Applications

Printing Machines: High-precision braking required for printing processes
Bookbinding Machines: High-speed and stable operation required for bookbinding work
Woodworking Machines: High-tension usage required for woodworking processes
Semiconductor Manufacturing Equipment: Precise braking force required for semiconductor manufacturing

The Electromagnetic Clutch and Brake Unit 125 is a high-performance brake unit that achieves high-precision control and versatile applications. Its drip-proof design ensures long life and space-saving, making it ideal for various machines.
