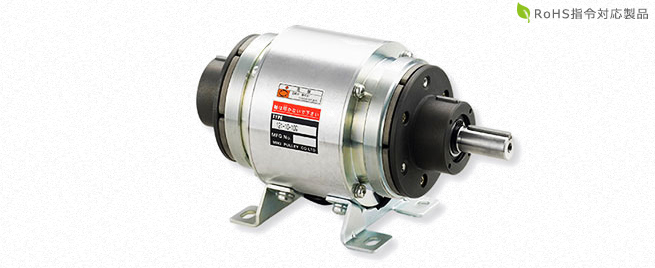

The Electromagnetic Clutch and Brake Unit 121 adopts the same basic structure as the Clutch and Brake Unit 121-□-20 type, featuring a through-shaft structure. This double clutch unit, with clutches (101-□-15 type) arranged on both sides of the drum, achieves space-saving design and high tension capability. It is adaptable for various applications such as two-speed changes, forward and reverse operation, and power distribution. Additionally, the structure with wide bearing span provides strong radial load support, allowing the attachment of V-pulleys and spur gears.

Features

Double Clutch Structure: Clutches arranged on both sides of the drum, supporting two-speed changes and forward/reverse operations.
High Durability Design: Wide bearing span allows usage under high tension.
Space-Saving Design: Compact through-shaft structure for easy installation.
Versatile Applications: Ideal for printing machines, bookbinding machines, woodworking machines, and semiconductor manufacturing equipment.
Easy Installation: The structure with wide bearing span allows easy attachment of V-pulleys and spur gears.

Specifications

Model: 121(10G)
Torque Range: 5 to 320 N·m
Operating Temperature Range: -10°C to +40°C
Operating Voltage: DC24V
Clutch Structure: 101-□-15 type
Brake Structure: Radial load support
Mounting Method: Through-shaft structure with wide bearing span

Applications

Printing Machines: High-precision braking required for printing processes
Bookbinding Machines: High-speed and stable operation required for bookbinding work
Woodworking Machines: High tension usage required for woodworking processes
Semiconductor Manufacturing Equipment: Precise braking force required for semiconductor manufacturing

The Electromagnetic Clutch and Brake Unit 121 provides high-performance braking in a space-saving design, adaptable for a wide range of applications with its double clutch structure and high durability design.
