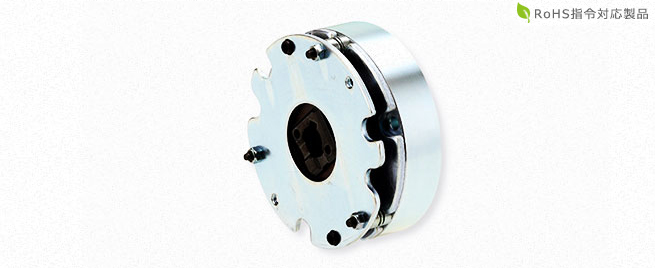

The Mikipulley Non-Excited Brake BXH is a reliable emergency stop and holding brake that delivers high braking torque despite its compact design. It offers twice the braking torque of the conventional BXL model while maintaining the same dimensions. It is suitable for a variety of applications, including various motors, multi-joint robots, actuators, machine tools, forklifts, aerial work platforms, hoists, electric carts, electric shutters, medical devices, and wind turbines.

■ Features

- High Torque Design: Achieves twice the torque compared to the same dimension BXL model
- Compact Size: Can be installed in space-limited environments
- Initial Torque 100%: Satisfies the rated torque from initial use, eliminating the need for break-in operation
- Low Noise: Operates quietly to maintain a silent environment
- Long Life: Designed for durability, ensuring long-term use
- Versatile: Can be used in various fields including motors, industrial machinery, and mobile devices

■ Specifications

Torque Range: 4–44 N·m
Operating Temperature Range: -10℃ to +40℃
Backlash: Minimal
Dimensions: Same as BXL model
Power Supply Voltage: DC24V, DC45V, DC90V, DC180V
Materials: Made from high-durability materials
Silent Design: Special armature reduces high-frequency friction noise

■ Applications

- Various Motors: articulated robots, actuators, machine tools, forklifts, aerial work vehicles, hoists, electric carts, electric shutters, medical equipment, wind power generators
- Multi-Joint Robots: Compact design ensures robot operation space
Actuators: Ideal for actuators requiring precise control
- Machine Tools: Perfect for use in machine tools that require high torque
- Forklifts and Aerial Work Platforms: Ensures safety with high braking force
- Medical Devices: Quiet and long-lasting, making it reliable for medical environments
- Wind Turbines: Ideal for pitch drive systems in wind turbines

The Non-Excited Brake BXH, with its high torque and compact design, is suitable for a wide range of applications, enhancing the safety and efficiency of various industrial machines.
