MIKI PULLEY

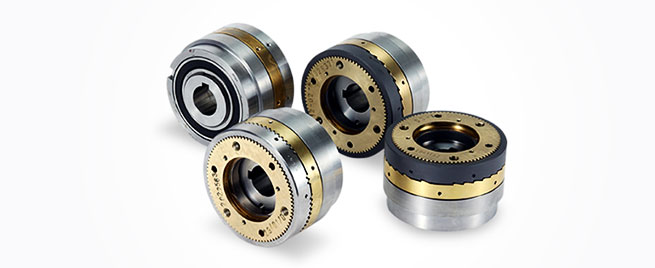

Miki Pulley's electromagnetic tooth clutch 546 model is an excitation-operated clutch that transmits torque through tooth engagement. This type of torque transmission allows the compact clutch to transmit very high torque. There are two types available: full position engagement, where the teeth engage around the entire circumference, and single position engagement, where the teeth engage at only one point per rotation. This clutch is suitable for use in various industrial machines such as printing machines, packaging machines, filling machines, food machinery, and medical devices.

Features

- High Torque Transmission: Torque is transmitted through tooth engagement, achieving high torque in a compact size.
- Full Position and Single Position: Two types of engagement options to choose from: full circumference and single point.
- Quick Engagement and Release: The teeth do not form a magnetic circuit, allowing for quick engagement and release.
- Easy Installation: Built-in bearings eliminate the need for centering the stator and rotor.
- Oil Environment Compatibility: Can be used in oil environments depending on usage conditions.

Specifications

Sizes: 12, 13, 15, 21, 23, 25, 31, 32
Torque Range: 17.5N·m to 2200N·m
Coil Voltage: DC24V
Allowable Rotation Speed: 1500min⁻¹
Operating Temperature Range: 0℃ to 40℃
Weight: 0.5kg to 15.3kg
Bearings: 6004, 6005, 6007, 6009, 6011, 6014, 6017, 6020

Applications

Printing Machines: Supports high-precision printing processes.
Packaging Machines: Enables efficient packaging operations.
Filling Machines: Contributes to accurate filling operations.
Food Machinery: Supports safe and efficient food processing.
Medical Devices: Ideal for high-reliability medical equipment.

Miki Pulley's electromagnetic tooth clutch 546 model achieves high torque transmission and versatility, making it the ideal choice for various industrial machines.
