Machine element

MIKI PULLEY

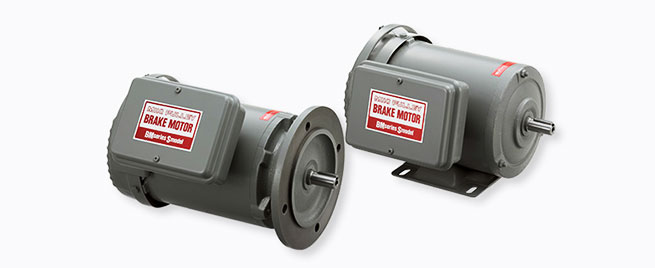

Miki Pulley's brake motor BMS model incorporates an internal non-excitation brake and a compact power supply without changing the dimensions of a general-purpose motor. When the power is on, the motor shaft rotates, and when the current is cut off, the motor shaft stops. As a non-excitation brake model, it also supports emergency braking during power outages. Additionally, it has a release lever, allowing manual brake release even when the power is off. It is ideal for printing machines, binding machines, food machinery, packaging machinery, and medical devices.

Features

- Internal Non-Excitation Brake: The motor shaft rotates when the power is on and stops when the current is cut off.
- No Dimensional Changes: Easy installation without altering the dimensions of a general-purpose motor.
- Emergency Braking: Automatically stops the motor shaft during power outages.
- Release Lever: Allows manual brake release.
- Long Life Design: Large friction area ensures long brake life.
- Quiet Operation: Rotating parts are fully integrated with the motor shaft, enabling quiet operation.

Specifications

Output: 0.2kW, 0.4kW, 0.75kW, 1.5kW
Torque: 2N·m, 4N·m, 8N·m, 15N·m
Voltage: DC90V
Motor Rotation Speed: 4 poles, 50Hz / 60Hz
Operating Environment: -10℃ to +40℃
Weight: 0.2kW model: 7.5kg, 0.4kW model: 10.5kg, 0.75kW model: 16.5kg, 1.5kW model: 23kg

Applications

Printing Machines: Supports high-speed, high-precision printing.
Binding Machines: Ensures stable binding operations.
Food Machinery: Supports hygienic and efficient food processing.
Packaging Machinery: Enables high-speed, accurate packaging operations.
Medical Devices: Supports reliable operation of medical equipment.

Miki Pulley's brake motor BMS model provides high reliability and safety, making it the ideal choice for various industrial machines.
