MIKI PULLEY

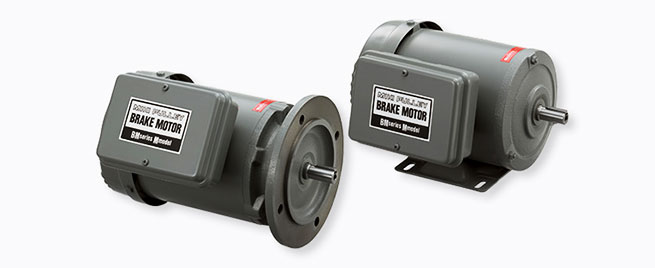

Miki Pulley's brake motor BMM model is a product that incorporates an internal excitation brake and a compact power supply while maintaining the dimensions of a general-purpose motor. When current flows through the brake coil, the motor shaft is braked, and when the current is cut off, the brake is instantly released. Using a constant load type leaf spring, it consistently delivers stable braking force. It is also suitable for various applications such as printing machines, binding machines, food machinery, packaging machinery, and medical devices.

Features

- Internal Excitation Brake: Brakes the motor shaft by passing current through the brake coil.
- No Dimensional Changes: Easy installation without altering the dimensions of a general-purpose motor.
- Stable Braking Force: Provides consistent braking force with a constant load type leaf spring.
- Instant Release: Brake is instantly released when the current is cut off.
- Long Life Design: Large friction area ensures long brake life.

Specifications

Output: 0.2kW, 0.4kW, 0.75kW, 1.5kW, 2.2kW, 3.7kW
Torque: 2.5N·m, 5N·m, 10N·m, 20N·m, 30N·m, 50N·m
Voltage: DC180V
Motor Rotation Speed: 4 poles, 50Hz / 60Hz
Operating Environment: -10℃ to +40℃
Weight: 0.2kW model: 7kg, 0.4kW model: 10kg, 0.75kW model: 16.5kg, 1.5kW model: 22kg, 2.2kW model: 32kg, 3.7kW model: 47kg

Applications

Printing Machines: Supports high-speed, high-precision printing.
Binding Machines: Ensures stable binding operations.
Food Machinery: Supports hygienic and efficient food processing.
Packaging Machinery: Enables high-speed, accurate packaging operations.
Medical Devices: Supports reliable operation of medical equipment.

Miki Pulley's brake motor BMM model provides high reliability and stable braking force, making it the ideal choice for various industrial machines.
