MIKI PULLEY

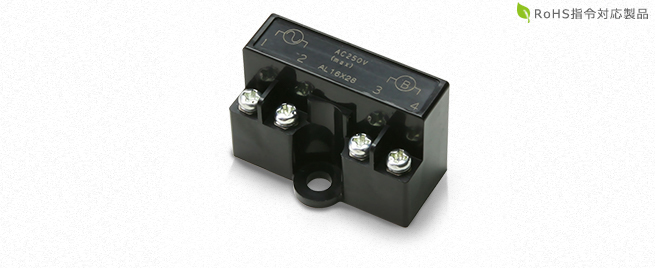

Miki Pulley's electromagnetic clutch and brake power supply BEW(S) model is a compact power supply designed for electromagnetic brakes with rated voltages of DC45V, 90V, and 180V. It can operate with any voltage specification of AC100V, AC200V, or AC400V by simply connecting it. The design is compact and lightweight, ensuring easy handling. It is provided as a simple power supply with a terminal block type, only requiring connections on the input and output sides.

Features

- Versatile Input Voltage: Compatible with AC100V, AC200V, and AC400V inputs, making it usable in various environments.
- High Reliability: Stable operation even in harsh environments due to the resin-molded case.
- Compact and Lightweight Design: Saves installation space and is easy to handle.
- Easy Connection: Terminal block type with direct current cut-off terminal for quick connections.
- Half-Wave Rectification: Simple structure with low cost.

Specifications

Input Voltage: AC100V / 200V / 400V ±10%, 50/60Hz
Output Voltage: DC 45V / 90V / 180V
Maximum Output Current: 1.0A
Maximum Output Capacity: 45W / 90W / 180W
Protection Functions: Overvoltage protection, overcurrent protection, overheating protection
Insulation Resistance: DC 500V, Megger 100MΩ (between terminals and body)
Dielectric Strength: AC 1000V, 50Hz, 1 minute (between terminals and body)
Operating Environment: -10℃ to +50℃, 10% to 90% RH (non-condensing)
Weight: 0.021kg

Applications

Machine Tools: Supports high-precision parts processing.
Pumps: Ensures reliable power transmission.
Molding Machines: Supports delicate molding operations.
Printing Machines: Enables high-speed, high-precision printing.
Palletizing Robots: Supports high-efficiency operation in automated lines.
Various Jigs and Tools: Supports diverse machining and assembly tasks.

Miki Pulley's electromagnetic clutch and brake power supply BEW(S) model combines reliability and convenience, making it the ideal choice for various industrial applications.
