Machine element

MIKI PULLEY

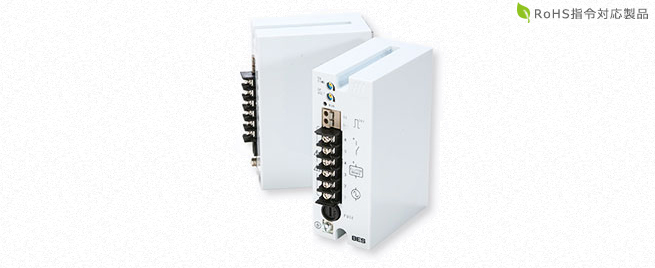

Miki Pulley's electromagnetic clutch and brake power supply BES model is a power supply developed for general high-speed control, with rated voltages of DC24V/45V/90V, enabling high-frequency and high-precision operation. By momentarily applying overexcitation voltage, it shortens the armature attraction time, dramatically improving the operating performance of electromagnetic clutches and brakes. Its compact, high-capacity design allows for flexible installation and a wide range of applications.

Features

- Overexcitation Function: Instantly applies high voltage, enabling high-frequency and high-precision operation.
- Compact, High-Capacity Design: Saves installation space while ensuring stable high-capacity supply.
- Easy Settings: Pre-set optimal values eliminate the need for troublesome adjustments.
- Protection Functions: Equipped with overvoltage, overcurrent, and overheating protection.
- Silent Design: Suppresses operating noise, allowing for quiet operation.

Specifications

Input Voltage: AC 100V / 200V ±10%, 50/60Hz
Output Voltage: DC 24V / 45V / 90V
Maximum Output Current: 2.0A / 4.0A
Protection Functions: Quick-acting fuse on input side (5A), overvoltage protection, overcurrent protection, overheating protection
Insulation Resistance: DC 500V, Megger 100MΩ (between terminals and body)
Dielectric Strength: AC 1000V, 50Hz, 1 minute (between terminals and body)
Operating Environment: -10℃ to +50℃, 10% to 90% RH (non-condensing)
Weight: 0.3kg / 0.7kg

Applications

Machine Tools: Supports high-precision parts processing
Pumps: Ensures reliable power transmission
Molding Machines: Supports delicate molding operations
Printing Machines: Enables high-speed, high-precision printing
Palletizing Robots: Supports high-efficiency operation in automated lines
Various Jigs and Tools: Supports diverse machining and assembly tasks

Miki Pulley's electromagnetic clutch and brake power supply BES model is the ideal choice for industrial machines and automation equipment that require high-frequency and high-precision operation.
