Machine element

MIKI PULLEY

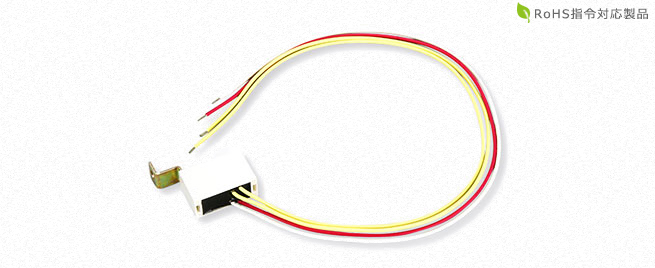

Miki Pulley's power supply for electromagnetic clutches and brakes BEM model is a compact power supply designed for electromagnetic brakes, operating with any of the voltage specifications AC100V, AC200V, or AC400V by simply connecting it. The resin-molded case allows it to withstand harsh environments such as dust, while its compact and lightweight design offers high reliability. With output voltages of DC45V, DC90V, and DC180V, it is suitable for various industrial applications.

Features

- Versatile Input Voltage: Compatible with AC100V, AC200V, and AC400V inputs, making it usable in various environments.
- High Reliability: Stable operation even in harsh environments due to the resin-molded case.
- Compact and Lightweight Design: Saves installation space and is easy to handle.
- Easy Connection: Simple design that operates by just connecting the input.
- High-Efficiency Output: Provides DC45V, DC90V, and DC180V output for diverse applications.

Specifications

Input Voltage: AC100V / 200V / 400V
Output Voltage: DC 45V / 90V / 180V
Maximum Output Current: 1.0A
Maximum Output Capacity: 180W
Case Material: Resin-molded
Operating Environment: -10℃ to 50℃, 10% to 90% RH (non-condensing)
Dimensions: Vary by model, refer to PDF for details
Weight: 0.5kg to 1.0kg

Applications

Machine Tools: Supports high-precision parts processing
Pumps: Ensures reliable power transmission
Molding Machines: Supports delicate molding operations
Printing Machines: Enables high-speed, high-precision printing
Palletizing Robots: Supports high-efficiency operation in automated lines
Various Jigs and Tools: Supports diverse machining and assembly tasks

Miki Pulley's power supply for electromagnetic clutches and brakes BEM model combines high reliability with a compact design, making it an ideal choice for industrial machines and automation equipment.
