MIKI PULLEY

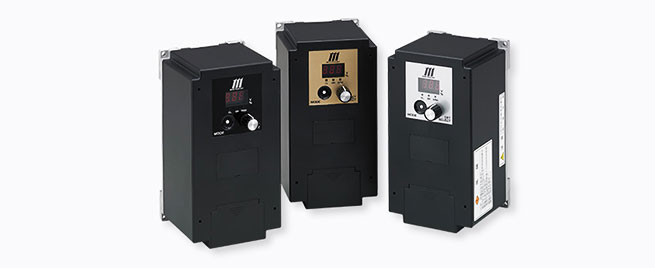

Miki Pulley's electromagnetic clutch and brake power supply BEH model is designed to dramatically improve the operation speed of clutches and brakes, achieving high-frequency and high-precision operation. With overexcitation and reverse excitation functions, it prevents chattering even with large clutches and brakes, and its silent design reduces humming noise. Pre-set optimal values eliminate the need for troublesome adjustments, making it easy to use.

Features

- Overexcitation and Reverse Excitation Functions: Achieves high-frequency and high-precision operation, preventing chattering.
- Silent Design: Suppresses humming noise from clutches and brakes.
- Easy Setting: Pre-set optimal values eliminate the need for adjustments.
- High-Precision Control: Enables fast and stable operation.
- Protection Functions: Equipped with overvoltage, overcurrent, and overheating protection.

Specifications

Input Voltage: AC 200V / 220V ±10%, single-phase, 50/60Hz
Output Voltage: Overexcitation Voltage: Initial value 100V (0-250V variable), Steady-State Excitation Voltage: Initial value 24V (0-250V variable), Reverse Excitation Voltage: Initial value 100V (0-250V variable)
Output Current: 2A / 4A
Applicable Clutch/Brake Size: 06-31 (Miki Pulley)
Operating Environment: -10 to +50℃, 10 to 90% RH
Weight: 0.85kg / 0.9kg

Applications

Machine Tools: Supports high-precision parts processing.
Pumps: Ensures reliable power transmission.
Molding Machines: Supports delicate molding operations.
Printing Machines: Enables high-speed, high-precision printing.
Palletizing Robots: Supports high-efficiency operation in automated lines.
Various Jigs and Tools: Supports diverse machining and assembly tasks.

Miki Pulley's electromagnetic clutch and brake power supply BEH model is the ideal choice for industrial machines and automation equipment demanding ultra-fast and high-precision operation.
