Machine element

MIKI PULLEY

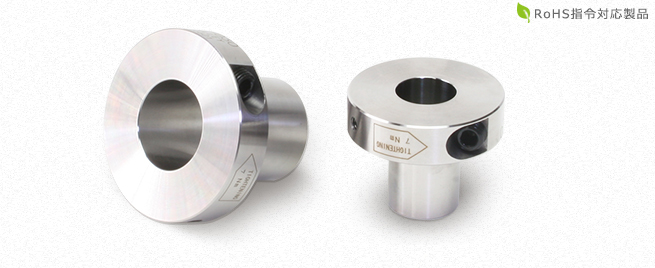

Miki Pulley's hydraulic shaft lock ETP-E Plus is a high-performance Posilock that allows easy and quick coupling of the shaft and hub by tightening a single bolt placed on the flange face. Compared to traditional mechanical systems, it requires fewer bolts for tightening and achieves high concentricity (0.02mm) due to the absence of keyways. It is ideal for applications that require high precision and frequent attachment and detachment.

Features

- High-Precision Coupling: Achieves high-precision coupling with a concentricity of 0.02mm, allowing for accurate positioning.
- Easy and Quick Installation: Can be quickly installed with a single bolt.
- Space-Saving Design: Radial tightening structure saves workspace.
- High Torque Transmission: Achieves high transmission torque and provides strong coupling force.
- Various Specifications: Available in standard steel, electroless nickel-plated, and stainless steel versions.

Specifications

Material: SCM435 or equivalent (standard type), electroless nickel-plated (rust-resistant type), SUS630 or equivalent (stainless steel type)
Compatible Shaft Diameter: 15 mm to 100 mm
Maximum Torque: 17000 N·m
Maximum Thrust: 280000 N
Operating Temperature Range: -30℃ to 85℃
Concentricity: 0.02 mm

Applications

Machine Tools: Ideal for high-precision parts processing
Pumps: Ensures reliable power transmission
Molding Machines: Supports delicate molding operations
Printing Machines: Enables high-speed, high-precision printing
Palletizing Robots: Supports high-efficiency operation in automated lines
Various Jigs and Tools: Supports diverse machining and assembly tasks

Miki Pulley's hydraulic shaft lock ETP-E Plus is the ideal choice for industrial machines and automation equipment, combining high-precision coupling with easy and quick installation.
