Machine element

MIKI PULLEY

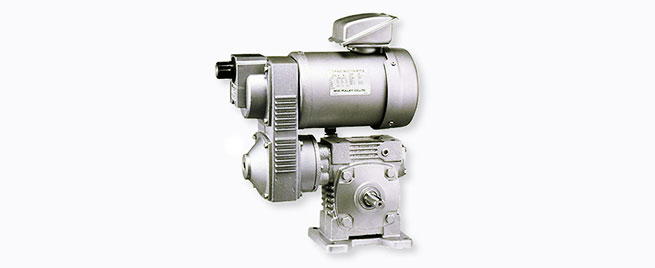

Miki Pulley's solid shaft geared motor AXP is a model that incorporates a belt-type variable speed drive into the solid shaft geared motor AXM. This product is approximately 20% lighter and smaller than conventional belt-type variable speed drives, achieving high space-saving performance for the 0.4kW model. Additionally, it enables high-torque operation in low-speed ranges, which is challenging for inverters, delivering excellent performance in various industrial applications.

Features

- Lightweight and Compact: Achieves approximately 20% weight reduction and miniaturization compared to conventional models.
- High-Torque Operation: Capable of high-torque operation in low-speed ranges, accommodating operating conditions that are difficult for inverters.
- Maintenance-Free: Sealed structure and special oil ensure long-term maintenance-free operation.
- Flexible Installation: Versatile design allows installation in various directions.
- Environmental Resistance: Uses heat-resistant belts and a sealed structure to ensure high environmental resistance.

Specifications

Motor Output: 0.2 kW to 1.5 kW (4 poles)
Power Supply Voltage: Three-phase, 200 V/50 Hz, 200 or 220 V/60 Hz
Reduction Ratio: 1/10, 1/20, 1/30, 1/40, 1/50, 1/60
Structure: Sealed type
Material: Aluminum die-cast housing

Applications

- Industrial Machinery: Conveyor systems, packaging machines, food processing machines
- Automation Equipment: Robotic arms, assembly lines, transportation systems
- Others: Various devices requiring high-precision and high-efficiency power transmission

Miki Pulley's solid shaft geared motor AXP is an ideal choice for industrial machinery and automation equipment, combining high-torque operation with a lightweight and compact design.
