SVW Integrated Technology Co., Ltd.
Most recent update: 2023-06-01
PR message
SVW specialize in cleanroom filtration solutions tomeet a variety of applications and industries. We offer a broad range of high-quality filters, cleanroom equipment and lab furniture to meet the needs of applications from Class 100,000 to Class 10.
FFU Fan-Filter Unit
FFU is the simplest purifying equipment consisting of fan and HEPA filter, and the most basic type in air purifying equipment. Due to the one‐to‐one correspondence between HEPA filter and fan, a negative pressure area is formed outside the unit case to enable negative pressure sealing function. FFU may be used separately or in combination to achieve higher cleanness easily. FFU makes the design of clean room easier and more reliable. FFU, characterized by low energy consumption, low noise and low operating cost, is widely applied to unidirectional flow and turbulent flow clean room and working station, unidirectional flow hood, clean booth and local purifying equipment in micro‐electronics, electronics, optics, bioengineering and other industries.
OPTIONS:
∘ DOP Test Port
RAMES:
∘ Zinc Aluminized Sheet
∘ SS
FAN:
∘ DC
∘ AC
SPEED CONTROL:
∘ Five speed control
∘ Stepless speed
100% MPPS test for all HEPA/ULPA Our MPPS testing equipment complies with the latest European official standard EN1822‐1998. Comprehensive testing of filter efficiency, resistance, air volume, dust holding capacity, etc.
We also work with different types of filters. for example Filter Pad
∘ Cardboard Filter
∘ Carbon Filter
∘ Panel Filter
∘ Bag Filter
∘ V-Bank
∘ Separator Filter
∘ HEPA/ULPA
∘ HEPA Box etc.
**You can find product details on the following website
HEPA BOX
HEPA box, also called filter housing, is the ideal terminal filter device for air conditioning systems requiring purification to meet the cleanroom level. It can provide the desired static pressure before airing the HEPA, thus making the air outlet uniformity. We are extremely focused on the details of our products, making our HEPA box superior to the most products on the market.
We use one‐piece bending design together with robot welding joint to ensure excellent leak‐proof performance. Representative filter from each batch type and production run are subjected to a complete test flow evaluation to determine efficiency, pressure drop and dust holding capacity. Airflow pipe can be connected directly through top access or side access with either circular or rectangular inlet.
OPTIONS:
∘ Match gasket HEPA
∘ Match gel seal HEPA
∘ Top connected
∘ Side connected
FRAMES:
∘ Steel Powder Coated
∘ Aluminum
∘ SS 304
GRILLE:
∘ Perforated
∘ Louvers
∘ Swirl
Air Shower
Air Showers are enclosed chamber placed at the entry and exit points of a cleanroom or other controlled environment.
Using high-velocity jets of air and HEPA or ULPA air filter systems, cleanroom air showers remove loose contaminants from people and products before they enter the cleanroom, reducing or eliminating product defects for increased yields.
Contaminants are easily transported by people and objects and a simple spec of lint or debris could cause issues in some cleanroom environments.
Therefore, cleanroom air showers have become a vital component in maintaining the cleanliness of cleanrooms and other clean-critical environments.
FRAME:
∘ SS304
∘ SS316
∘ Steel powder coated
AIR SPEED: z25m/s
AIR SHOWER TIME: 0-99s adjustable
**You can find product details on the following website
Biological Safety Cabinet - Class II A2
Class II A2 Biological safety cabinet (BSC) is a box-type air purification negative pressure safety device that can prevent some dangerous or unknown biological particles from escaping aerosols during experimental operation. It is widely used in scientific research, teaching, clinical inspection and production in the fields of microbiology, biomedicine, genetic engineering, biological products, etc. It is the most basic safety protection equipment in the first-level protective barrier of laboratory biosafety.
Vertical laminar negative pressure model, 70% of the airflow is filtered and recycled, and 30% of the airflow can be discharged into the room or connected to the exhaust system after being filtered. Safety interlock system for sterilization systems.
Large-screen LCD display, real-time monitoring of running status, password manage ment can be set to prevent misoperation, display the life of the filter and the running time of the blower and UV lamp. Each biological safety cabinet is factory tested for safety and product performance in accordance with international standards.
**You can find product details on the following website
Transfer Trolley / Clean Operation Bench
Transfer trolley is used for the storage and the transfer of products that are sensitive to contamination, between two class A areas, and through a class C area.
A laminar air flow class ISO 5 is maintaining a positive pressure within the transfer trolley avoiding any cross contamination.
The transfer trolleys are equipped with a system of electrical plug / embarked battery, that maintain the laminar flow conditions in the transfer trolley at all times.
**You can find product details on the following website

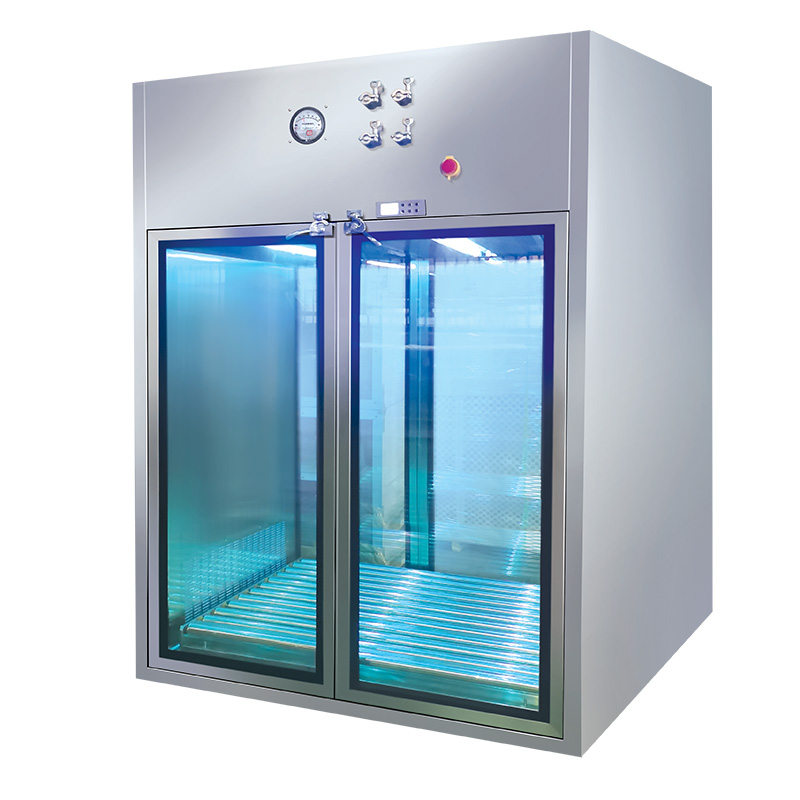

Transfer Hatch
Transfer Hatch is used for transferring materials. The hatch are alI made of SS 304 with a surface finish of Ra< 0.8 µm There will be climbing ramp and rollers made of SS304 at the bottom of the hatch for convenience of material transfer.
The doors are interlocked by magnetic device and provide a buffer area for transferring material/ product through the room with different classes. Provided with UV germicidal lamp, or ozone generator sterilization system based on the user's demand.
OPTIONS :
∘ Electrical or Mechanical interlocking system
∘ Air Shower Type
∘ UV Lamp Sterilization
∘ Easy-to-install by Floor mounted or Pit mounted
∘ Customized Size and Function Design
**You can find product details on the following website

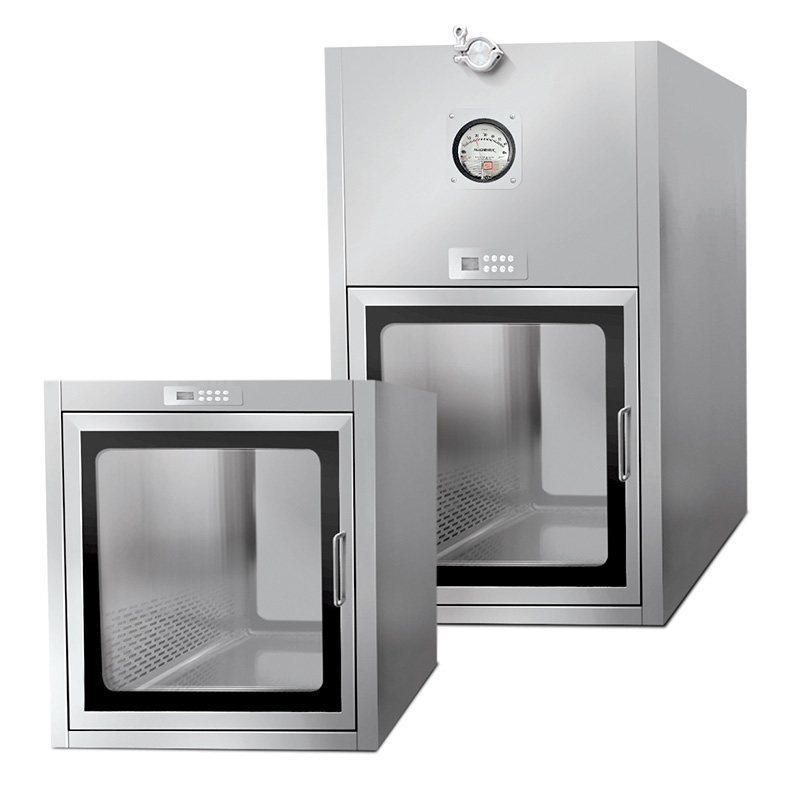

Pass box include dynamic pass box and static pass box.
It is used for the transfer of materials/ products between two areas of different classes.
The doors are interlocked by magnetic device and provide a buffer area for transferring material/ product through the room with different classes.
Provided with UV germicidal lamp, or ozone generator steriIization system based on the user's demand.
OPTIONS :
∘ Electrical or Mechanical interlocking system.
∘ Dynamic Type
∘ UV Lamp Sterilization
∘ Easy-to-install by Wall mounted Floor mounted or Pit mounted
∘ Customized Size and Function Design
**You can find product details on the following website
| Company name | SVW Integrated Technology Co., Ltd. | Website URL | https://svw-integratedtech.com/ |
|---|---|---|---|
| Street address |
Bangnatai, Bangna Bangkok Kingdom of Thailand
[See map] |
Person in charge | Nattapong |
| Telephone number | +66-2-744-6300 | Fax number | +66-2-744-6303 |
| Capital | 2,000,000 THB | Employees | Unregister |
| Annual sales | Unregister | EMIDAS Member Number | 101092 |
| Main 3 products |
|
||
