PR message
GETABEC can produce boilers according to national and international standards. Today we can deliver steam generators and pressure vessels with ASME standard or CE mark standards, which are accepted and trusted in the global industry.
Electric boilers generate steam quickly and are easy to install, especially in areas with limited space and without the possibility of using fuel. The electrical boiler is clean because there is no fuel handling and combustion system. Especially suitable for a small amount of steam generation, but using electrical energy to generate steam.
Getabec model under EN 12953/ASME Standards
- Smaller but higher efficiency
- Economizer can be installed to maximize efficiency for diesel and gas fuels.
- Rapid generation of steam within 5-10 minutes
- High efficiency with low rate of heat loss
- Available in sizes ranged from 100kg/h to 2,500 kg/h; and the special model 5,000 kg/h
A Water Tube Boiler is a boiler in which water circulates in tubes heated externally by the fire. The water tube boilers are used for high-pressure boilers. Fuel is burned inside the furnace, creating hot gas which heats water in the steam-generating tubes. The GETABEC water tube Boiler is a natural circulation boiler without any forced water flow, designed under the license of ERK Eckrohrkessel GmbH, Germany.
The unique advantages are
- Self-supporting design
- Quick start-up and rapid response
- High load variation speeds
- High pressure variation speeds
- High level of steam purity
- Custom designs & adjustments to available footprint
- Adaptable to all types of combustion system Low maintenance and high reliability
- Fuel Flexibility
In order to generate superheated steam, GETABEC three-pass boilers can be equipped with several different superheater systems.
For Lower temperature superheated steam ( superheating by 40 to 60 K ), the superheater is installed within the front reversing chamber. These superheaters also called “steam dryers”, are operated without temperature control. When starting up the boiler, this arrangement does not need any particular measures, such as cooling the superheater or any flue gas side bypasses, as the flue gas temperature in the front reversing chamber is significantly below the scaling temperature of the material used for the superheater tubes.
For Higher steam temperatures , the superheater is installed within the rear reversing chamber. As a result, higher steam temperatures are possible. These superheaters are delivered with various types of temperature control systems. Due to the high temperature in that area, specific safety measures, such as operating on the lowest burner load or cooling during start-up, must be taken before the boiler can be connected to the grid to protect the superheated tubes.
HWO Single Flame Tube Design
Performances of up to 15.6 MW
GETABEC: HWO is the ideal heat generator when quality requirements are high. They are used primarily in district heating plants and characterized by high economic efficiency, operation safety, and low-emission combustion.
HWO-D Double Flame Tube Design
Performances of up to 32 MW
Large scale heating centres and cogeneration units can only be built with large Double Flame Tube hot water generators. Like the steam generators of the HDO-D series, the hot water generators of the HWO-D series have flue gas passes that are entirely separated from each other so that the requirements for low-emission combustion and single-flame operation are met.
GETABEC Thermal oil heater is the most effective and most efficient heat transfer equipment. The use of high-temperature thermal oil made on a mineral oil basis or synthetically as transfer media up an outlet temperature of 350 °C at 10 bar eliminates problems typical for water-steam operation. Our Thermal oil heater is designed as The Three Pass design with forced circulation. Its system operates excellently, safely, reliably and is guaranteed to last for many years.
What we offer?
To use energy economically, GETABEC manufactures waste heat recovery boilers for industrial processes in which waste gas arises at a very high temperature. This happens, for instance, with gas and diesel engines or turbines. Waste Heat Recovery Boilers installed downstream of turbines or engines will utilize the waste gas heat (co-generation of heat and power). Depending on the desired use for the waste heat, the boilers are available as steam or hot water generators

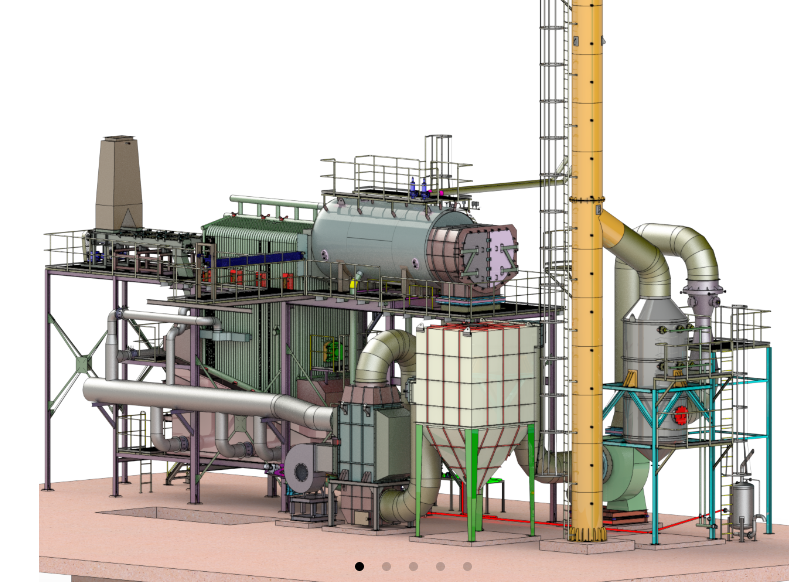

GETABEC unique design for solid fuels such as Wood Chips, Rice Husks, Wood Pallets, Corn cobs, Palm Waste, Briquettes, Cassavas, Wood waste, etc. Using waste generated on-site or supplied by producers, plants are heated, process heat provided and generate electricity. This can be done economically for the small or medium-sized company and the large company. Also, we will convert biomass and industrial waste to clean energy. One of our policies is to offer the customer the highest product quality.
GETABEC Technology and Service will ensure your solution will bring you long term fuel flexibility and satisafction.
