ADESIGN is oriented towards development in the fields of precision engineering and automation.
PR message
ADESIGN specializes in designing, manufacturing, and installing automation systems, improving production lines, supplying equipment, and providing maintenance services, focusing on precision engineering and advanced technology in Vietnam.

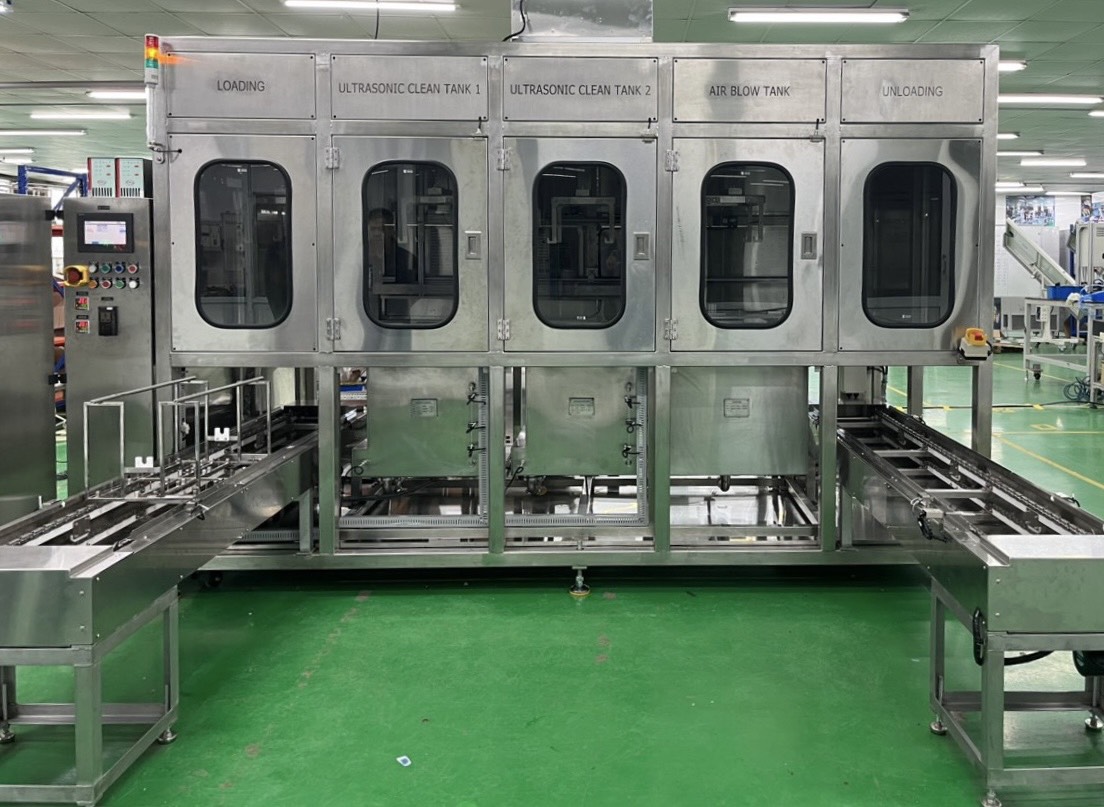

This industrial washing machine is an automated device used for cleaning and drying products in various industries. It is widely applied for electronic components, precision mechanical parts, medical devices, plastic parts, and automotive/motorcycle components.
Specifications:
- Capacity: Barrel: 1,200 pcs/hour, Spacer: 12,000 pcs/hour
- Other parameters: Frequency: 40KHz, Temperature: 30–50°C, Cleaning solution: DI water
- Power supply: 3P-200VAC, 20kVA
- Control system: PLC, HMI
- Dimensions (L×W×H): 3300×3100×2150 mm
This system is specially designed to integrate with CNC lathes, ensuring continuous, accurate, and efficient bar feeding. It is an ideal solution for businesses looking to increase productivity while maintaining high machining quality.
Specifications:
- Voltage: 3-phase 200V, 50Hz
- Air pressure: 0.4 – 0.6 MPa
- Dimensions (L×H×W): 7200×800×1600 mm
- Model:
+ Round steel bars φ19–65mm, length 102–565mm
- One robot serves 4 CNC lathes
- Fully automatic and independent operation
- Supports multiple product codes
- Signal and control integration with CNC machines
- Capable of running two different product codes simultaneously
- Lines can operate independently: Line #1 machining while Line #2 is stopped for JIG replacement
IGBT Circuit Board Pin Pressing and Inspection Machine
In the electronics manufacturing industry, the IGBT (Insulated Gate Bipolar Transistor) is a vital component. IGBTs play a key role in high-power electronic devices such as electric vehicles, solar energy systems, and industrial equipment. Therefore, quality and precision in the production of IGBT circuit boards are critical. Equipped with advanced technologies such as the 5kN Kistler servo press, precise control of pressing force and stroke, Cognex cameras for pin inspection before and after pressing, and MES data management system, this machine ensures superior performance, helping businesses maintain high product quality and optimize production processes.
Specifications:
- Voltage: 3P-380V, 50Hz
- Air pressure: 0.4–0.6 Mpa
- Maximum pressing force: 5kN
- Set pressing force: 2.88kN
- Stroke: 200mm
- Post-press position tolerance: ±0.1mm
- Cycle time: 81s/product
- Pressing unit: Kistler
- Dimensions (L×W×H): 2350×2165×2100 mm
The leak testing machine is an automated device designed to detect ultra-small gas leaks in products using pressure sensors and precise differential pressure measurement technology. This equipment is essential in industries requiring high airtightness such as automotive, electronics, and industrial products involving gas, steam, or liquid systems.
Machine Specifications:
- Test cycle: 5 seconds/product
- Power supply: 3-phase, 200V
- Air pressure: 0.4 – 0.6 MPa
- Leak detection sensitivity: 0 – 5 Pa (high sensitivity)
- Machine dimensions: 1800 x 1100 x 1675 mm

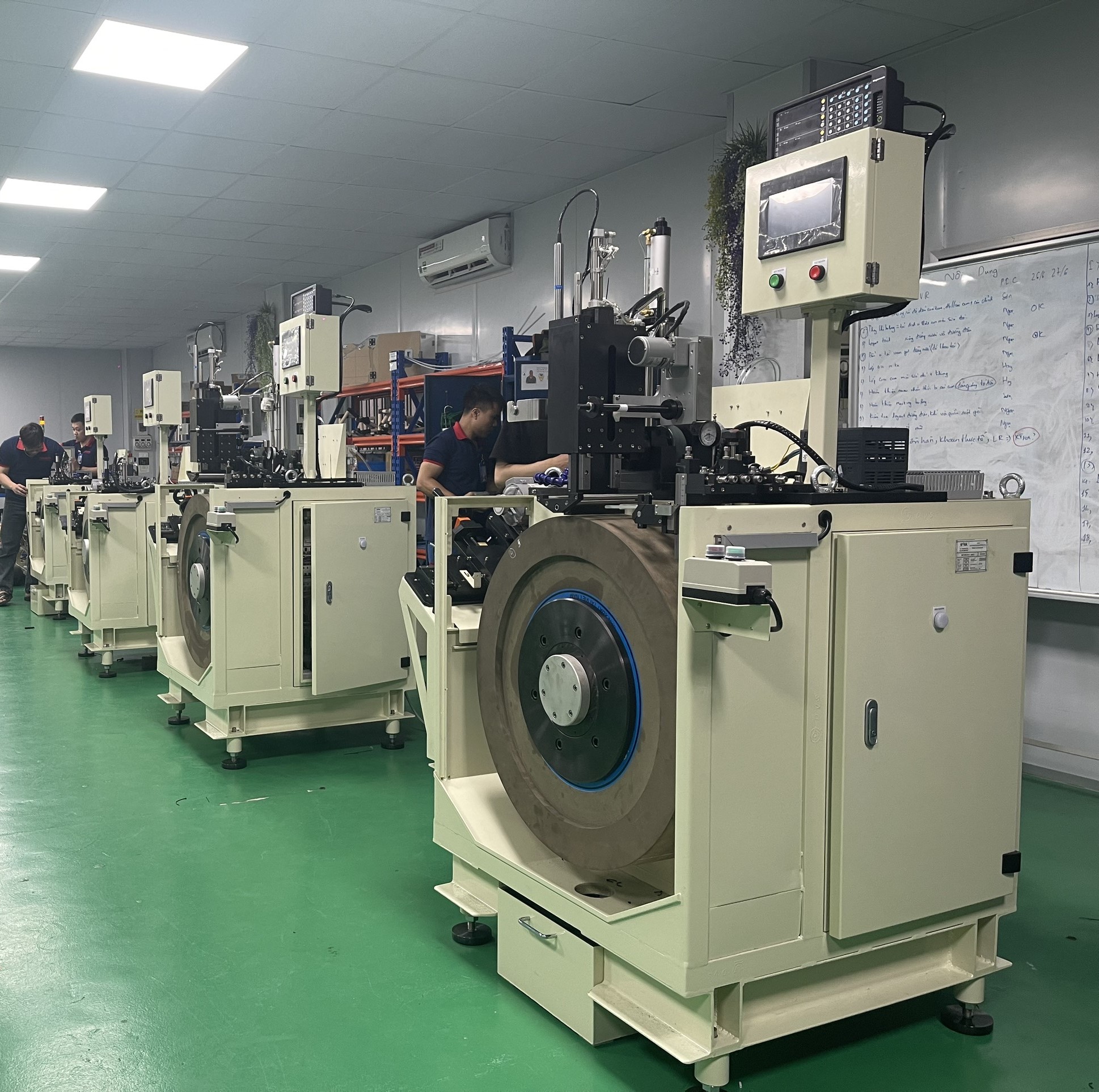

An industrial grinding machine is an automated device that uses a grinding wheel to remove excess material from the surface of a workpiece, achieving smoothness and high dimensional accuracy according to technical specifications. The machine is controlled by a PLC system, capable of grinding with tight tolerances and monitoring the grinding process using specialized measuring equipment.
Specifications:
- Model: First grinding (3 models); MVR grinding (5 models)
- Cycle time: Depends on operation (OP)
- Voltage: 3-phase 200V
- Air pressure: 0.4–0.6 Mpa
- Technical details:
- Grinding wheels provided by customer (large and small)
- Grinding with tight tolerances as required
- Grinding process monitored by DK50PR5 measuring device
- Control: PLC
The automatic carton folding machine is a specialized device in the packaging industry, used to fold carton blanks into fully-formed boxes without manual intervention. It operates by taking pre-shaped carton blanks and automatically folding them into finished boxes with high precision. The machine can handle various sizes and shapes of boxes, from small consumer product boxes to large industrial packaging.
Specifications:
- Model: 01
- Cycle time: 17.3s/pcs
- Voltage: 3 phase 380V 50Hz
- Air pressure: 0.4-0.6 Mpa
- Control: PLC
- Dimensions (L×W×H): 3970×2100×2000
- Integrated with MES system

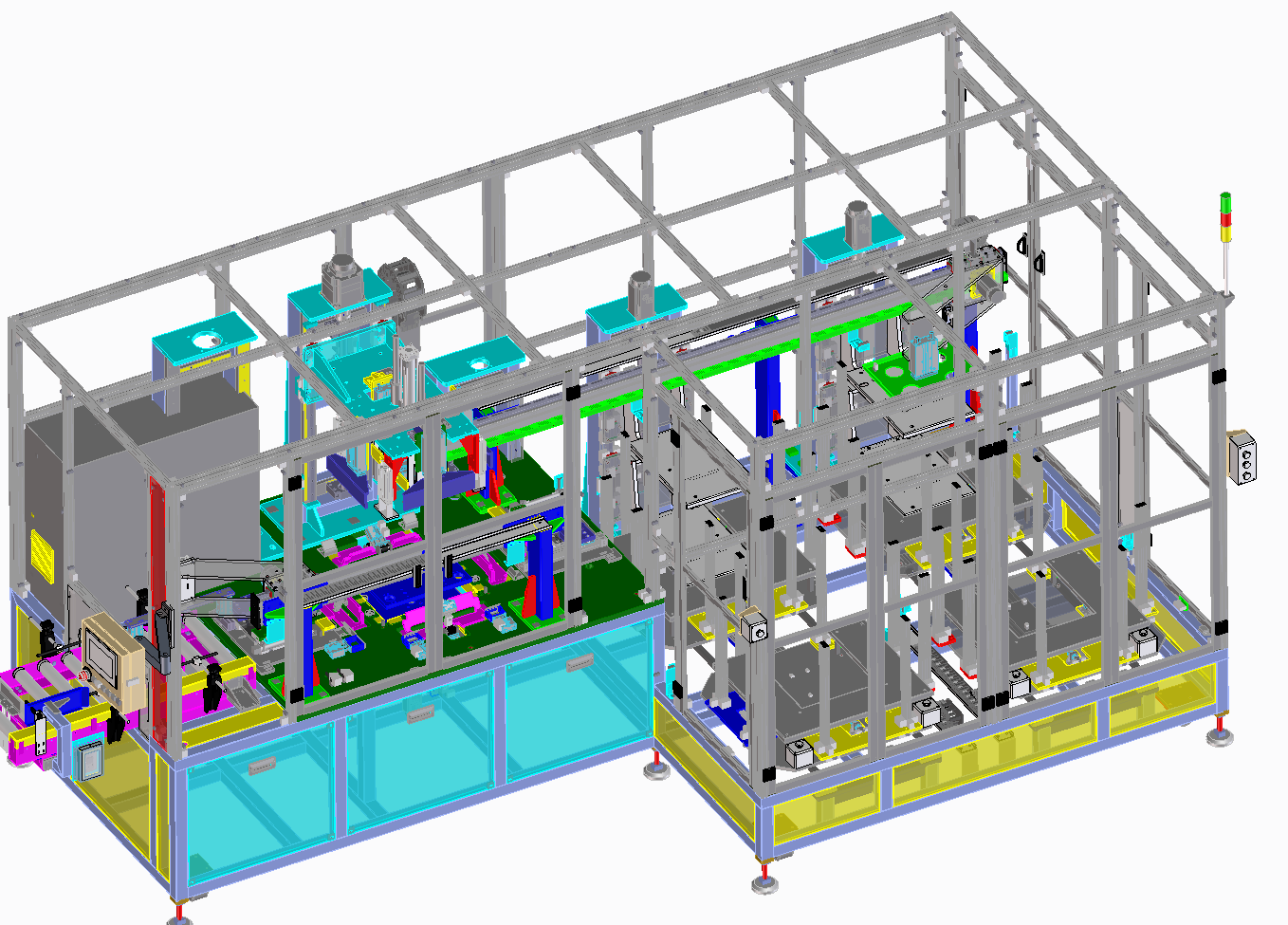

In the electronics manufacturing industry, the IGBT (Insulated Gate Bipolar Transistor) is an indispensable component.
IGBTs play a crucial role in high-power electronic devices such as electric vehicles, solar power systems, and industrial equipment. Therefore, quality and precision in the manufacturing process of IGBT circuit boards are vital to ensure reliability and performance.
1. Technical Specifications:
Voltage: 3P-380V, 50Hz
Air Pressure: 0.4–0.6 Mpa
Maximum Pressing Force: 5 kN
Set Pressing Force: 2.88 kN
Stroke: 200 mm
Post-pressing Position Tolerance: ±0.1 mm
Cycle Time: 81 seconds/product
Pressing Device: Kistler
Dimensions (L×W×H): 2350 × 2165 × 2100 mm
2. Applied Technologies:
5kN Kistler Servo Press: Precisely controls pressing force up to 5kN; flexible stroke and speed for secure assembly without deformation; integrated force and position sensors allow real-time monitoring and adjustments.
±0.1 mm Tolerance Control: Ensures accurate placement of circuit legs, preventing connection errors and improving stability and lifespan of IGBT.
Cognex Camera for Height Inspection: Monitors leg height before and after pressing; quickly detects deviations, reduces errors, and enhances product quality.
MES (Manufacturing Execution System): Collects and analyzes real-time data from the entire production process; supports monitoring, traceability, and process optimization.

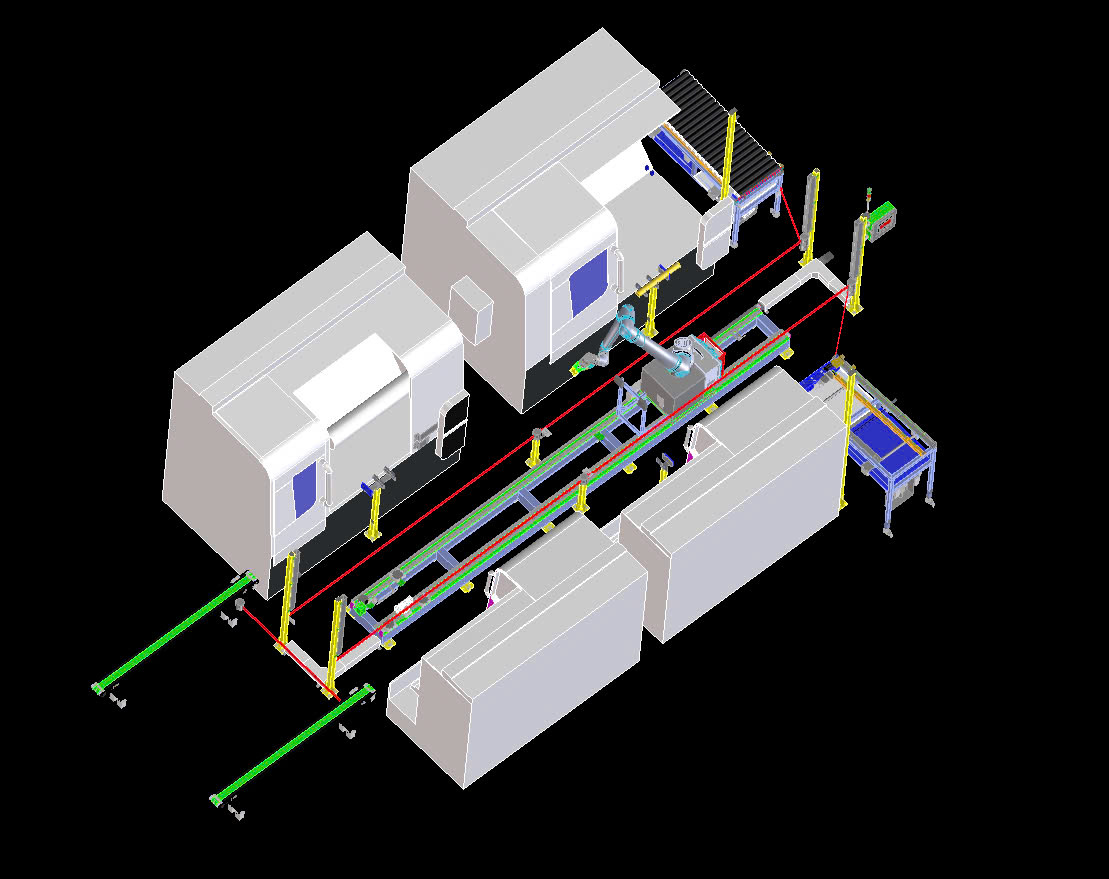

This system is specially designed to integrate with CNC lathes, ensuring continuous, accurate, and efficient bar feeding. It is an ideal solution for businesses looking to increase productivity while maintaining high machining quality.
1. Specifications:
- Voltage: 3-phase 200V, 50Hz
- Air pressure: 0.4 – 0.6 MPa
- Dimensions (L×H×W): 7200×800×1600 mm
- Model:
+ Round steel bars φ19–65mm, length 102–565mm
- One robot serves 4 CNC lathes
- Fully automatic and independent operation
- Supports multiple product codes
- Signal and control integration with CNC machines
- Capable of running two different product codes simultaneously
- Lines can operate independently: Line #1 machining while Line #2 is stopped for JIG replacement
2. Advanced Technologies Applied
- UR Collaborative Robot (Universal Robots)
UR collaborative robots are known for their flexible and safe operation, easy programming, and seamless integration.
In the feeding system, the UR robot handles picking, rotating, positioning, and feeding materials into CNC lathes with high precision.
The compact design of the UR robot fits well in various workspace environments, optimizing factory floor usage.
- Input Material Alignment Camera Technology
The smart camera is equipped with object recognition and precise alignment capabilities before the robot performs its actions.
It ensures the material is fed into the lathe in the correct orientation and position, reducing machining errors and saving raw materials.
This technology is particularly useful for handling complex-shaped materials or applications requiring high precision.
