PR message
System provider that sells and supports machine tools (lathe/sheet metal), textile machinery, and machine tool logistics systems. the company is expanding its business domain to ASEAN countries and contribute to the industrial development.
Based on the concept of "total high-quality and high-production", Muratec's unique laser output control and machine structure that secures sufficient rigidity to ensure high-speed operation realize high-speed and high-precision fiber laser machining. The lineup also includes the HL model, a fiber laser multitasking machine with additional forming and tapping functions.

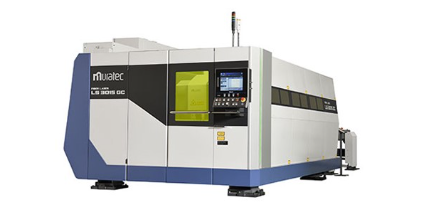

Fiber laser LS3015GC/LS2512GC
Muratec's standard fiber laser that pursues flexibility
■ Product features
・Equipped with our unique laser output control system MVHS (Microcomputer Control by Variety of High Speed Outputs) that enables smooth pulse output and achieves high quality machining.
・Low center of gravity and high-rigidity frame design suppresses resonance frequency and achieves high-precision machining
・Space-saving design
・Compatible with automation in pursuit of productivity, safety and stability

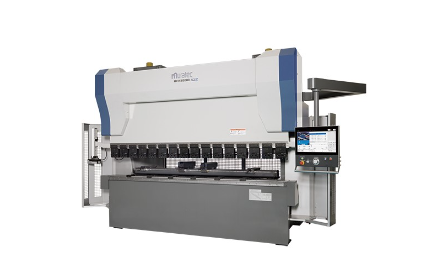

Dual drive press brake
BH series Advanced version
Newly developed dual drive system achieves high-speed operation
■ Product features
・High-speed ram motion by AC servomotor and ball screw drive
・High stopping accuracy of ram by hydraulic servo drive
・Power-saving drive system with assist device
・Equipped with a crowning system that enables quick correction
Ball screw drive press brake
BB Series Advanced Version
Achieves high productivity with AC servo motor & ball screw drive
■ Product features
・High-speed operation and stable high repeatability by ball screw drive
・Environmental performance (oilless / low noise due to reducer)
・A compact press brake BB306 designed for bending work while sitting on a chair is also available.

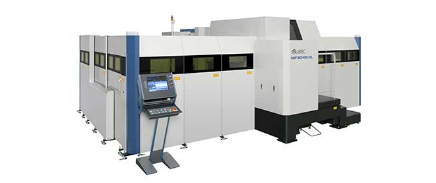

Based on the servo motor type turret punch press "MOTORUM series", this is a fiber laser punch press that combines the technology cultivated in the fiber laser. It realizes a wide range of forming processes, servo-controlled tapping unit, and deburring dies for a wide range of machining and process consolidation.
■ Product features
・Reduce production lead time by consolidating processes
Consolidation of specific processes such as drilling, laser cutting, forming processing, and tapping equipment (optional)
・High quality and high precision processing
Integrated processing is possible, such as high precision drilling with tolerance in the punching process and laser processing for high quality parts.
・Improved material yield
In multi-cavity processing, laser cutting of the outer circumference improves material yield.
・Reduction of running cost
Reduce running costs by replacing part of laser processing, such as small-diameter hole drilling and square hole drilling, with punching
・Improvement of work environment (noise)
Reduce noise by replacing punching using large-diameter tools with laser processing.
・Prevention of opportunity loss
Parts that cannot be punched with existing molds can be replaced with laser processing. Prevents loss of business opportunities regardless of mold delivery time

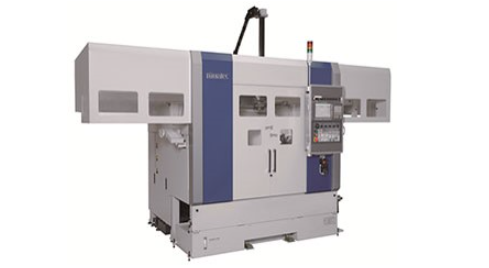

CNC turning center that can realize process integration at will. In addition to being able to machine "⌀51 bar work" on both left and right spindles, it is equipped with a spindle motor "11 kW/30min" on both left and right spindles to achieve advanced machining.
■ Chuck size
⌀165mm 6 inches
■ Tool post shape
2 turret specifications: 15-point turret x 2
3 turret specifications: 15-point turret x 3
■ Max. machining diameter of bars
Standard: 51 mm, Options: 65 mm, 90 mm
■ Max. spindle speed
dia 90 mm: 5,000 rpm, optional dia 90 mm: 6,000 rpm
■ Spindle motor
Standard (left, right): 11 kW / 30 min. (7.5 kW / continuous) x 2
Options (left, right): 15 kW / 30 min. (11 kW / continuous) x 2
■ Live tool rotation speed
6,000 rpm live tool motor, 2.2 kW (8.0 Nm / continuous)
■ Gross weight (with loader and tools)
9,000kg

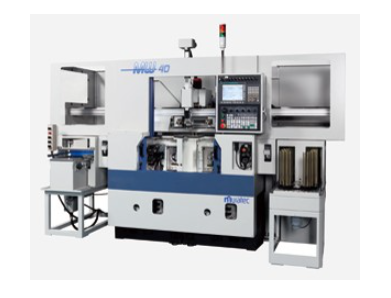

By separating the left and right sides of the bed as standard, the effects of vibration and other factors from opposite axes are minimized. A fixed turret is used to increase rigidity and enable even higher precision machining. It is also effective for hard turning and when the required surface roughness is high, such as in the case of aluminum/sintered materials.
■ Chuck size
4 inch / 5 inch
■ Tool post shape
10-point turret x 2
■ Max. spindle speed
8,000rpm, 10,000rpm
■ Spindle motor
3.7kW / 30 min. × 2
■ Required floor space
W 1,590mm x D 1,950mm
■ Gross weight (with loader)
3,500kg

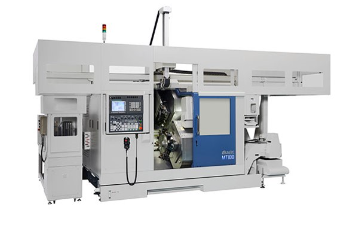

The high-grade machine that has improved productivity by installing a new high-speed loader on the conventional MW series. For machining under severe conditions such as hard turning and intermittent cutting, the square slide specification is selected to provide stable performance in machining under severe conditions such as hard turning and intermittent cutting.
■ Chuck size
6 inch/8 inch
■ Tool post shape
Standard: Octagonal turret x 2
Option: 12-point turret x 2
■ Max. spindle speed
3000rpm/4500rpm/6000rpm
■ Spindle motor
Standard: 7.5kW / 30 min. × 2
Option: 11kW / 30 min. × 2
■ Required floor space
W 1900mm x D 1810mm
■ Gross weight (with loader)
4400 kg
