Böllhoff is your partner for 360° joining technology with assembly and logistics solutions – worldwide. As a family-owned company we have been standing for long-term success through innovative capacity and local presence since 1877.

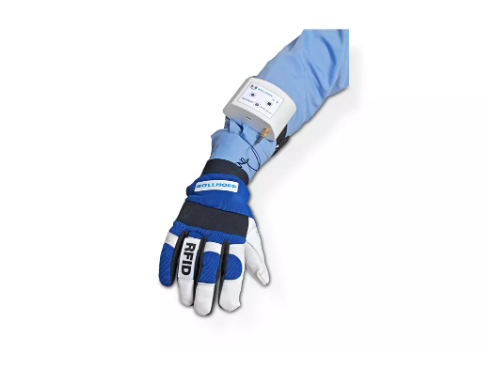

Multifunction RFID glove simplifies control of your process chain. With each hand motion the information in the RFID transponder is read-out and compared with the order information – as you work, with no additional effort.
For example, you can use the ECOGLOVE for easy initiation of an order or to record individual production steps. If something is not running according to plan, the system will alert you with an alarm signal.

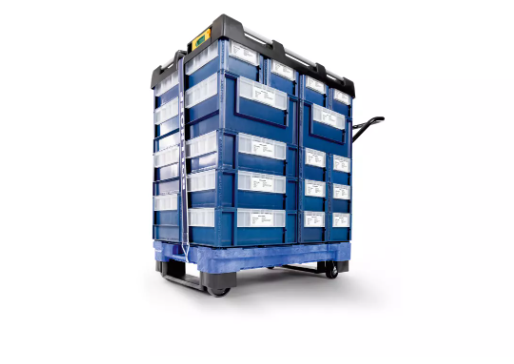

Moveable pallet with integrated load securing elements make it possible to conveniently transport filled ECOBins – free of wood, paper and cardboard packaging
The effective combination of pallet, handle and hitch makes a lift truck unnecessary. Of course, dispensing with wood, paper and cardboard packaging also protects the environment – for more sustainable logistics.

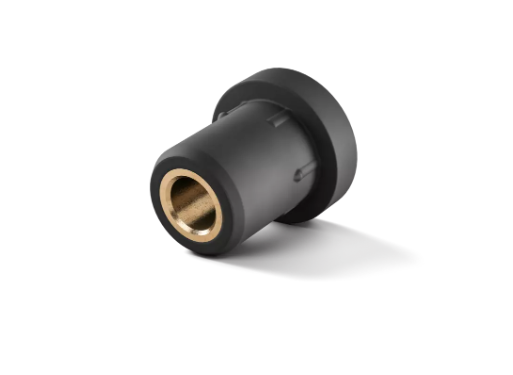

You can use this decoupling blind rivet nut to fasten a high-strength thread body to a thin-walled component with an additional vibration and noise decoupling effect.
Advantages
- Vibration and noise decoupling
- Thermal and electrical insulation
- Load-bearing thread on thin-walled components
- Adjustable parameters for a flexibility in design (material, connection solution)

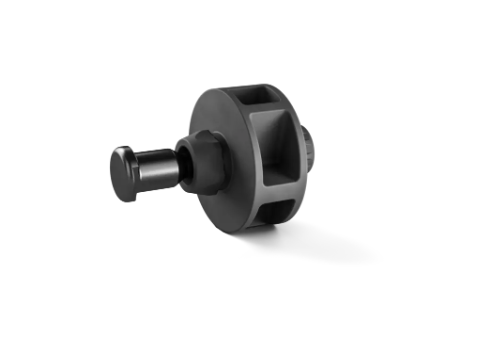

You can mount the SITEC® Clip quickly and easily on the panel geometry of your application. Two clips which are identical in design are clipped together, with an offset of 90°, in a round bore. The clips are then screwed to the mounted component.
Advantages
- Pre-assembly and final assembly
- Quick, easy and secure
- No tool required
- One fastening element for component thicknesses between 1 and 3 mm

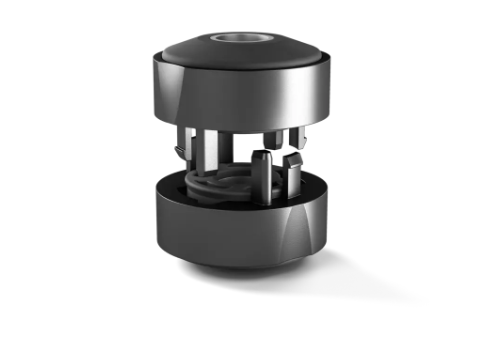

This solution consists of a plastic stud and a soft damping element. With two undercut geometries, this fastener smoothly fits into bore holes of different plate thicknesses without the use of a tool. Pressing down the stud establishes the fastening.
Advantages
- Vibration and noise decoupling
- Pre-assembly and final assembly
- Fast, easy and secure
- No tool required

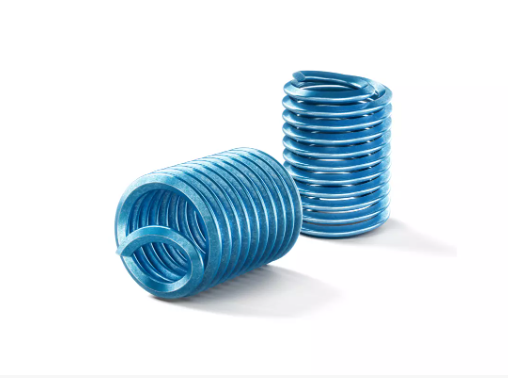

The coil thread insert with its precision-formed rhombic profile is free running turn by turn. This creates a true-to-gauge internal thread that can be used on both sides.
The dimensional stability of the ISO thread complies with DIN 13 6H, with 4H for special requirements, and meets the requirements of international standards.
The advantages of the HELICOIL® Plus systems are particularly apparent in processing and tools, as they significantly reduce installation times.
In addition, this thread insert has a clamping area for screw-locking.

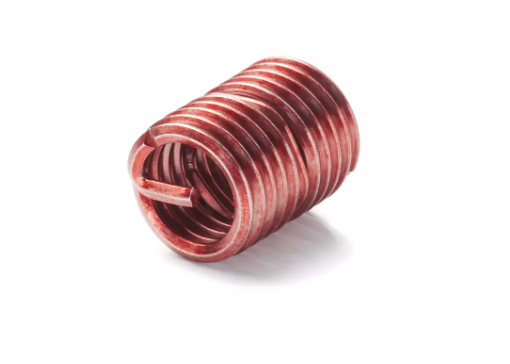

The elastically durable friction-locking results in clamping torques that are comparable to the specifications of ISO 2320. These screw-locking torques meet the requirements of the technical delivery conditions for international standards. The clamping torques can also be individually adjusted as required for a specific application, e.g. for securing setting screws. HELICOIL® Classic Screwlock thread inserts should only be used with screws of higher strength classes (from 8.8).

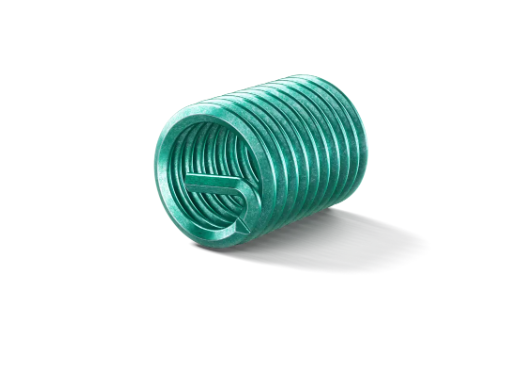

This thread insert merges the advantages of the HELICOIL® Plus and the HELICOIL® Tangfree. There is a tang, but it does not have to be broken off and removed. The installation time is therefore reduced by approx. 20 %. Every thread of the thread insert with precision-formed, rhombic profile is free running. The result is a true-to-gauge internal thread including the last thread which is in every case threadable.
