BANGKOK CABLE CO., LTD.

Bangkok Cable's FRC-XL-LSHF cable combines fire resistance with low smoke and halogen-free characteristics, supporting up to 1000V. It is ideal for use in fireproof trunks and conduits, ensuring safety during fires.

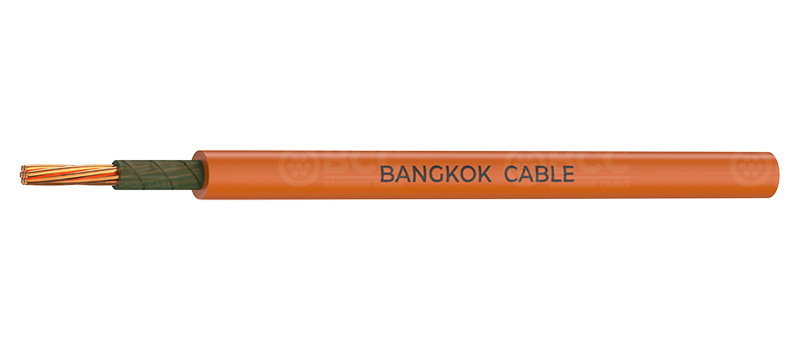

The "600/1000V FRC-XL-LSHF" is a low-smoke, halogen-free power cable designed with fire safety in mind. This cable minimizes the emission of smoke and corrosive gases during a fire, making it ideal for protecting public facilities and electrical equipment. It uses a fire-resistant mica tape around the conductor, ensuring circuit integrity during a fire. With support for up to 1000V circuit voltage and an operating temperature of 90°C, this cable provides reliable power supply even in harsh conditions.

Features
Fire resistance: Equipped with mica tape to ensure circuit integrity during fires
Low smoke and halogen-free: Environmentally friendly materials that minimize smoke and corrosive gas emissions during a fire
High voltage capacity: Supports circuit voltages up to 1000V
Complies with IEC standards: International standard compliance ensures high reliability
Durability: Long lifespan and stable performance in harsh environments

Specifications
Conductor: Concentric or compressed stranded copper wire
Fire-resistant tape: Mica tape
Insulation: Cross-linked polyethylene (XL-LSHF), low smoke, halogen-free
Maximum conductor temperature: 90°C
Maximum circuit voltage: 1000V
AC test voltage: 3,500V

Applications
Fireproof trunk wiring and conduits where fire resistance is required
Enhancing safety in electrical installations and control equipment

This high-performance cable, combining fire resistance with low smoke and halogen-free properties, is ideal for wiring in public facilities and commercial buildings.
