Measuring equipment and testing machine

ARCS

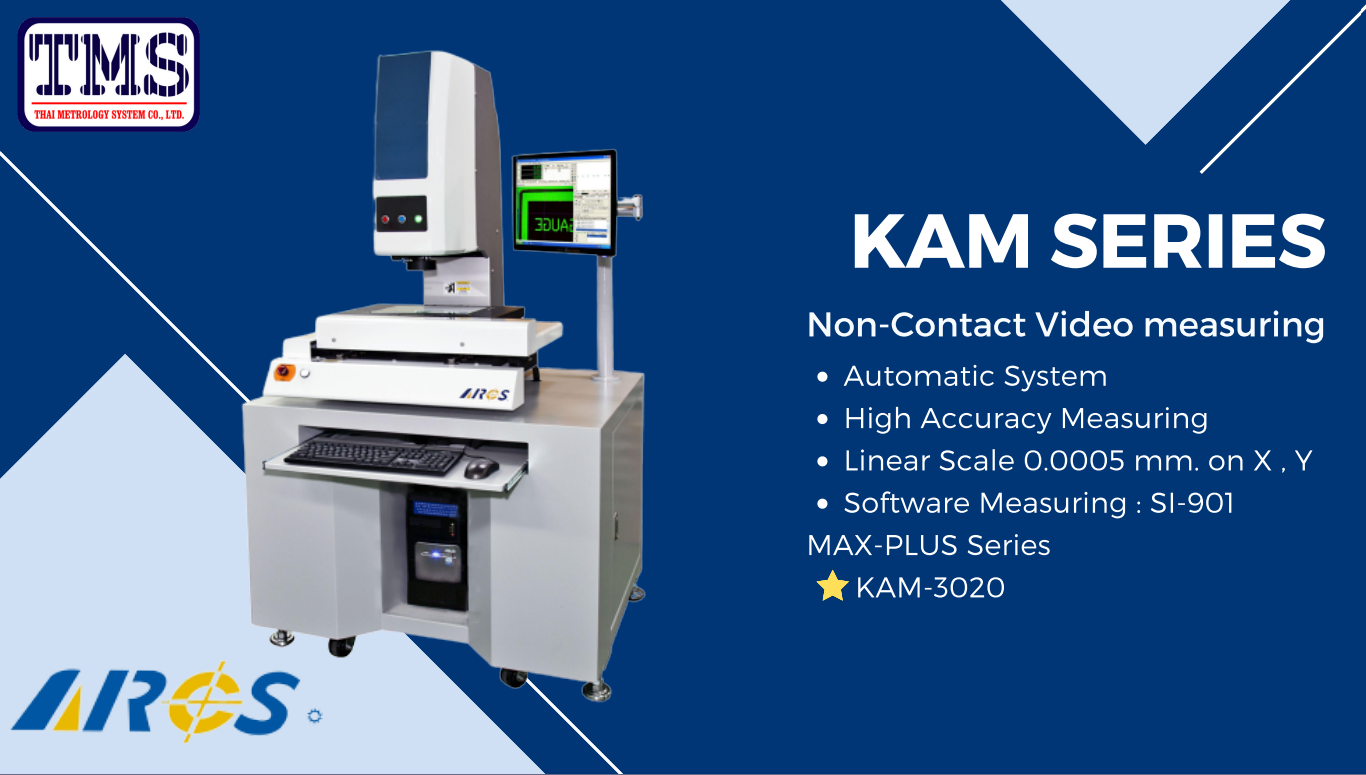

The ARCS KAM-3020 is an automatic non-contact video measuring machine, specifically designed for precision measurement in industrial applications. It features a 0.5μm linear scale, a high-resolution CCD camera, and a standard zoom lens, achieving a measurement accuracy of ±(2+L/100)μm. The servo motor control ensures ease of operation, while the granite table provides stability during measurements.

■ Key Features
High-Resolution CCD Camera: Delivers sharp and clear measurement results.
Adjustable Zoom Lens: Standard magnification of 0.7–4.5x, expandable up to 10x with optional lenses.
High-Precision Linear Scale: 0.5μm resolution on X, Y, and Z axes.
Servo Motor Control: Easily operated via mouse or optional joystick.
Adjustable Lighting System: Surface and contour lighting, ring light, and multi-section lighting available.
Granite Work Table: Ensures stable measurement conditions.

■ Technical Specifications
Camera: High-resolution CCD with high-speed video capture card.
Lens: Standard zoom 0.7–4.5x, expandable up to 10x.
Accuracy: ±(2+L/100)μm, repeatability of 2μm.
Lighting System: Adjustable surface and contour lighting, optional high-intensity ring light.
Software: SI-901 included, with optional touch probe feature.
Power: AC220–230V, 50/60Hz.

The ARCS KAM-3020 is an ideal solution for industrial precision measurement, combining reliability and ease of use.

For more details, please download our PDF or contact us.
