VOLLMER ASIA PACIFIC CO., LTD.
Most recent update: 2024-12-18
PR message
Maximum sharpening for tools in production and service: That's what VOLLMER stands for. Since it was founded in 1909, the company has become a technology leader for state-of-the-art grinding, erosion and processing machines for rotary tools circular saws and band saws. The extensive machine range is supplemented by customized service offerings. VOLLMER is a solution provider for global customers - including sharpening services, sawmills, tool manufacturers and production companies.

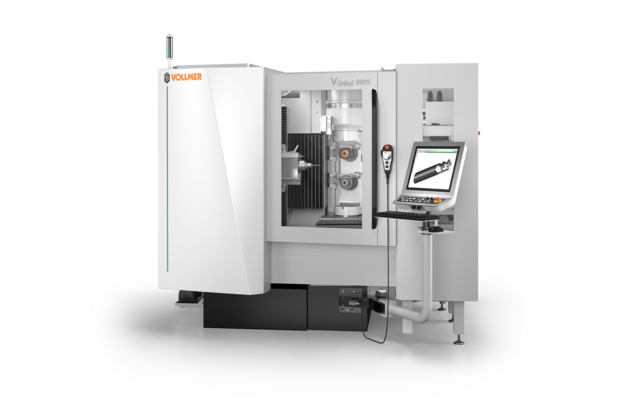

The "VGrind 360S" is a next-generation grinding machine designed for the complete machining of carbide tools. It supports tools with a maximum diameter of 200 mm, making it ideal for industries requiring high precision, such as automotive manufacturing, precision engineering, aerospace, and medical technology.
This machine features two vertically positioned spindles and utilizes non-contact, wear-free linear induction motors, ensuring long-term high precision and stable performance. Additionally, flexible automation options can significantly enhance productivity.
■ Key Features
1. High-Precision Machining
・A 5-axis CNC system with linear induction motors on the X, Y, and Z axes improves machining accuracy and stability.
・The spindle’s pivot point design ensures excellent surface quality.
2. Efficient Productivity
・Supports automated tool changers and flexible exchange of multiple grinding wheels.
・Smooth switching systems reduce non-productive time.
3. Ease of Operation
・Adjustable-height control panel with a touchscreen interface.
・Intuitive NUMROTOplus® software allows for tool design, simulation, and monitoring.
4. Flexible Application
・Optimized for producing drills and milling tools with a maximum diameter of 32 mm.
・Supports specialized tools with a maximum diameter of 200 mm.
■ Specifications
1. Machining Capacity
・Tool Diameter: Up to 200 mm
・Tool Length: Up to 360 mm
・Grinding Wheel Diameter: Up to 150 mm
2. Motion Range
・X-Axis: 426 mm, Y-Axis: 490 mm, Z-Axis: 505 mm
・A-Axis: Rotation speed 450 rpm (optional 1,000 rpm)
・C-Axis: ±15° to -200°
3. Spindle Performance
・Maximum Rotational Speed: 16,000 rpm
・Maximum Torque: 25 Nm
4. Weight
・Approximately 4,900 kg
■ Applications
・Manufacturing high-precision tools for automotive components
・Producing custom tools for medical technology
・Machining specialized tools for aerospace industries
・Regrinding and manufacturing tools for precision engineering and mold making
The "VGrind 360S" is a next-generation grinding machine that combines precision, productivity, and ease of use. Implement this machine to optimize and improve efficiency in your tool manufacturing processes.
For more details, download the PDF or contact us directly.

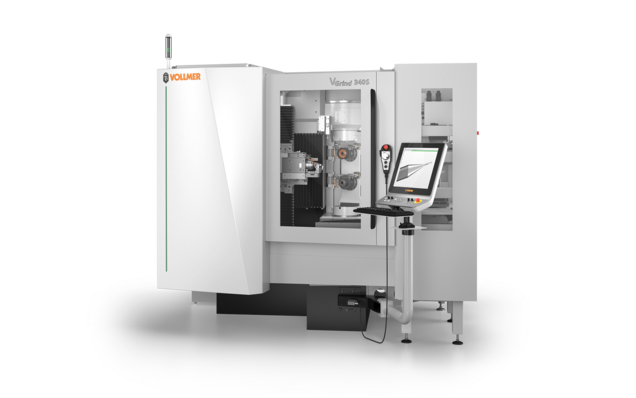

The "VGrind 340S" is a 5-axis CNC grinding machine specifically designed for producing rotationally symmetrical solid carbide tools with diameters ranging from 0.3 mm to 12.7 mm. It is suitable for use in industries such as automotive, aerospace, medical technology, and precision engineering that require small-diameter tools.
With its unique dual vertical spindle structure and advanced linear induction motor technology, the machine ensures excellent surface quality and machining precision. Additionally, its flexible automation options provide an efficient and consistent production process.
■ Key Features
1. High-Level Precision
・Capable of machining tools as small as 0.3 mm in diameter with its 5-axis CNC system.
・Linear induction motors on the X, Y, and Z axes allow for high-precision machining with no wear.
2. Efficient Multi-Layer Grinding
・The dual vertical spindle structure minimizes linear movement distances, reducing machining time.
・Pivot point design enables precise control of the grinding wheel.
3. Flexible Automation
・Equipped with an 8-station automatic grinding wheel changer and automatic gripper adjustment system.
・Supports efficient tool handling with the HP 160 pallet magazine and the HPR 250 free-arm robot.
4. Enhanced Usability
・Height-adjustable touchscreen control desk for improved visibility.
・NUMROTOplus® software for tool design, simulation, and regrinding capabilities.
■ Specifications
1. Machining Capacity
・Tool diameter: 0.3 mm to 12.7 mm
・Tool length: Up to 340 mm
・Grinding wheel diameter: Up to 150 mm
2. Motion Range
・X-axis: 330 mm, Y-axis: 450 mm, Z-axis: 500 mm
・A-axis: Rotation speed 450 rpm (optional 1,000 rpm)
・C-axis: ±15° to -200°
3. Spindle Performance
・Maximum rotational speed: 10,500 rpm
・Maximum torque: 14 Nm
4. Machine Weight
・Approximately 4,900 kg
■ Applications
・Manufacturing small-diameter tools for medical technology
・Producing micro-machining tools for precision engineering
・Machining high-precision tools for aerospace industries
・Regrinding small-diameter drills and milling cutters
The "VGrind 340S" offers a perfect blend of precision, efficiency, and flexibility for the production of small tools. Leverage this innovative machine to enhance the quality and productivity of your tool manufacturing processes.
For more information, download the PDF or contact us directly.
The "VGrind 260" is a 5-axis CNC grinding machine designed for the efficient production of rotary cutting tools. With a dual-spindle structure and multi-layer grinding capabilities, this machine delivers high precision and rapid tool production. It supports tools with a maximum diameter of 200 mm and offers advanced customization options and automation systems to maximize productivity. It is ideal for applications in the automotive, medical technology, precision engineering, and aerospace industries.
■ Key Features
1. Dual-Spindle Structure
・Two vertically positioned spindles hold the grinding wheel at the pivot point of the C-axis.
・Supports high-precision multi-layer grinding.
2. High-Efficiency Cooling System
・A plate heat exchanger effectively cools the motor and spindles.
・Ensures stable grinding quality.
3. Flexible Automation
・Compatible with the HP 160 pallet magazine, HC 4 chain magazine, and internal pallet loader.
・Adapts to a wide variety of tool types and batch sizes.
4. Ease of Use
・Height-adjustable touchscreen control panel.
・Ergonomic design for convenient operation and clear visibility.
5. NUMROTOplus® Software
・Supports 3D tool design, simulation, and collision monitoring.
・Covers all processes from tool design to production and regrinding.
■ Specifications
1. Machining Capacity
・Tool diameter: Up to 200 mm
・Tool length: Up to 360 mm
・Grinding wheel diameter: Up to 150 mm
2. Motion Range
・X-axis: 425 mm, Y-axis: 490 mm, Z-axis: 500 mm
・A-axis: Rotation speed 450 rpm (optional 1,000 rpm)
・C-axis: ±15° to -200°
3. Spindle Performance
・Maximum rotational speed: 16,000 rpm
・Maximum torque: 14 Nm
4. Machine Weight
・Approximately 4,900 kg
■ Applications
・Manufacturing high-precision tools for automotive components
・Producing specialized tools for the aerospace industry
・Manufacturing micro-tools for medical technology
・Regrinding and producing tools for precision engineering
The "VGrind 260" is a next-generation grinding machine that combines customization capabilities, precision, and multi-layer grinding. It is the perfect solution for companies looking to enhance productivity and quality.
For more information, download the PDF or contact us directly.
