We are an authorized distributor of products such as SUNGROW POWER SUPPLY CO., LTD., handling both import and domestic sales as well as export to international markets. Additionally, we provide consultation services on equipment design to ensure optimal solutions tailored to our customers' needs.

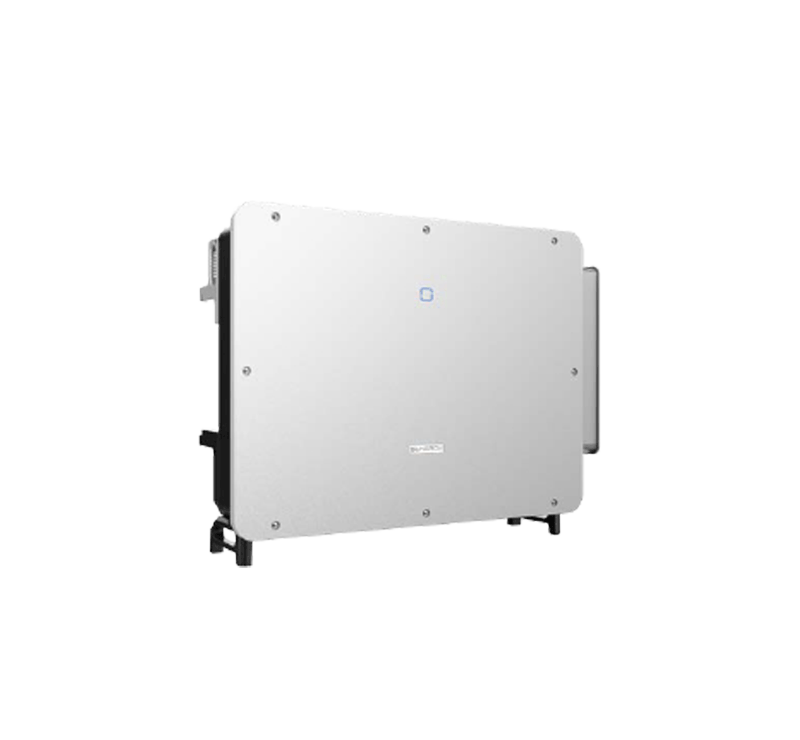

The SG350HX by SUNGROW POWER SUPPLY CO., LTD. is a Multi-MPPT String Inverter designed for 1500 Vdc solar power systems. It is ideal for large-scale energy projects, supporting high voltage applications with advanced features to enhance system efficiency and safety. Pi Enterprises (Thailand) Co., Ltd. is the official distributor in Thailand, offering comprehensive services from consultation and installation to maintenance.
■ Features
1.High Energy Yield
- Supports up to 16 MPPTs with a maximum efficiency of 99%.
- Handles up to 20A per string, compatible with 500Wp+ solar panels.
- Can integrate with solar tracking systems to optimize energy production.
2. Low Cost
- Q at night function reduces investment costs and increases efficiency.
- PLC (Power Line Communication) support lowers installation costs.
- Includes a Smart IV Curve Analysis system with automated maintenance functions.
3.Grid Support
- SCR ≥ 1.16, allowing stable operation in weak grids.
- Reactive power response time is less than 30ms.
- Complies with global grid code standards.
4.Proven Safety
- IP66-rated protection with C5 anti-corrosion coating.
- Equipped with DC Type I+II SPD and AC Type II SPD for surge protection.
- Supports AFCI 2.0 (Arc Fault Circuit Interruption) for enhanced safety.
■ Specifications
- Input (DC): Max voltage 1500V, MPPT voltage range 500V - 1500V, Max current 12 × 40A.
- Output (AC): Max power 352 kVA @ 30°C, voltage support 800V, grid frequency 50Hz/60Hz.
- Protection: IP66 rating, smart fan cooling, operating temperature -30°C to 60°C.
■ Why Choose Pi Enterprises (Thailand) Co., Ltd.?
Pi Enterprises (Thailand) Co., Ltd. specializes in renewable energy solutions, importing and distributing high-quality power inverters with comprehensive after-sales support. If you are looking for a high-performance inverter solution with reliable support, the SG350HX from Pi Enterprises is the perfect choice.

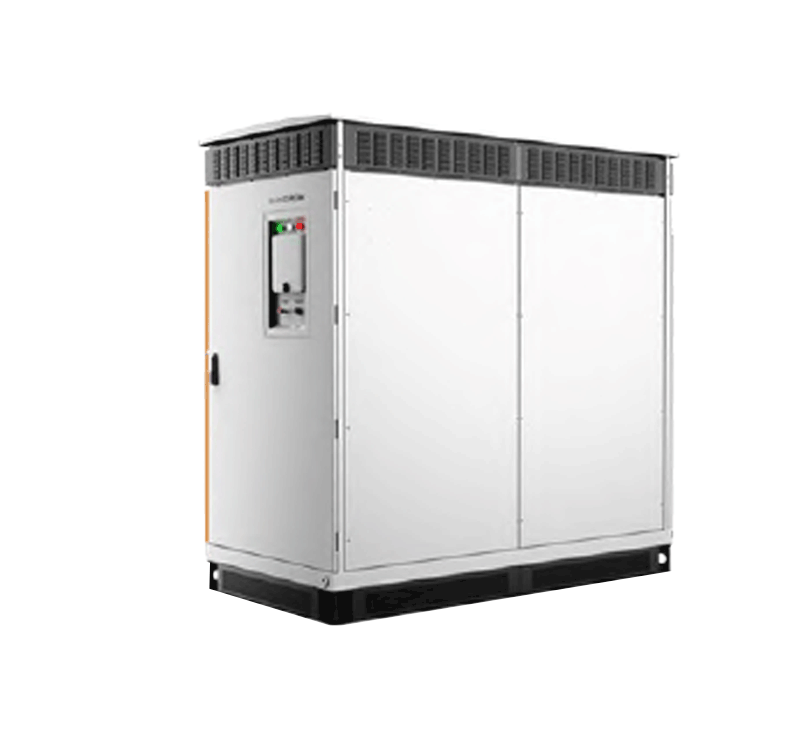

Pi Enterprises (Thailand) Co., Ltd. proudly presents the SG3400HV-30, a high-performance solar inverter from SUNGROW POWER SUPPLY CO., LTD., specifically designed for 1500 Vdc systems. Equipped with cutting-edge technology, this inverter maximizes energy conversion efficiency while reducing system costs. It is built to withstand harsh environmental conditions, ensuring optimal value for users.
■ Features
1.High Yield
- Advanced three-level technology boosts inverter efficiency up to 99%.
- Efficient cooling system enables full-load operation at temperatures up to 50°C.
2.Smart Operation & Maintenance (O&M)
- Real-time current and voltage monitoring for online diagnostics and troubleshooting.
- Modular design simplifies maintenance.
- External touchscreen display for user-friendly operation.
3.Cost Savings & Investment Efficiency
- Outdoor installation design reduces transportation and installation costs.
- Supports 1500 V DC systems, lowering overall system costs.
- Optional Q at night function helps stabilize the power grid during nighttime.
4.Grid Compatibility & Support
- Compliant with IEC 61727 and IEC 62116 standards.
- Supports Low/High Voltage Ride-Through (L/HVRT) to prevent system shutdown during voltage fluctuations.
- Active and reactive power control with power ramp rate control for smooth energy output management.
■ Specifications
- Max. PV Input Voltage: 1500 V
- MPP Voltage Range: 875 – 1300 V
- AC Output Power: 3437 kVA @ 45°C
- Degree of Protection: IP55 (upgradable to IP65)
- Operating Temperature Range: -35°C to 60°C
- Cooling System: Forced air cooling with temperature control
■ Why Choose SG3400HV-30 from Pi Enterprises (Thailand)?
Pi Enterprises (Thailand) Co., Ltd. is a specialized distributor of solar energy equipment, offering consultation, system design, and high-quality products tailored to your needs. We guarantee reliable, high-performance solutions to ensure the efficiency and success of your solar power projects.
