At the beginning, we primarily manufactured and distributed date coding machines for printing production and expiration dates. With our continuous commitment to machine development, we have expanded our production line over time. Today, we offer four main types of machinery, including date coding machines.

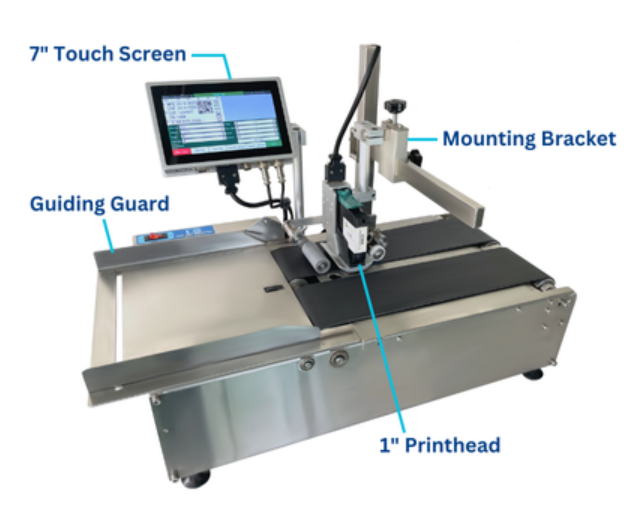

THAI STAMP ENGINEERING LTD., PART proudly presents the THERMAL INKJET PRINTER TS-1858N, a semi-automatic inkjet printing machine designed for printing text on labels, boxes, pouches, bags, and various workpieces before or after packaging. Featuring an Ink Cartridge System, this printer is easy to use, clean, and maintain.
■ Features
1.User-Friendly Operation
- Control and create print content via a 7-inch touchscreen display.
- Supports multi-line printing with adjustable font sizes.
- Capable of printing images, barcodes, and QR codes.
- Automatic date, time, and serial number generation.
- Rotatable text printing from 0 to 360 degrees.
2.High-Performance Printing
- Uses Thermal Inkjet (TIJ) technology for sharp and clear text printing.
- Ensures continuous, uninterrupted printing.
- Compatible with various materials such as paper, plastic, metal, and glass.
- 1-inch printhead, adaptable to different workpiece sizes.
3.Precision Printing System
- Workpieces are placed on an automatic conveyor belt.
- Built-in sensor detects workpieces and triggers automatic printing when passing the printhead.
- Guiding Guard and Mounting Bracket allow easy adjustment of the printing position.
4.Easy Maintenance & Cost-Effective
- Odorless ink, no mess.
- No need to clean the printhead, replace filters, or use pumps.
- Available in various ink colors.
- No consumable materials, reducing long-term operational costs.
■ Specifications
- Workpiece Size: Width 30 - 280 mm | Height 60 - 300 mm
- Printing Speed: 30 - 60 pieces per minute
- Power Supply: AC | 220V | 50Hz | 40W
- Machine Dimensions: 380 x 670 x 330 mm
■ Usage Precautions
- Avoid using the machine in environments with temperatures above 30°C.
- Remove and store the ink cartridge properly when not in use.
- Maintain a 3 - 5 mm distance between the printhead and the workpiece to prevent printhead collisions.
The THERMAL INKJET PRINTER TS-1858N is ideal for printing on labels, boxes, and packaging materials, delivering high-definition print quality with Thermal Inkjet technology. With easy operation, cost efficiency, and hassle-free maintenance, this printer is an excellent choice for applications requiring precision and high-quality printing.

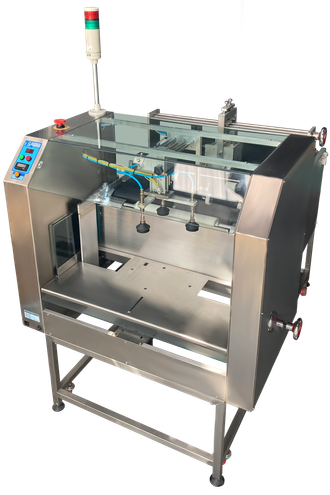

The VACUUM FEEDER TS-2262 is an automatic workpiece feeding and dispensing machine that utilizes a vacuum suction system. It is ideal for boxes, labels, bags, and large workpieces, helping to prevent workpieces from sticking together and supporting precise and continuous production processes such as printing, labeling, or arranging workpieces onto a conveyor belt.
■ Features
1.High-Efficiency Vacuum Suction System
- Utilizes a Vacuum Pad to pick up and place workpieces onto the conveyor one at a time.
- Supports workpieces with a maximum thickness of 20 cm per cycle.
2.Easy Adjustment & User-Friendly Operation
- Workpiece length can be easily adjusted using a size adjustment wheel.
- Equipped with an adjustable printhead stand, allowing for the installation of additional printing equipment.
3.Operational Status Display System
- Simple one-touch start operation.
- Tower Light indicator displays machine status with green and red lights, making it easy to monitor operation.
■ Specifications
- Workpiece Size: Width 200 - 400 mm | Length 300 - 600 mm | Thickness 0.5 - 3 mm
- Processing Speed: Adjustable via Inverter (20 - 50 pieces/min)
- Power Supply: AC 220V, 50Hz, 300W
- Machine Dimensions: 850 x 1400 x 1100 mm (Tower Light Height: 1500 mm)
■ Why Choose THAI STAMP ENGINEERING LTD., PART?
THAI STAMP ENGINEERING LTD., PART is a specialist in automated machinery solutions that enhance production efficiency. The VACUUM FEEDER TS-2262 is designed to provide precise and smooth workpiece feeding, reducing bottlenecks in production lines and ensuring seamless workflow.
The VACUUM FEEDER TS-2262 is the ideal solution for automatic workpiece feeding and dispensing, ensuring efficient and precise production processes, minimizing workpiece jamming issues, and allowing easy customization. It is perfect for businesses looking to enhance productivity and reduce labor costs.
