Takisawa (Thailand) Co., Ltd. provides high-quality CNC machines & services for precision manufacturing.

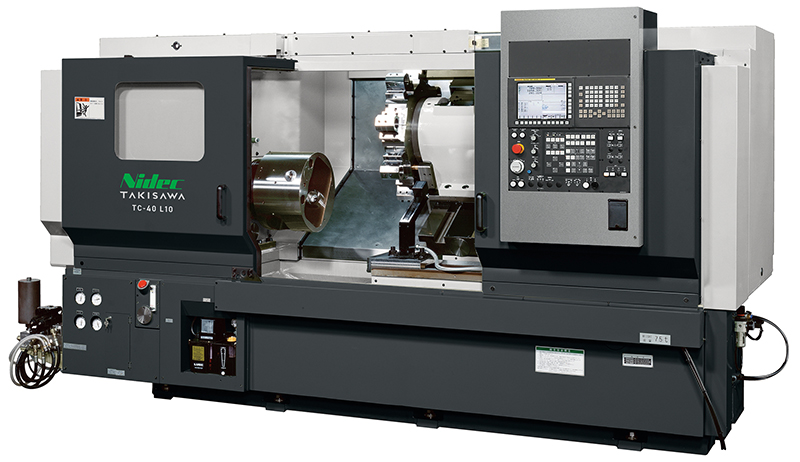

The "TC-40 L10" is a high-rigidity CNC lathe with a 12-inch chuck, provided by TAKISAWA. Its robust bed design allows for heavy-duty cutting while maintaining high-precision finishes. It is ideal for manufacturing automotive, industrial machinery, and aerospace components.
■ Features
- High-Rigidity Design: A sturdy bed structure ensures stability under heavy cutting conditions.
- Large-Diameter Machining Capability: The 12-inch chuck supports medium- to large-sized parts.
- High-Precision Spindle: Maintains accuracy even during extended machining operations.
- Versatile Applications: Suitable for shaft machining, flange machining, and other diverse applications.
- Automation Compatibility: Compatible with robots and loaders for enhanced automation.
■ Specifications
- Chuck Size: 12 inches
- Turret Type: 8-station turret (direct mount) / 10-station turret (direct mount) / 12-station turret (direct mount)
- Maximum Machining Diameter: φ450mm (8-station turret) / φ420mm (12-station turret)
- Maximum Machining Length: 1020mm
- Bar Work Diameter: φ89mm
- Spindle Speed: 2500 min⁻¹
- Rapid Traverse Speed: X-axis: 12m/min / Z-axis: 16m/min
- Spindle Motor Power (30 min/Continuous): 18.5/15kW (Options: 22/18.5kW, 26/22kW)
- Machine Height: 1920mm
- Required Floor Space: 2100×3500mm
- Machine Weight: 7500kg
■ Applications
- Precision machining of automotive components
- Heavy-duty cutting of industrial machinery parts
- High-precision manufacturing of aerospace components
- High-accuracy machining of medium- to large-sized parts
The "TC-40 L10" combines rigidity and precision, contributing to increased productivity in large-part machining.
■ For more details, please download the PDF or feel free to contact us.
The "TCC-2100L3" is an 8-inch chuck CNC lathe provided by TAKISAWA. With a high-rigidity bed design and precision control, it ensures stable and high-accuracy machining. It is ideal for machining automotive parts, precision machinery components, and aerospace parts.
■ Features
- High-Rigidity Design: A robust bed structure ensures stability even under high-load machining conditions.
- High-Precision Spindle: Advanced control technology maintains superior machining accuracy even at high rotational speeds.
- Versatile Machining: Supports a wide range of machining needs, including center work and chuck work.
- Automation Compatibility: Integrates with robots and loaders, enabling labor-saving and unmanned operations.
- Intuitive Operation: A user-friendly CNC control panel reduces operator workload.
■ Specifications
- Chuck Size: 8 inches
- Turret Type: 8-station turret (direct mount) / 12-station turret (direct mount)
- Maximum Machining Diameter: φ350mm (8-station turret) / φ320mm (12-station turret)
- Maximum Machining Length: 289mm (8-station turret) / 291mm (12-station turret)
- Bar Work Diameter: φ51mm (Option: φ42mm)
- Spindle Speed: 3200 min⁻¹ (Options: 2500, 4100, 5000, 6000 min⁻¹)
- Rapid Traverse Speed: X-axis: 24m/min / Z-axis: 30m/min
- Spindle Motor Power (15, 30 min/Continuous): 11/7.5kW
- Machine Height: 1700mm
- Required Floor Space: 1420×1525mm
- Machine Weight: 2530kg
■ Applications
- Precision machining of automotive components
- High-accuracy machining of aerospace parts
- Manufacturing of industrial machinery components
- Machining of precision electronic device parts
The "TCC-2100L3" combines precision machining with enhanced productivity, meeting the diverse needs of the manufacturing industry.
■ For more details, please download the PDF or feel free to contact us.
The "TCC-1100" is a compact CNC lathe equipped with a 6-inch chuck, offered by TAKISAWA. Despite its space-saving design, it boasts high precision and rigidity, making it an optimal choice for small parts machining. It is primarily suitable for manufacturing automotive components and precision machinery parts, contributing to improved operational efficiency and product quality.
■ Features
- Space-Saving Design: A compact body with a reduced machine width, suitable for space-constrained production lines.
- High-Precision Machining: A high-rigidity bed and precision control ensure stable machining accuracy.
- High-Speed Spindle: Designed for small-diameter workpieces, supporting high-speed machining.
- Automation Compatibility: Compatible with loaders and robots, enabling unmanned operation.
- User-Friendly Operation: Equipped with an intuitive CNC control panel to reduce operator workload.
■ Specifications
- Chuck Size: 6 inches
- Turret Type: 8-station turret (direct mount) / 12-station turret (direct mount)
- Maximum Machining Diameter: φ220mm (8-station turret) / φ170mm (12-station turret)
- Maximum Machining Length: 171mm
- Bar Work Diameter: φ42mm
- Spindle Speed: 4000 min⁻¹ (Options: 5000, 6000 min⁻¹)
- Rapid Traverse Speed: X-axis: 24m/min / Z-axis: 30m/min
- Spindle Motor Power (15, 30 min/Continuous): 5.5/3.7kW (Option: 7.5/5.5kW)
- Machine Height: 1700mm
- Required Floor Space: 1200×1370mm
- Machine Weight: 1860kg
■ Applications
- Precision machining of automotive components
- Machining of small parts such as shafts and flanges
- Precision machining for general industrial machinery
- Manufacturing of electrical machinery components
The "TCC-1100" offers high performance in a compact size, enhancing productivity in limited spaces.
■ For more details, please download the PDF or feel free to contact us.
