PR message
YOSHITAKE is a leader in fluid flow control. We do not operate our business with a sole focus on profit but prioritize customer benefits and environmental impact at every stage, from the manufacturing process to product presentation.

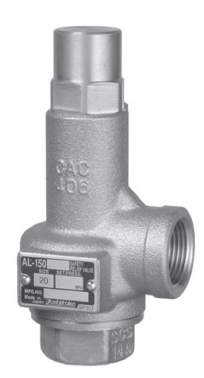

The AL-150 safety relief valve is designed to release excess pressure and protect systems from overpressure. It is suitable for use with steam, air, hot water, cold water, oil, and other non-hazardous fluids. Its closed-type structure minimizes fluid leakage to the outside, while advanced manufacturing techniques enhance performance and precision.
■ Features
- Compatible with a wide range of fluids, including steam, air, water, and oil.
- High performance with precise pressure control and advanced manufacturing techniques.
- Key components (valve seat and disc), as well as the pressure adjustment spring, are made from stainless steel SCS14A (equivalent to SUS316), ensuring excellent corrosion resistance.
- Closed-type structure prevents fluid leakage to the external environment.
■ Specifications
- Structure: Closed type
- Applicable Fluids: Steam, air, hot water, cold water, oil, and other non-hazardous fluids
- Operating Pressure Range: 0.05 - 1.0 MPa
- Operating Temperature: 5 - 220°C (*maximum 150°C for water and oil applications)
■ Materials
- Valve Body: Brass
- Valve Seat and Disc: Stainless steel SCS14A
- Pressure Adjustment Spring: Stainless steel
- Connection: JIS Rc Threaded
■ Example Dimensions and Weight
- Size 15A: Rc 1/2 connection, Length 34 mm, H1 Height 40 mm, Overall Height 128 mm, Flow Area 20.1 mm², Weight 0.7 kg
- Size 20A: Rc 3/4 connection, Length 38 mm, H1 Height 43 mm, Overall Height 128.5 mm, Flow Area 34.6 mm², Weight 0.8 kg
- Size 25A: Rc 1 connection, Length 43 mm, H1 Height 51.5 mm, Overall Height 144.5 mm, Flow Area 53.0 mm², Weight 1.1 kg
The AL-150 safety relief valve is an essential component for overpressure protection in fluid systems. Designed for versatile applications, it is made from high-quality corrosion-resistant materials. Its closed-type structure reduces leakage, ensuring safety and reliable performance.

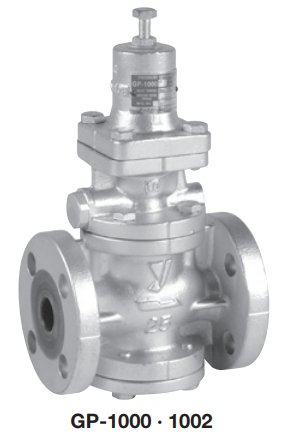

The GP-1000 · 1002 pressure reducing valve is designed to regulate and stabilize steam pressure, making it ideal for use in industrial steam piping systems and utility networks. Its internal structure is engineered for strength and durability while effectively minimizing leakage. Additionally, it meets key international standards, ensuring reliability, quality, and safety in operation.
■ Features
- High performance in operation and durability compared to conventional pressure reducing valves.
- Spherical main valve enhances sealing capability, effectively preventing valve seat leakage (compliant with ANSI Class IV standards).
- Certified by the SHASE-S106 standard of the Society of Heating, Air-Conditioning, and Sanitary Engineers of Japan.
- Simple, robust, and durable internal structure.
■ Specifications
- Application: Steam
- Inlet Pressure Range: 0.1 - 1.0 MPa (GP-1000 · 1001) / 0.1 - 0.5 MPa (GP-1002)
- Outlet Pressure Range: 0.05 - 0.9 MPa (GP-1000 · 1001) / 0.03 - 0.15 MPa (GP-1002)
- Minimum Pressure Reduction: 0.05 MPa
- Maximum Pressure Reduction Ratio: 20:1
- Maximum Temperature: 220°C
- Valve Seat Leakage Rate: 0.01% or less of the rated flow rate
■ Materials
- Valve Body: Ductile cast iron
- Valve Seat and Disc: Stainless steel
- Piston and Cylinder: Brass or bronze
- Connection Types: JIS 10K FF Flanged / JIS Rc Screwed / EN PN16 Flanged
■ Example Dimensions and Weight (GP-1000 · 1002 Model)
- Size 15A: Length 150 mm, Height H1 64 mm, Height H 285 mm, Weight 8.0 kg
- Size 20A: Length 155 mm, Height H1 64 mm, Height H 285 mm, Weight 8.5 kg
- Size 25A: Length 160 mm, Height H1 67 mm, Height H 300 mm, Weight 10.0 kg
The GP-1000 pressure reducing valve is an excellent solution for steam systems requiring precise and stable pressure reduction. Its robust and durable construction, along with a simple design, ensures easy installation and maintenance. Additionally, it complies with key industry standards, guaranteeing quality and safety.
