EBARA (THAILAND) LIMITED
Most recent update: 2025-02-27
PR message
EBARA (Thailand) Limited is a subsidiary of EBARA Corporation, founded in 1912 and established in Thailand in 1993. It provides manufacturing, sales, and services for pumps, blowers, refrigeration units, and cooling towers.

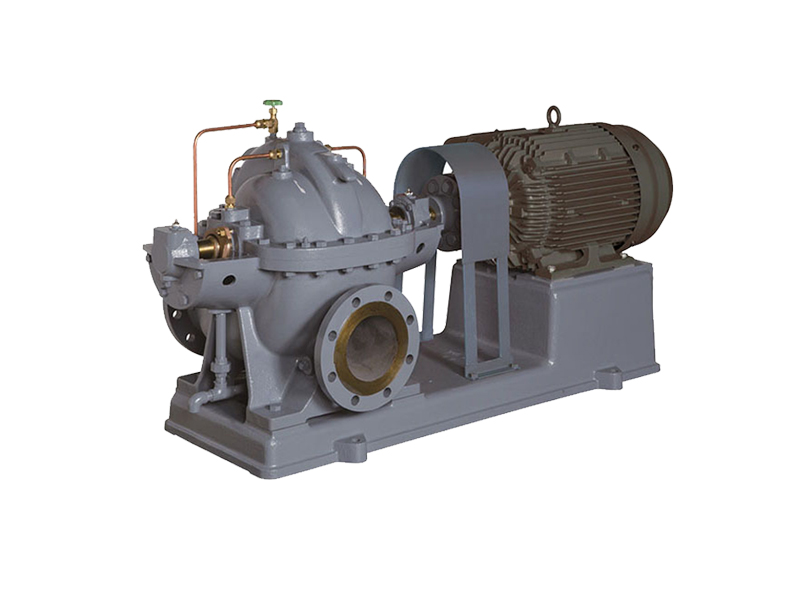

Model CN is a high-pressure horizontal split case pump designed for superior efficiency and versatile applications. Its modular split case design allows for easy maintenance, reducing operational costs while supporting industries that require high water pressure.
■ Features
- Split Case Design: The pump's casing can be easily disassembled for inspection and maintenance without requiring realignment of the pump or repositioning of the suction and discharge pipes.
- High-Efficiency Double Suction: Designed for optimal liquid suction, reducing pressure loss while handling large water volumes compared to conventional designs. It is also compatible with high-speed motors, making it ideal for confined spaces.
- Energy-Saving & Low Operating Costs: Provides high efficiency across a wide operational range, reducing energy consumption and motor expenses.
- Low Noise & Low Vibration: Minimizes noise and pulsation, ensuring a more comfortable working environment.
- Various Material Options: Available in multiple materials to suit diverse industrial applications.
■ Applications
- Water Supply & Utilities: Municipal and utility water supply systems.
- Water Transfer & Pressure Boosting: Water intake, transfer, and pressure enhancement.
- Industrial Use: Water circulation, drainage, chemical processing, oil refining, and fire protection systems.
- Agriculture & Irrigation: Agricultural irrigation and drainage systems.
- High-Rise Buildings & HVAC Systems: Water supply, drainage, and air conditioning systems for large buildings.
■ Specifications
- Liquid Temperature: Below 80°C (176°F).
- Shaft Seal Type: Gland Packing.
- Rotation Direction: Clockwise (CW) when viewed from the drive side.
- Suction & Discharge Orientation: Side-Side configuration.
Model CN is a high-efficiency, high-pressure double-suction horizontal pump offering robust construction and flexible operation. With its superior performance, energy efficiency, and ease of maintenance, it is an excellent choice for water supply systems, industrial applications, agriculture, high-rise buildings, and fluid transfer networks across various industries.
The BEST ONE stainless steel submersible pump from EBARA is designed for high-efficiency clean water pumping. Made from AISI 304 stainless steel, it offers excellent corrosion resistance, making it ideal for drainage systems, water collection tanks, and floodwater removal. Its robust structure ensures long-lasting performance, even in demanding environments.
■ Features
- Compatible Fluids: Suitable for clean water.
- Maximum Water Temperature: Up to 50°C.
- Maximum Solid Size: Can handle solids up to 10 mm (20 mm for Vortex model).
- Maximum Submersion Depth:
2 meters (with 5-meter power cable).
5 meters (with 10-meter power cable).
-Impeller Type:
Semi-open centrifugal impeller (BEST ONE model).
Vortex impeller (BEST ONE VOX model).
- Shaft Seal System: Oil-lubricated mechanical seal combined with a lip seal to prevent leakage.
- Bearing System: Sealed ball bearings for enhanced durability and long service life.
■ Specifications
- Discharge Nozzle: G1¼” (UNI ISO 228).
- Pump Casing: AISI 304 stainless steel.
- Impeller: AISI 304 stainless steel.
- Shaft Seal:
Mechanical seal: Ceramic/Carbon/NBR.
Lip seal: NBR.
- Casing Cover: AISI 304 stainless steel.
Testing Standard: ISO 9906 - Annex A.
- Motor Type: Submersible dry-type motor.
- Rotation Speed: Approx. 2800 RPM.
- Frequency: 50 Hz.
- Voltage:
230V ±10% (Single-phase).
400V ±10% (Three-phase).
- Capacitor: Included in single-phase models.
- Overload Protection: Available in single-phase models.
■ Applications
- General Drainage Systems: Ideal for draining water from sump pits and drainage pipelines.
- Water Extraction from Wells and Storage Tanks: Suitable for domestic and industrial water supply.
- Emergency Flood Drainage: Can be used to remove standing water in factories, commercial buildings, and agricultural areas.
- Preliminary Wastewater Treatment: Capable of handling small solids in pre-treatment wastewater applications.
The BEST ONE stainless steel submersible pump from EBARA is an excellent solution for clean water pumping, offering a robust and corrosion-resistant design. It is ideal for various applications, including drainage systems, water storage, and environments that require continuous high-performance pumping.
