Measuring equipment and testing machine

Renishaw plc.

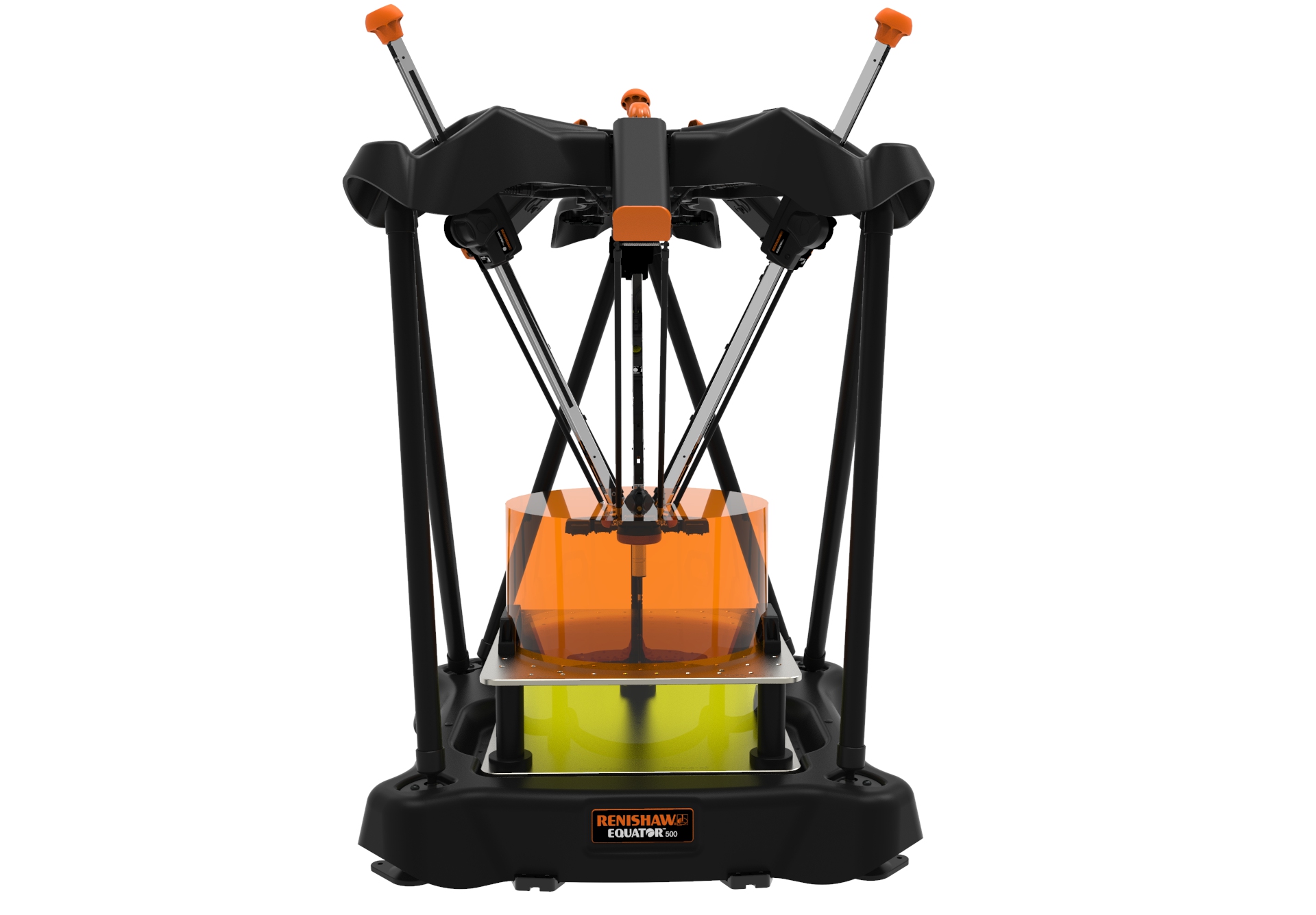

The Equator™ 500 from Renishaw plc. is an advanced gauging system designed to accommodate large workpieces. With a measuring volume covering a 500 mm diameter and a maximum height of 400 mm, it is ideal for process control and high-precision in-line measurement. This system enhances manufacturing efficiency and enables automatic tool offset updates for CNC machines.

■ Features
1.High accuracy even in changing environments : Maintains measurement accuracy in temperatures ranging from 5°C to 50°C.
2.Re-mastering process : Enables continuous measurement without waiting for environmental conditions to stabilize.
3.High-speed measurement for fast-paced production : Scanning speed exceeds 200 mm/s, reducing measurement time.
4.Optimized for the automotive industry : Suitable for measuring engine covers, gear components, drive shafts, suspension systems, valves, and pumps.
5.Compatible with automation control software:
- Organiser operator software: User-friendly interface for in-line measurement.
- EZ-IO software: Supports automation and integration with other systems.
- IPC (Intelligent Process Control) software: Automatically updates CNC machine tool offsets.
6.Flexible CNC machine integration :The Equator™ 500 can connect to one or multiple CNC machines, ensuring compliance with quality standards, reducing final product inspections, and optimizing production efficiency.

■ Specifications
- Larger measurement capacity:
XY measuring range: Ø500 mm
Z measuring height: 250 mm (expandable to 400 mm with SM25-3 module)
Supports workpieces and fixturing up to 100 kg
- Operating temperature range : Functions reliably in 5°C to 50°C environments.
- Scanning speed : Exceeds 200 mm/s for fast measurement cycles.

■ Applications
- Automotive industry: Engine component production, powertrain systems, and suspension parts.
- Mold and metal industries: High-precision component manufacturing.
- General manufacturing: Inspection of complex workpiece dimensions and quality.
- Production lines requiring real-time process control.

The Equator™ 500 from Renishaw is the ideal solution for industries requiring high-precision in-line measurement of large workpieces. Its temperature compensation, automation compatibility, and real-time process control capabilities make it a key tool for enhancing quality, reducing waste, and ensuring manufacturing stability.
The Equator™ 500 is available in Thailand through the Renishaw Thailand Representative Office.
