HIOKI Thailand – Your trusted partner in precision electrical measurement!

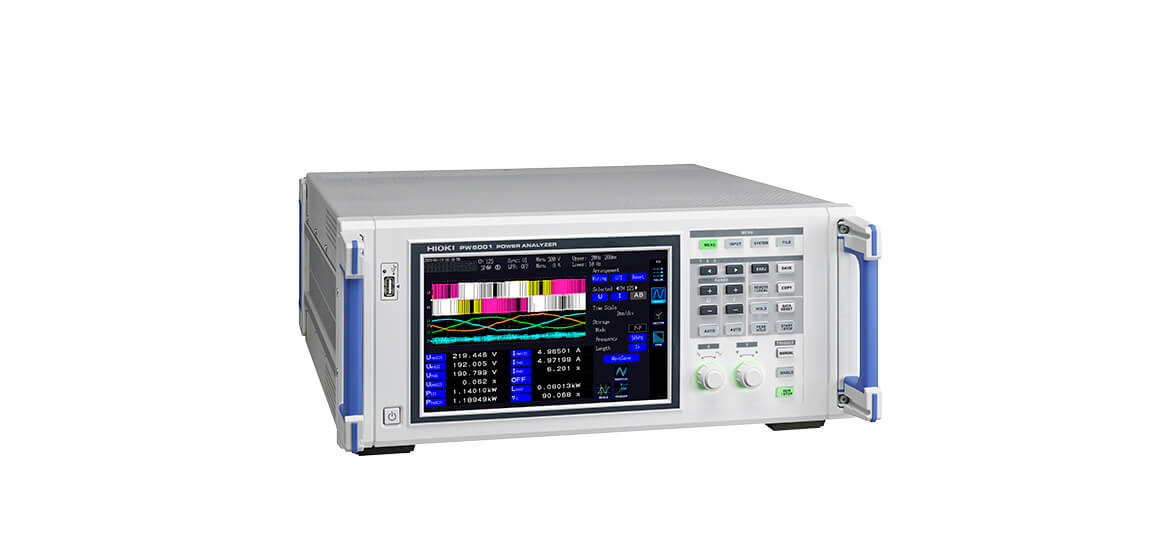

The HIOKI "PW6001" is a power analyzer designed for researchers and engineers who require high-precision power measurement. With a basic accuracy of ±0.05%, a wide frequency range from DC to 2MHz, and support for up to 12 input channels, it is ideal for motor and inverter efficiency testing. Additionally, it features harmonic analysis and real-time calculation functions, enabling in-depth analysis of power conversion systems.
■ Features
- High-precision measurement: Achieves ±0.05% basic accuracy for precise power measurement.
- Wide frequency range: Supports a broad range from DC, 0.1Hz to 2MHz.
- Multi-channel support: Measures multiple power systems with up to 12 input channels.
- Harmonic analysis: Compliant with IEC standards for accurate harmonic analysis.
- Real-time calculation functions: Includes FFT analysis and automatic power conversion efficiency calculations.
- Versatile interfaces: Equipped with LAN, USB, GP-IB, and RS-232C as standard.
■ Specifications
- Basic accuracy: ±0.05%
- Frequency range: DC, 0.1Hz–2MHz
- Maximum input voltage: 1000V
- Maximum input current: 50A (direct input); supports higher currents with sensors.
- Harmonic analysis: Up to the 100th order
- Interfaces: LAN, USB, GP-IB, RS-232C
■ Applications
- Efficiency evaluation of inverters and motors
- Performance measurement of power conversion systems
- Power analysis of solar power generation systems
- Power system evaluation for EVs and HEVs
- Energy consumption analysis of industrial equipment
The HIOKI PW6001 utilizes the latest power measurement technology, making it the ideal power analyzer for professionals seeking high-precision power analysis.
■ For more details, please contact us.
The HIOKI "PW3336" power meter is a high-precision measuring instrument that offers a broad measurement range for AC/DC power measurement. With a basic accuracy of ±0.15% and support for a wide frequency range from DC and 0.1Hz to 100kHz, it can directly measure up to 1000V/65A. Additionally, it can measure even higher currents when used with a current sensor.
■ Features
- High-accuracy measurement: Basic accuracy of ±0.15%, capable of measuring low power factors.
- Wide measurement range: Direct input measurement of AC/DC 1000V/65A.
- Built-in harmonic measurement: Supports THD (Total Harmonic Distortion) analysis.
- Versatile interfaces: Standard equipped with LAN, USB, RS-232C, and GP-IB.
- Compact design: Rack-mount compatible, offering high functionality in a space-saving form.
■ Specifications
- Basic accuracy: ±0.15%
- Frequency range: DC, 0.1Hz–100kHz
- Maximum input voltage: 1000V (direct input)
- Maximum input current: 65A (direct input)
- Harmonic analysis: Up to the 50th order
- Interfaces: LAN, USB, RS-232C, GP-IB
■ Applications
- Inverter and motor testing
- Power analysis of energy-saving equipment
- Evaluation of household appliance power consumption
- Power analysis of solar power generation systems
- Precision power measurement in research and development
The HIOKI PW3336 is the ideal power meter for engineers and researchers who require highly reliable and precise power measurement.
■ For more details, please contact us.
